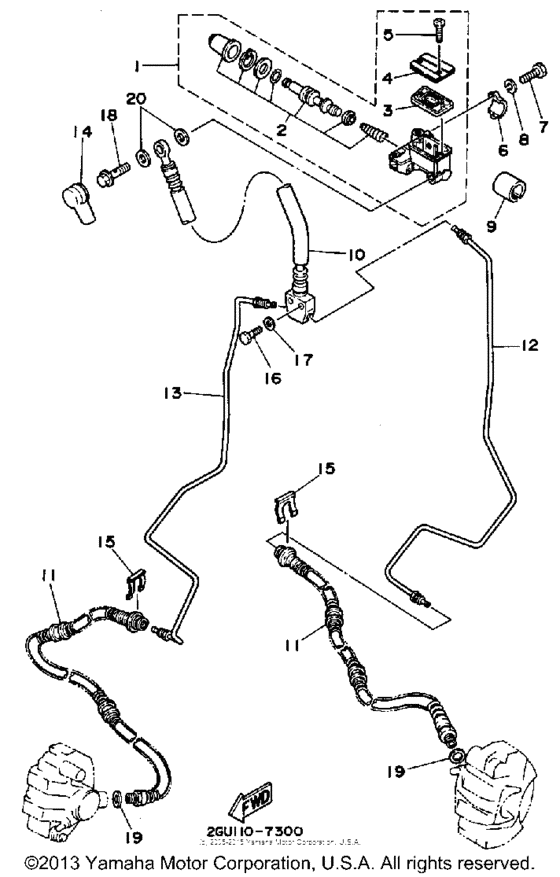

Front master cylinder Diagram Yamaha BANSHEE Banshee
- Model code
- YFZ350W
- Engine Capacity
- 347
- Year
- 1989
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GU-25850-00-00 Master Cyl. Assy |
2GU-25850-00-00 |
from US $226.58 |
||
| replacement | |||||
|
1
|
1
2GU-25870-10-00 Master Cylinder Sub Assy |
2GU-25870-10-00 |
from US $164.94 |
||
|
2
|
2
4H7-W0041-50-00 Cylinder Kit, Master |
4H7-W0041-50-00 |
from US $49.18 |
||
|
3
|
3
4L0-25854-00-00 Gasket, Diaphragm |
4L0-25854-00-00 |
from US $15.58 |
||
|
4
|
4
4H7-25852-00-00 Cap, Reservoir |
4H7-25852-00-00 |
from US $22.10 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
9
|
9
1UY-26259-00-00 Collar |
1UY-26259-00-00 |
from US $1.70 |
||
|
10
|
10
3HN-25872-00-00
Hose, Brake 1
|
3HN-25872-00-00 |
— | ||
| replacements | |||||
|
10
|
10
999-99025-25-00
Brake Hose Set(3Hn)
|
999-99025-25-00 |
— | ||
|
10
|
10
3HN-25872-01-00
Hose, Brake 1
|
3HN-25872-01-00 |
— | ||
|
11
|
11
3HN-25873-01-00
Hose,brake 2
|
3HN-25873-01-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99025-26-00
Brake Hose Set(3Hn)
|
999-99025-26-00 |
— | ||
|
12
|
12
2HR-25871-00-00
Pipe, Brake
|
2HR-25871-00-00 |
— | ||
|
13
|
13
2HR-25882-00-00 Pipe, Brake 2 |
2HR-25882-00-00 |
US $30.02 |
||
|
14
|
14
4L0-25862-00-00 Boot, Master Cylinder |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
14
|
14
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
15
|
15
2GU-25866-00-00 Circlip |
2GU-25866-00-00 |
from US $4.53 |
||
|
16
|
16
2HR-25875-00-00 Holder, Brake Hose 1 |
2HR-25875-00-00 |
from US $12.72 |
||
| replacement | |||||
|
16
|
16
4GB-25875-00-00 Holder, Brake Hose 1 |
4GB-25875-00-00 |
from US $12.72 |
||
|
17
|
17
2HR-25876-00-00 Holder, Brake Hose 2 |
2HR-25876-00-00 |
from US $15.02 |
||
| replacement | |||||
|
17
|
17
4GB-25876-00-00 Holder, Brake Hose 2 |
4GB-25876-00-00 |
from US $15.02 |
||
|
18
|
18
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
18
|
18
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
19
|
19
92901-06700-00 Washer,wave |
92901-06700-00 |
from US $1.26 |
||
| replacement | |||||
|
19
|
19
92907-06700-00 Washer(6Ta) |
92907-06700-00 |
from US $2.13 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
21
|
21
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
22
|
22
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
23
|
23
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
23
|
23
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
24
|
24
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
24
|
24
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
