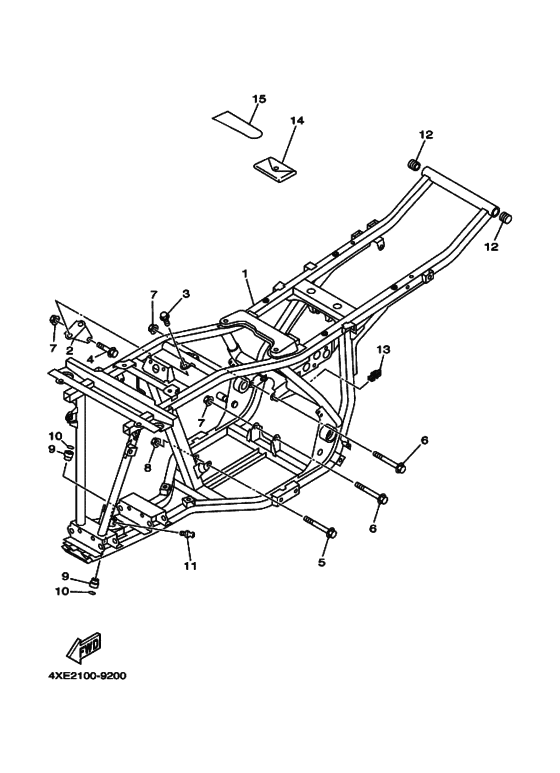

Frame Diagram Yamaha BEAR TRACKER
- Model code
- 4XE3
- Engine Capacity
- 229
- Year
- 1999
- Sales region
- Europe (010)
- Colour
- Dark Grayish Yellow Solid 1 (DNYS1; 0598)
- Color Variant
- C
- 2WD/4WD/AWD
- 2WD
- Model
- Bear Tracker
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XE-F1110-00-00
Frame Comp
|
4XE-F1110-00-00 |
— | ||
|
2
|
2
4XE-F1315-00-00 Stay, Engine 2(YMUS) |
4XE-F1315-00-00 |
US $14.04 |
||
| replacement | |||||
|
2
|
2
4XE-F1315-01-00 Stay, Engine 2(YMUS) |
4XE-F1315-01-00 |
US $13.01 |
||
|
3
|
3
958-1P080-12-00
Bolt, Flange
|
958-1P080-12-00 |
— | ||
| replacement | |||||
|
3
|
3
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
4
|
4
9581P-08055-00 Bolt, Flange |
9581P-08055-00 |
US $2.66 |
||
| replacement | |||||
|
4
|
4
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
5
|
5
90105-08888-00
Bolt, Flange
|
90105-08888-00 |
— | ||
| replacement | |||||
|
5
|
5
90105-088A8-00
Bolt, Flange
|
90105-088A8-00 |
— | ||
|
6
|
6
9581P-08105-00 Bolt, Flange |
9581P-08105-00 |
US $3.38 |
||
| replacement | |||||
|
6
|
6
90105-088A9-00 Bolt, Flange |
90105-088A9-00 |
from US $9.63 |
||
|
7
|
7
9561P-08200-00
Nut, Self-Locking
|
9561P-08200-00 |
— | ||
| replacements | |||||
|
7
|
7
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
7
|
7
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
|
8
|
8
90179-08893-00 Nut, Self-Locking |
90179-08893-00 |
US $5.29 |
||
| replacement | |||||
|
8
|
8
90185-08017-00 Nut, Self-Locking |
90185-08017-00 |
from US $3.83 |
||
|
9
|
9
90381-15040-00 Bush, Solid |
90381-15040-00 |
from US $12.75 |
||
|
10
|
10
93210-15414-00 O-Ring |
93210-15414-00 |
from US $1.35 |
||
| replacement | |||||
|
10
|
10
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.35 |
||
|
11
|
11
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
11
|
11
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
12
|
12
4XE-F1399-00-00 CapCap, tool box (YMUS) |
4XE-F1399-00-00 |
US $1.06 |
||
|
13
|
13
90464-10833-00 Clamp |
90464-10833-00 |
US $1.39 |
||
| replacement | |||||
|
13
|
13
90464-12830-00 Clamp |
90464-12830-00 |
from US $2.02 |
||
|
14
|
14
2XK-28100-00-00 Tool Kit (24W-28100-00) |
2XK-28100-00-00 |
US $45.67 |
||
| replacement | |||||
|
14
|
14
59V-28100-00-00
Tool Kit (24W-28100-00)
|
59V-28100-00-00 |
— | ||
|
15
|
15
1NV-2811A-00-00 Gauge, Air |
1NV-2811A-00-00 |
from US $27.34 |
||
| replacement | |||||
|
15
|
15
1NV-2811A-01-00 Gauge, Air |
1NV-2811A-01-00 |
from US $27.34 |
||
