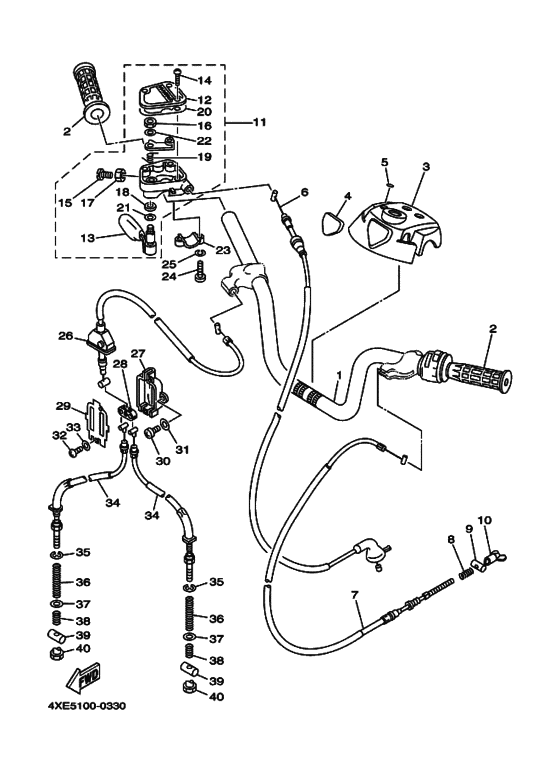

Steering handle & cable Diagram Yamaha BEAR TRACKER
- Model code
- 4XE8
- Engine Capacity
- 229
- Year
- 2000
- Sales region
- Europe (030)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- D
- 2WD/4WD/AWD
- 2WD
- Model
- Bear Tracker
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XE-F6111-00-00 Handlebar(YMUS) |
4XE-F6111-00-00 |
US $222.21 |
||
| replacement | |||||
|
1
|
1
4XE-F6111-10-00 Handlebar(YMUS) |
4XE-F6111-10-00 |
US $222.21 |
||
|
2
|
2
3GB-26241-00-00 Grip |
3GB-26241-00-00 |
from US $14.31 |
||
|
3
|
3
4XE-F6124-10-00 Protector, Handlebar(YMUS) (YMUS) |
4XE-F6124-10-00 |
US $39.02 |
||
|
4
|
4
5FU-F6232-00-00
Emblem 3D
3D; (YMUS) (YMUS) |
5FU-F6232-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
3D; (YMUS) (YMUS) |
999-99999-99-00 |
— | ||
|
5
|
5
5GT-2836B-00-00 Tuning Fork Mark |
5GT-2836B-00-00 |
from US $11.33 |
||
| replacement | |||||
|
5
|
5
5GT-2836B-10-00 Tuning Fork Mark |
5GT-2836B-10-00 |
from US $11.33 |
||
|
6
|
6
4KB-26311-10-00 Cable, Throttle 1 |
4KB-26311-10-00 |
US $61.90 |
||
| replacement | |||||
|
6
|
6
4KB-26311-11-00 Cable, Throttle 1 |
4KB-26311-11-00 |
US $64.66 |
||
|
7
|
7
4XE-26341-00-00 Cable, Brake |
4XE-26341-00-00 |
US $44.84 |
||
|
8
|
8
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
9
|
9
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
10
|
10
20E-26343-00-00 Nut, Adjusting |
20E-26343-00-00 |
from US $11.33 |
||
|
11
|
11
4KB-26250-00-00
Throttle Lever Assy
|
4KB-26250-00-00 |
— | ||
| replacements | |||||
|
11
|
11
4KB-26250-11-00 Throttle Lever Assy |
4KB-26250-11-00 |
from US $103.48 |
||
|
11
|
11
4KB-26250-12-00 Throttle Lever Assy |
4KB-26250-12-00 |
US $142.54 |
||
|
12
|
12
4KB-2628F-00-00 Cap, Gear |
4KB-2628F-00-00 |
from US $19.09 |
||
|
13
|
13
1NV-2625G-01-00 Lever, Throttle |
1NV-2625G-01-00 |
from US $41.66 |
||
|
14
|
14
90149-04278-00 Screw |
90149-04278-00 |
from US $1.34 |
||
|
15
|
15
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
15
|
15
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
16
|
16
95607-05100-00 Nut, U |
95607-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
16
|
16
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
17
|
17
95307-05700-00 Nut |
95307-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
17
|
17
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
18
|
18
93104-09025-00 Oil Seal |
93104-09025-00 |
from US $3.68 |
||
|
19
|
19
1NV-26304-00-00 Spring |
1NV-26304-00-00 |
from US $6.52 |
||
|
20
|
20
4KB-2628G-00-00 Gasket |
4KB-2628G-00-00 |
from US $5.93 |
||
|
21
|
21
1NV-26129-00-00 Washer |
1NV-26129-00-00 |
from US $2.69 |
||
|
22
|
22
1NV-26398-00-00
Washer, Special
|
1NV-26398-00-00 |
— | ||
| replacement | |||||
|
22
|
22
53L-83909-00-00
Washer, Special
|
53L-83909-00-00 |
— | ||
|
23
|
23
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
24
|
24
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
24
|
24
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
25
|
25
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
26
|
26
4BD-26373-01-00 Cable, Brake 4 |
4BD-26373-01-00 |
from US $34.85 |
||
|
27
|
27
52H-26371-00-00 Housing, Brake Link |
52H-26371-00-00 |
from US $30.46 |
||
|
28
|
28
52H-26347-01-00 Joint, Cable |
52H-26347-01-00 |
from US $22.24 |
||
|
29
|
29
52H-2631G-00-00 Plate |
52H-2631G-00-00 |
from US $13.46 |
||
|
30
|
30
98507-03008-00 Screw, Pan Head |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
30
|
30
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
31
|
31
92907-03600-00 Washer(3Sx) |
92907-03600-00 |
from US $1.07 |
||
|
32
|
32
97007-05016-00 Bolt, Hex. Head |
97007-05016-00 |
from US $2.41 |
||
| replacement | |||||
|
32
|
32
97017-05016-00 Bolt, Hex. Head |
97017-05016-00 |
from US $2.41 |
||
|
33
|
33
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
34
|
34
4BD-26361-01-00 Cable, Brake |
4BD-26361-01-00 |
from US $44.49 |
||
|
35
|
35
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.56 |
||
|
36
|
36
90501-123A0-00 Spring, Compression |
90501-123A0-00 |
from US $1.98 |
||
|
37
|
37
90209-06265-00 Washer |
90209-06265-00 |
from US $3.54 |
||
|
38
|
38
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
39
|
39
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
40
|
40
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
