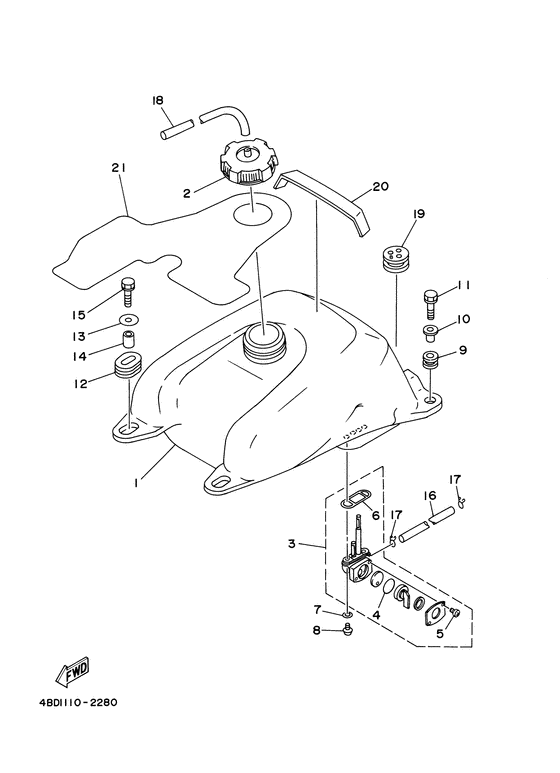

Fuel tank Diagram Yamaha BEAR TRACKER
- Model code
- 4XED
- Engine Capacity
- 229
- Year
- 2001
- Sales region
- France (020)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- 2WD/4WD/AWD
- 2WD
- Model
- Bear Tracker
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4XE-F4110-00-00 Fuel Tank Comp |
4XE-F4110-00-00 |
US $312.53 |
||
| replacement | |||||
|
01
|
01
4XE-F4110-10-00 Fuel Tank Comp |
4XE-F4110-10-00 |
US $312.53 |
||
|
02
|
02
5MV-24610-00-00 Cap Assy |
5MV-24610-00-00 |
from US $58.44 |
||
| replacement | |||||
|
02
|
02
5KM-24610-00-00 Cap Assy |
5KM-24610-00-00 |
from US $41.17 |
||
|
03
|
03
3JN-24500-00-00 Fuel Cock Assy 1 |
3JN-24500-00-00 |
from US $48.68 |
||
| replacement | |||||
|
03
|
03
3JN-24500-10-00 Fuel Cock Assy 1 |
3JN-24500-10-00 |
from US $52.04 |
||
|
04
|
04
3AJ-24534-00-00
Seal, Cock
|
3AJ-24534-00-00 |
— | ||
| replacement | |||||
|
04
|
04
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $1.66 |
||
|
05
|
05
978-01030-08-00
Screw, Pan Head
|
978-01030-08-00 |
— | ||
| replacement | |||||
|
05
|
05
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
06
|
06
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
07
|
07
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
07
|
07
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
08
|
08
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
09
|
09
90480-18290-00 Grommet |
90480-18290-00 |
from US $1.70 |
||
|
10
|
10
90387-066H4-00 Collar |
90387-066H4-00 |
from US $5.81 |
||
|
11
|
11
90119-06831-00 Bolt, With Washer |
90119-06831-00 |
US $5.93 |
||
| replacement | |||||
|
11
|
11
90119-06883-00 Bolt, With Washer |
90119-06883-00 |
US $6.08 |
||
|
12
|
12
90480-01400-00 Grommet |
90480-01400-00 |
from US $4.11 |
||
|
13
|
13
90201-068P9-00 Washer, Plate |
90201-068P9-00 |
US $5.29 |
||
| replacement | |||||
|
13
|
13
90201-06090-00 Washer, Plate |
90201-06090-00 |
from US $1.70 |
||
|
14
|
14
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.70 |
||
|
15
|
15
90119-06831-00 Bolt, With Washer |
90119-06831-00 |
US $5.93 |
||
| replacement | |||||
|
15
|
15
90119-06883-00 Bolt, With Washer |
90119-06883-00 |
US $6.08 |
||
|
16
|
16
4XE-24311-00-00 Pipe, Fuel 1 |
4XE-24311-00-00 |
US $19.58 |
||
|
17
|
17
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
17
|
17
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
17
|
17
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
18
|
18
90445-08809-00 Hose (L500) |
90445-08809-00 |
US $8.51 |
||
|
19
|
19
4BD-24339-00-00 Grommet |
4BD-24339-00-00 |
from US $14.31 |
||
|
20
|
20
4XE-F4181-00-00 Damper, Locating 1 |
4XE-F4181-00-00 |
US $2.90 |
||
|
21
|
21
4XE-F414H-00-00 Damper, Plate 1 |
4XE-F414H-00-00 |
US $29.41 |
||
