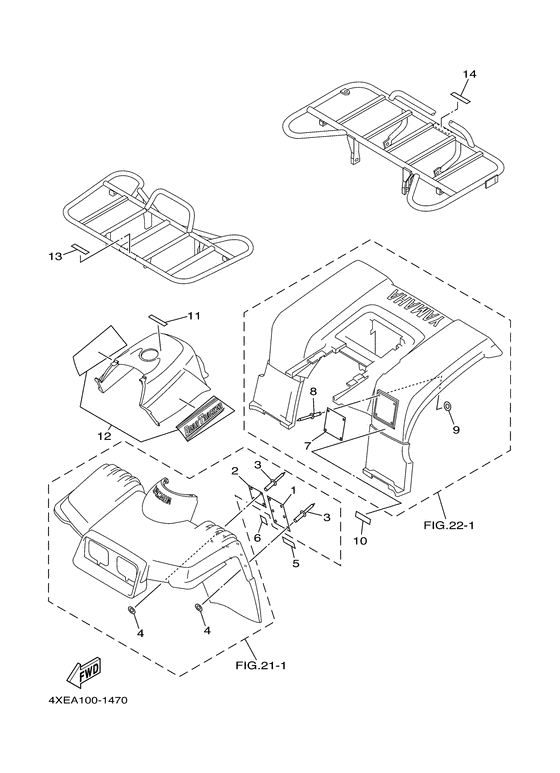

Emblem.label 3 Diagram Yamaha BEAR TRACKER
- Model code
- 4XED
- Engine Capacity
- 229
- Year
- 2001
- Sales region
- England (030)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- 2WD/4WD/AWD
- 2WD
- Model
- Bear Tracker
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4XE-F1568-10-00 Label, Warning |
4XE-F1568-10-00 |
US $10.75 |
||
| replacement | |||||
|
01
|
01
BVG-F1568-10-00 Label, Warning |
BVG-F1568-10-00 |
US $76.90 |
||
|
02
|
02
4XE-F415A-00-00
Label, Warning Age
|
4XE-F415A-00-00 |
— | ||
| replacements | |||||
|
02
|
02
1P0-F816L-00-00 Label, Caution |
1P0-F816L-00-00 |
US $10.66 |
||
|
02
|
02
1P0-F816L-01-00 Label, Warning Age |
1P0-F816L-01-00 |
from US $10.75 |
||
|
03
|
03
4XE-F1539-00-00 Rivet |
4XE-F1539-00-00 |
US $0.65 |
||
| replacements | |||||
|
03
|
03
4XE-F1539-10-00 Rivet |
4XE-F1539-10-00 |
from US $1.84 |
||
|
03
|
03
BLT-F1539-00-00 RIVET |
BLT-F1539-00-00 |
from US $1.66 |
||
|
04
|
04
4XE-F1549-00-00 Washer, Fender Mold |
4XE-F1549-00-00 |
from US $2.32 |
||
|
05
|
05
4XE-F1568-30-00
Label, Warning
In english |
4XE-F1568-30-00 |
— | ||
|
06
|
06
4XE-F155A-00-00
Mark, Ce
|
4XE-F155A-00-00 |
— | ||
|
07
|
07
4XE-F1696-00-00 Label, Caution |
4XE-F1696-00-00 |
US $30.56 |
||
|
08
|
08
4XE-F1539-00-00 Rivet |
4XE-F1539-00-00 |
US $0.65 |
||
| replacements | |||||
|
08
|
08
4XE-F1539-10-00 Rivet |
4XE-F1539-10-00 |
from US $1.84 |
||
|
08
|
08
BLT-F1539-00-00 RIVET |
BLT-F1539-00-00 |
from US $1.66 |
||
|
09
|
09
4XE-F1549-00-00 Washer, Fender Mold |
4XE-F1549-00-00 |
from US $2.32 |
||
|
10
|
10
4XE-F1668-20-00
Label, Tire
|
4XE-F1668-20-00 |
— | ||
|
11
|
11
4XE-F415E-00-00
Label, Caution
|
4XE-F415E-00-00 |
— | ||
|
12
|
12
4XE-F173G-80-00
Emblem Set 1
Ur for pdg |
4XE-F173G-80-00 |
— | ||
| replacement | |||||
|
12
|
12
4XE-F173G-80-KT
element
Ur for pdg |
4XE-F173G-80-KT |
— | ||
|
12
|
12
4XE-F173G-A0-00
Emblem Set 1
Ur for dpbse |
4XE-F173G-A0-00 |
— | ||
|
12
|
12
4XE-F173G-70-00
Emblem Set 1
Ur for rtr |
4XE-F173G-70-00 |
— | ||
|
13
|
13
4XE-F4877-00-00 Label, Caution |
4XE-F4877-00-00 |
US $42.91 |
||
| replacement | |||||
|
13
|
13
4XE-F4877-30-00 Label, Caution |
4XE-F4877-30-00 |
US $41.31 |
||
|
14
|
14
4XE-F4897-00-00
Emblem
|
4XE-F4897-00-00 |
— | ||
