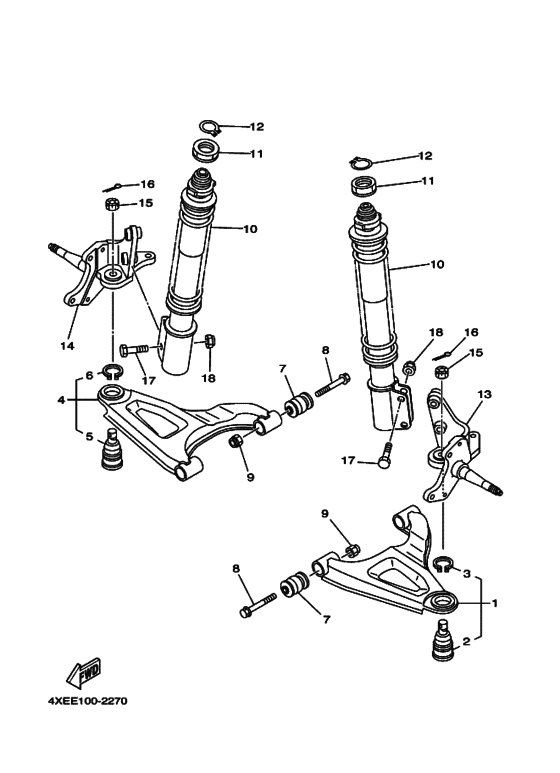

Front suspension & wheel Diagram Yamaha BEAR TRACKER
- Model code
- 4XEF
- Engine Capacity
- 229
- Year
- 2002
- Sales region
- Europe (010)
- Colour
- Pastel Deep Green (PDG; 00K0)
- Color Variant
- B
- 2WD/4WD/AWD
- 2WD
- Model
- Bear Tracker
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XE-F3570-10-00
Front Lower Arm Comp. (Left)
(YMUS) |
4XE-F3570-10-00 |
— | ||
| replacement | |||||
|
1
|
1
4XE-F357A-00-00 Front Lower Arm (Left)(YMUS) |
4XE-F357A-00-00 |
US $69.62 |
||
|
2
|
2
4XE-F3549-00-00 Ball Joint 1(YMUS) |
4XE-F3549-00-00 |
US $101.29 |
||
| replacement | |||||
|
2
|
2
1P0-23549-00-00 Ball Joint 1(YMUS) |
1P0-23549-00-00 |
US $111.62 |
||
|
3
|
3
93410-32826-00 Circlip |
93410-32826-00 |
from US $2.55 |
||
| replacement | |||||
|
3
|
3
934-10320-75-00 Circlip |
934-10320-75-00 |
from US $1.66 |
||
|
4
|
4
4XE-F3580-10-00
Front Lower Arm Comp. (Right)
(YMUS) |
4XE-F3580-10-00 |
— | ||
| replacement | |||||
|
4
|
4
4XE-F358A-00-00 Front Lower Arm (Right)(YMUS) |
4XE-F358A-00-00 |
US $178.69 |
||
|
5
|
5
4XE-F3549-00-00 Ball Joint 1(YMUS) |
4XE-F3549-00-00 |
US $101.29 |
||
| replacement | |||||
|
5
|
5
1P0-23549-00-00 Ball Joint 1(YMUS) |
1P0-23549-00-00 |
US $111.62 |
||
|
6
|
6
93410-32826-00 Circlip |
93410-32826-00 |
from US $2.55 |
||
| replacement | |||||
|
6
|
6
934-10320-75-00 Circlip |
934-10320-75-00 |
from US $1.66 |
||
|
7
|
7
2HR-23526-00-00 Bush |
2HR-23526-00-00 |
from US $13.74 |
||
|
8
|
8
901-05108-90-00
Bolt, Flange
|
901-05108-90-00 |
— | ||
| replacement | |||||
|
8
|
8
90105-10267-00 Bolt, Flange |
90105-10267-00 |
from US $3.83 |
||
|
9
|
9
90185-10844-00 Nut, Self-Locking |
90185-10844-00 |
from US $5.24 |
||
| replacement | |||||
|
9
|
9
90185-10012-00 Nut, Self-Locking |
90185-10012-00 |
from US $2.32 |
||
|
10
|
10
4XE-F3350-10-00 Shock Absorber Assy(YMUS) |
4XE-F3350-10-00 |
US $350.32 |
||
|
11
|
11
90179-35625-00 Nut |
90179-35625-00 |
from US $9.63 |
||
| replacement | |||||
|
11
|
11
90179-35002-00 Nut |
90179-35002-00 |
from US $9.63 |
||
|
12
|
12
93410-32826-00 Circlip |
93410-32826-00 |
from US $2.55 |
||
| replacement | |||||
|
12
|
12
934-10320-75-00 Circlip |
934-10320-75-00 |
from US $1.66 |
||
|
13
|
13
4XE-F3501-10-00 Steering Knuckle Assy (Left) |
4XE-F3501-10-00 |
US $205.94 |
||
| replacements | |||||
|
13
|
13
4XE-F3501-21-00 Steering Knuckle Assy (Left) |
4XE-F3501-21-00 |
US $205.94 |
||
|
13
|
13
4XE-F3501-20-00 Steering Knuckle Assy (Left) |
4XE-F3501-20-00 |
US $219.94 |
||
|
14
|
14
4XE-F3502-10-00 Steering Knuckle Assy (Right) |
4XE-F3502-10-00 |
US $210.98 |
||
| replacement | |||||
|
14
|
14
4XE-F3502-21-00 Steering Knuckle Assy (Right) |
4XE-F3502-21-00 |
US $210.98 |
||
|
15
|
15
901-71128-16-00
Nut, Castle
|
901-71128-16-00 |
— | ||
| replacements | |||||
|
15
|
15
901-71120-01-00 Nut, Castle |
901-71120-01-00 |
from US $1.84 |
||
|
15
|
15
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
16
|
16
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
16
|
16
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
17
|
17
90101-12882-00 Bolt |
90101-12882-00 |
US $4.88 |
||
| replacement | |||||
|
17
|
17
90101-12811-00 Bolt |
90101-12811-00 |
US $9.54 |
||
|
18
|
18
9561P-12100-00 Nut, U |
9561P-12100-00 |
from US $3.01 |
||
| replacements | |||||
|
18
|
18
95612-12100-00 Nut, U |
95612-12100-00 |
from US $2.98 |
||
|
18
|
18
95617-12100-00 Nut, U |
95617-12100-00 |
from US $3.12 |
||
