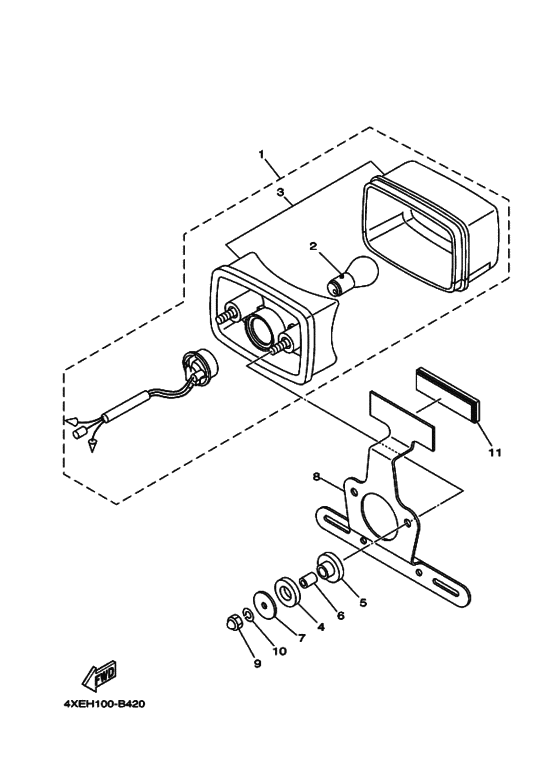

Taillight 2 Diagram Yamaha BEAR TRACKER
- Model code
- 4XEM
- Engine Capacity
- 229
- Year
- 2004
- Sales region
- Europe (010)
- Colour
- Dark Purplish Blue Solid N (DPBSN; 0891)
- Color Variant
- G
- 2WD/4WD/AWD
- 2WD
- Model
- Bear Tracker
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5KM-84710-00-00 Taillight Unit Assy |
5KM-84710-00-00 |
from US $48.08 |
||
| replacement | |||||
|
1
|
1
5KM-84710-01-00 Taillight Unit Assy |
5KM-84710-01-00 |
from US $41.66 |
||
|
2
|
2
1A2-84714-41-00
Bulb
12V-21/5W |
1A2-84714-41-00 |
— | ||
| replacement | |||||
|
2
|
2
1A2-84714-50-00 Bulb (12V-21/5W)12V-21/5W |
1A2-84714-50-00 |
from US $4.96 |
||
|
3
|
3
5KM-8472C-10-00 Lens, Taillight |
5KM-8472C-10-00 |
from US $48.08 |
||
| replacement | |||||
|
3
|
3
5KM-84710-01-00 Taillight Unit Assy |
5KM-84710-01-00 |
from US $41.66 |
||
|
4
|
4
90202-14077-00 Washer, Plate |
90202-14077-00 |
from US $2.13 |
||
|
5
|
5
90480-14088-00 Grommet |
90480-14088-00 |
from US $1.98 |
||
|
6
|
6
90560-07007-00 Spacer |
90560-07007-00 |
from US $2.13 |
||
|
7
|
7
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.56 |
||
|
8
|
8
4XE-H4702-01-00 Bracket, Taillight(YMUS) |
4XE-H4702-01-00 |
US $43.87 |
||
|
9
|
9
95307-06800-00 Nut |
95307-06800-00 |
from US $1.56 |
||
|
10
|
10
9290P-06100-00 Washer(YMUS) |
9290P-06100-00 |
US $0.93 |
||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Spring(YMUS) |
929-95061-00-00 |
from US $0.99 |
||
|
11
|
11
4XE-H5130-00-00 Rear Reflector Assy(YMUS) |
4XE-H5130-00-00 |
US $6.61 |
||
