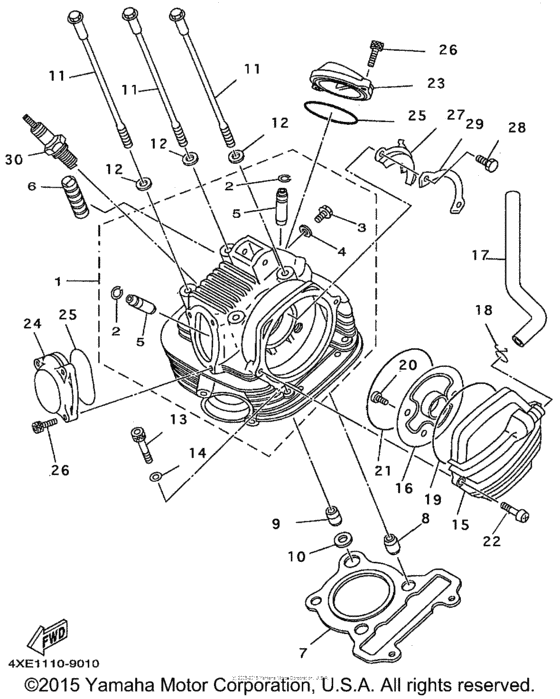

Cylinder head Diagram Yamaha BEAR TRACKER
- Model code
- YFM250XL
- Engine Capacity
- 229
- Year
- 1999
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Bear Tracker
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BD-11101-02-00
Cylinder Head Assy
|
4BD-11101-02-00 |
— | ||
| replacements | |||||
|
1
|
1
4BD-11101-04-00
Cylinder Head Assy
|
4BD-11101-04-00 |
— | ||
|
1
|
1
4BD-11101-03-00
Cylinder Head Assy
|
4BD-11101-03-00 |
— | ||
|
2
|
2
93440-10085-00 Circlip |
93440-10085-00 |
from US $1.70 |
||
|
3
|
3
901-53060-29-00
Screw, Tapping
|
901-53060-29-00 |
— | ||
| replacement | |||||
|
3
|
3
90163-06002-00 Screw, Tapping |
90163-06002-00 |
from US $4.25 |
||
|
4
|
4
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
5
|
5
5H0-11133-11-00 Guide, Intake Valve |
5H0-11133-11-00 |
from US $28.12 |
||
|
6
|
6
15A-11162-00-00 Absorber 2 |
15A-11162-00-00 |
from US $3.32 |
||
|
7
|
7
3GH-11181-00-00 Gasket, Cylinder Head 1 |
3GH-11181-00-00 |
from US $32.02 |
||
|
8
|
8
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
9
|
9
93612-16254-00 Pin, Dowel |
93612-16254-00 |
from US $3.32 |
||
|
10
|
10
90430-12186-00 Gasket |
90430-12186-00 |
from US $9.35 |
||
|
11
|
11
90105-08195-00 Bolt, Flange |
90105-08195-00 |
from US $5.83 |
||
| replacement | |||||
|
11
|
11
90105-08160-00 Bolt, Flange |
90105-08160-00 |
from US $9.21 |
||
|
12
|
12
90201-08609-00 Rondelle, Plate |
90201-08609-00 |
from US $2.12 |
||
| replacement | |||||
|
12
|
12
90201-080L7-00 Washer, Plate |
90201-080L7-00 |
from US $2.69 |
||
|
13
|
13
91317-08045-00 Bolt |
91317-08045-00 |
from US $1.56 |
||
|
14
|
14
90201-087G0-00 Washer, Plate |
90201-087G0-00 |
from US $2.92 |
||
| replacement | |||||
|
14
|
14
90201-086M0-00 Washer, Plate(3Ln) |
90201-086M0-00 |
from US $3.54 |
||
|
15
|
15
4BD-11160-00-00 Breather Assy |
4BD-11160-00-00 |
US $84.24 |
||
| replacement | |||||
|
15
|
15
4BD-11160-01-00 Breather Assy |
4BD-11160-01-00 |
US $84.24 |
||
|
16
|
16
4KB-11165-00-00 Plate, Breather |
4KB-11165-00-00 |
from US $29.16 |
||
|
17
|
17
4XE-11166-00-00 Pipe, Breather 1 |
4XE-11166-00-00 |
US $25.33 |
||
|
18
|
18
90467-14015-00 Clip |
90467-14015-00 |
from US $1.70 |
||
|
19
|
19
93210-92448-00 O-Ring |
93210-92448-00 |
from US $4.53 |
||
|
20
|
20
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.42 |
||
|
21
|
21
93211-05471-00 O-Ring |
93211-05471-00 |
from US $7.07 |
||
|
22
|
22
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
22
|
22
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
23
|
23
3GC-11186-00-00 Cover, Cylinder Head Side 2 |
3GC-11186-00-00 |
from US $24.23 |
||
|
24
|
24
3GC-11187-00-00 Cover, Cylinder Head Side 3 |
3GC-11187-00-00 |
from US $24.23 |
||
|
25
|
25
93210-57634-00 O-Ring |
93210-57634-00 |
from US $4.11 |
||
|
26
|
26
91317-06018-00 Bolt,socket |
91317-06018-00 |
from US $1.56 |
||
|
27
|
27
5H0-1111F-00-00 Plate |
5H0-1111F-00-00 |
from US $10.63 |
||
|
28
|
28
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
| replacement | |||||
|
28
|
28
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
29
|
29
90215-06184-00 Washer, Lock |
90215-06184-00 |
from US $1.84 |
||
|
30
|
30
NGK-DR7EA-00-00 Plug, Spark (Ngk Dr7Ea) |
NGK-DR7EA-00-00 |
US $3.67 |
||
| replacement | |||||
|
30
|
30
DR7-EA000-00-00 Plug, Spark (Ngk Dr7Ea) |
DR7-EA000-00-00 |
US $50.20 |
||
