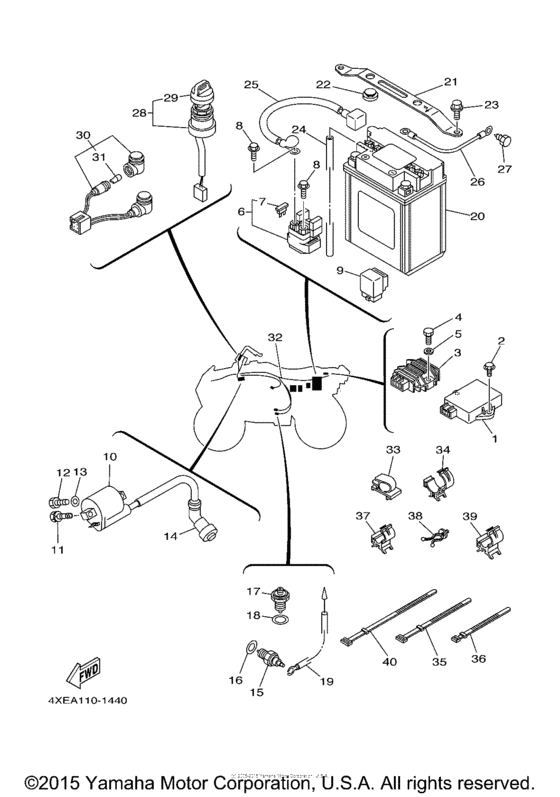

Electrical (1) Diagram Yamaha BEAR TRACKER
- Model code
- YFM250XN
- Engine Capacity
- 229
- Year
- 2001
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Bear Tracker
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XE-85540-00-00 C.d.i. Unit Assy |
4XE-85540-00-00 |
from US $313.62 |
||
|
2
|
2
95807-06016-00 Bolt, Flange |
95807-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
3
|
3
5GT-81960-00-00 Rectifier & Regulator Assy |
5GT-81960-00-00 |
from US $126.97 |
||
|
4
|
4
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
4
|
4
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
5
|
5
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
6
|
6
4XE-81940-12-00 Starter Relay Assy (Rc19-026) |
4XE-81940-12-00 |
from US $74.72 |
||
|
7
|
7
2GH-82151-00-00 Fuse (20A)20A-BL USA |
2GH-82151-00-00 |
from US $2.13 |
||
| replacement | |||||
|
7
|
7
2GV-82151-00-00 Fuse (20A-Bl)20A-BL USA |
2GV-82151-00-00 |
from US $1.34 |
||
|
8
|
8
9502P-06008-00 Bolt,flange |
9502P-06008-00 |
US $5.29 |
||
| replacement | |||||
|
8
|
8
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.42 |
||
|
9
|
9
1RL-81950-92-00 Relay Assy (1Rl-92)1RL-92 USA |
1RL-81950-92-00 |
from US $57.75 |
||
| replacements | |||||
|
9
|
9
12R-81950-01-00 Relay Assy (12R-01)1RL-92 USA |
12R-81950-01-00 |
from US $57.75 |
||
|
9
|
9
12R-81950-02-00 RELAY ASSY1RL-92 USA |
12R-81950-02-00 |
from US $50.92 |
||
|
10
|
10
4KJ-82310-10-00
Ignition Coil Assy
|
4KJ-82310-10-00 |
— | ||
| replacements | |||||
|
10
|
10
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
10
|
10
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
10
|
10
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
10
|
10
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
10
|
10
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
10
|
10
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
11
|
11
90109-06873-00 Bolt |
90109-06873-00 |
US $3.35 |
||
| replacement | |||||
|
11
|
11
90109-06865-00 Bolt |
90109-06865-00 |
US $3.35 |
||
|
12
|
12
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
13
|
13
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
14
|
14
1UY-82370-20-00 Plug Cap Assy |
1UY-82370-20-00 |
from US $19.69 |
||
| replacements | |||||
|
14
|
14
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $23.82 |
||
|
14
|
14
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $19.69 |
||
|
15
|
15
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $18.42 |
||
|
16
|
16
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
17
|
17
4KD-82540-00-00 Neutral Switch Assy |
4KD-82540-00-00 |
from US $28.90 |
||
|
18
|
18
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
19
|
19
4BD-82507-00-00 Wire, Lead |
4BD-82507-00-00 |
from US $7.63 |
||
|
20
|
20
BTY-YB14A-A2-00
Battery Assy (Yb14A-A2)
|
BTY-YB14A-A2-00 |
— | ||
| replacement | |||||
|
20
|
20
YB1-4AA20-00-00
Bat Yb14A-A2 (Cb14A-A2) Yu
|
YB1-4AA20-00-00 |
— | ||
|
21
|
21
4XE-H2128-00-00 Bracket, Battery |
4XE-H2128-00-00 |
US $88.90 |
||
|
22
|
22
128-27114-00-00 Stopper, Main Stand |
128-27114-00-00 |
from US $4.68 |
||
|
23
|
23
95807-06020-00 Bolt, Flange |
95807-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
23
|
23
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
24
|
24
4XE-H2112-00-00
Pipe, Breather
|
4XE-H2112-00-00 |
— | ||
|
25
|
25
4XE-82115-00-00 Wire, Plus Lead |
4XE-82115-00-00 |
US $19.84 |
||
|
26
|
26
4XE-82116-00-00
Wire, Minus Lead
|
4XE-82116-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
9770P-60416-00 Screw, Tapping |
9770P-60416-00 |
US $5.29 |
||
| replacement | |||||
|
27
|
27
97702-60416-00 Screw, Tapping |
97702-60416-00 |
from US $1.07 |
||
|
28
|
28
4BD-82510-11-00 Main Switch Assy |
4BD-82510-11-00 |
from US $74.47 |
||
| replacements | |||||
|
28
|
28
4GB-82510-11-00 Main Switch Assy |
4GB-82510-11-00 |
from US $74.47 |
||
|
28
|
28
4GB-82510-12-00 Main Switch Assy |
4GB-82510-12-00 |
US $72.76 |
||
|
29
|
29
3HN-82579-00-00 Cap, Key |
3HN-82579-00-00 |
from US $5.30 |
||
|
30
|
30
4XE-83530-00-00 Pilot Light Assy |
4XE-83530-00-00 |
US $39.85 |
||
|
31
|
31
5GH-83516-00-00 Bulb (12V-1.7W)12V-1.7W T6.5 USA |
5GH-83516-00-00 |
from US $4.53 |
||
| replacement | |||||
|
31
|
31
3FV-83517-00-00 Bulb (12V-1.7W)12V-1.7W T6.5 USA |
3FV-83517-00-00 |
from US $3.32 |
||
|
32
|
32
4XE-82590-20-00
Wire Harness Assy
|
4XE-82590-20-00 |
— | ||
|
33
|
33
90464-13831-00
Clamp
|
90464-13831-00 |
— | ||
|
34
|
34
90464-20835-00 Clamp |
90464-20835-00 |
US $2.72 |
||
|
35
|
35
90464-48837-00 Clamp |
90464-48837-00 |
US $3.29 |
||
| replacement | |||||
|
35
|
35
90464-48800-00 Clamp |
90464-48800-00 |
from US $5.24 |
||
|
36
|
36
3TB-83936-00-00 B53 Band, Switch Cord J |
3TB-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
36
|
36
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
37
|
37
90464-08834-00 Clamp |
90464-08834-00 |
US $1.91 |
||
| replacement | |||||
|
37
|
37
90464-10842-00 Clamp |
90464-10842-00 |
US $1.78 |
||
|
38
|
38
90464-12836-00 Clamp |
90464-12836-00 |
from US $1.22 |
||
|
39
|
39
90464-10842-00 Clamp |
90464-10842-00 |
US $1.78 |
||
|
40
|
40
90464-40825-00 Clamp |
90464-40825-00 |
from US $1.84 |
||
|
41
|
41
90890-56001-00 Blank Key (A-Type) |
90890-56001-00 |
from US $4 |
||
|
42
|
42
90890-56002-00 Blank Key (B-Type) |
90890-56002-00 |
from US $3.78 |
||
