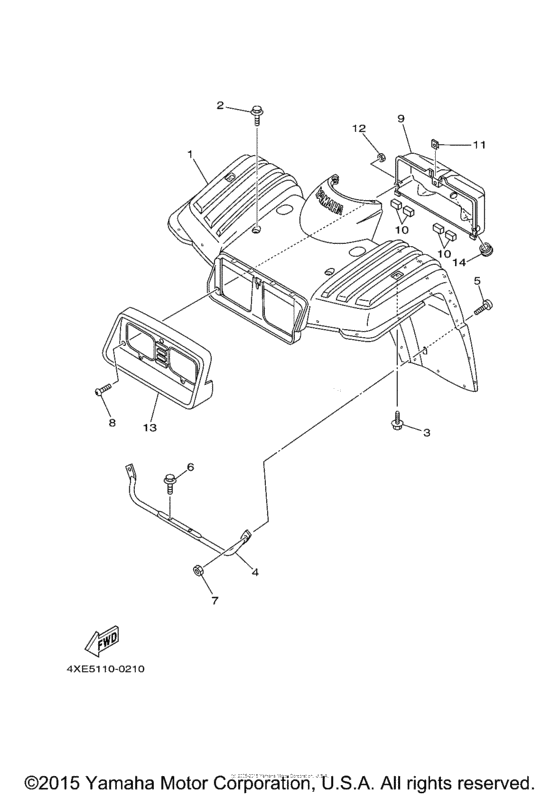

Front fender Diagram Yamaha BEAR TRACKER
- Model code
- YFM250XN
- Engine Capacity
- 229
- Year
- 2001
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Bear Tracker
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XE-F1500-00-00 Front Fender Assyfor Color ROMANTIQUE ROUGE RTR / 00TR |
4XE-F1500-00-00 |
US $403.54 |
||
|
1
|
1
4XE-F1500-10-00 Front Fender Assyfor Color PASTEL DEEP GREEN PDG / 00K0 |
4XE-F1500-10-00 |
US $431.57 |
||
|
1
|
1
4XE-F1500-20-00 Front Fender Assyfor Color DARK GRAYISH YELLOW SOLID 1 DNYS1 / 0598 |
4XE-F1500-20-00 |
US $307.03 |
||
|
2
|
2
90119-06060-00 Bolt, With Washer |
90119-06060-00 |
US $1.35 |
||
| replacement | |||||
|
2
|
2
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.34 |
||
|
3
|
3
90119-06060-00 Bolt, With Washer |
90119-06060-00 |
US $1.35 |
||
| replacement | |||||
|
3
|
3
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.34 |
||
|
4
|
4
4XE-F1513-00-00
Stay, Fender 1
USA |
4XE-F1513-00-00 |
— | ||
|
5
|
5
90110-06836-00 Bolt,hex. Socket Button |
90110-06836-00 |
US $2.56 |
||
| replacement | |||||
|
5
|
5
901-11068-14-00 Bolt, Hex. Socket Button |
901-11068-14-00 |
from US $1.42 |
||
|
6
|
6
9581P-08016-00 Bolt, Flange |
9581P-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
6
|
6
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
6
|
6
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
7
|
7
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
8
|
8
90154-05006-00 Screw, Binding |
90154-05006-00 |
from US $3.12 |
||
|
9
|
9
4XE-H4111-00-00 Body, Headlight |
4XE-H4111-00-00 |
US $18.49 |
||
|
10
|
10
4XE-F1717-00-00 Damper |
4XE-F1717-00-00 |
US $1.98 |
||
|
11
|
11
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
11
|
11
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
12
|
12
95304-05600-00 Nut |
95304-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
13
|
13
4XE-F3391-00-00
Panel, Front
|
4XE-F3391-00-00 |
— | ||
|
14
|
14
90480-25461-00 Grommet |
90480-25461-00 |
US $8.44 |
||
