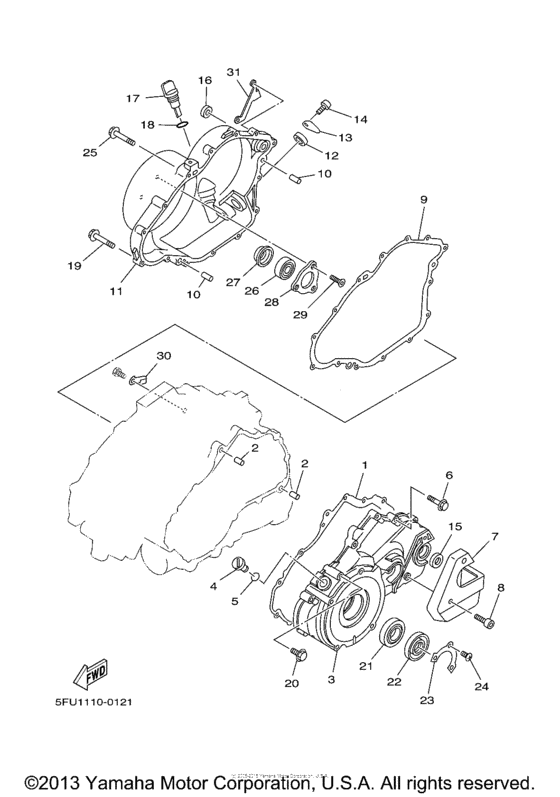

Crankcase cover (1) Diagram Yamaha BIG BEAR 400 Big Bear 400 2WD
- Model code
- YFM400N
- Engine Capacity
- 386
- Year
- 2001
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Big Bear 400 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KB-15451-01-00 Gasket, Crankcase Cover 1USA |
4KB-15451-01-00 |
from US $16.15 |
||
|
2
|
2
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
3
|
3
4WU-15411-01-00 Cover, Crankcase 1USA |
4WU-15411-01-00 |
US $390.06 |
||
|
4
|
4
90340-14117-00 Plug, Straight Screw |
90340-14117-00 |
from US $4.11 |
||
|
5
|
5
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.70 |
||
|
6
|
6
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.34 |
||
|
7
|
7
4KB-15421-00-00 Cover, Crankcase 2USA |
4KB-15421-00-00 |
from US $37.44 |
||
|
8
|
8
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
9
|
9
4KB-15462-00-00 Gasket, Crankcase Cover 3USA |
4KB-15462-00-00 |
from US $17.99 |
||
|
10
|
10
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
11
|
11
4WU-15431-00-00 Cover, Crankcase 3USA |
4WU-15431-00-00 |
US $433.21 |
||
|
12
|
12
90338-28221-00 Plug |
90338-28221-00 |
from US $4.11 |
||
|
13
|
13
4KB-15492-00-00 Cover |
4KB-15492-00-00 |
US $5.06 |
||
|
14
|
14
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
|
15
|
15
93102-14209-00 Oil Seal |
93102-14209-00 |
from US $3.32 |
||
|
16
|
16
93102-12106-00 Oil Seal (Sd 12-22-5 Hs)12-22-5 HS USA |
93102-12106-00 |
from US $2.98 |
||
| replacement | |||||
|
16
|
16
931-02123-21-00 Oil Seal12-22-5 HS USA |
931-02123-21-00 |
from US $4.53 |
||
|
17
|
17
4KB-15362-00-00 Plug, Oil Level |
4KB-15362-00-00 |
from US $24.09 |
||
|
18
|
18
932-10195-22-00 O-Ring |
932-10195-22-00 |
from US $1.84 |
||
|
19
|
19
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.34 |
||
|
20
|
20
950-27060-50-00
Bolt, Flange
|
950-27060-50-00 |
— | ||
| replacement | |||||
|
20
|
20
90105-06798-00 Bolt, Flange |
90105-06798-00 |
from US $3.54 |
||
|
21
|
21
93306-07801-00 Bearing |
93306-07801-00 |
from US $19.84 |
||
|
22
|
22
931-02284-76-00 Oil Seal |
931-02284-76-00 |
from US $13.24 |
||
|
23
|
23
1UY-15719-00-00 Washer, Thrust |
1UY-15719-00-00 |
from US $5.24 |
||
|
24
|
24
90151-05023-00 Screw, Countersunk |
90151-05023-00 |
from US $2.13 |
||
|
25
|
25
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.28 |
||
|
26
|
26
93306-20335-00 Bearing |
93306-20335-00 |
from US $13.24 |
||
|
27
|
27
93101-17113-00 Oil Seal |
93101-17113-00 |
from US $7.51 |
||
|
28
|
28
4SH-15381-00-00 Plate, Bearing Cover |
4SH-15381-00-00 |
from US $11.66 |
||
|
29
|
29
90151-06025-00 Screw, Countersunk |
90151-06025-00 |
from US $1.98 |
||
|
30
|
30
90465-08377-00 Clamp |
90465-08377-00 |
from US $3.85 |
||
|
31
|
31
4KB-18128-00-00 Bracket |
4KB-18128-00-00 |
from US $10.78 |
||
