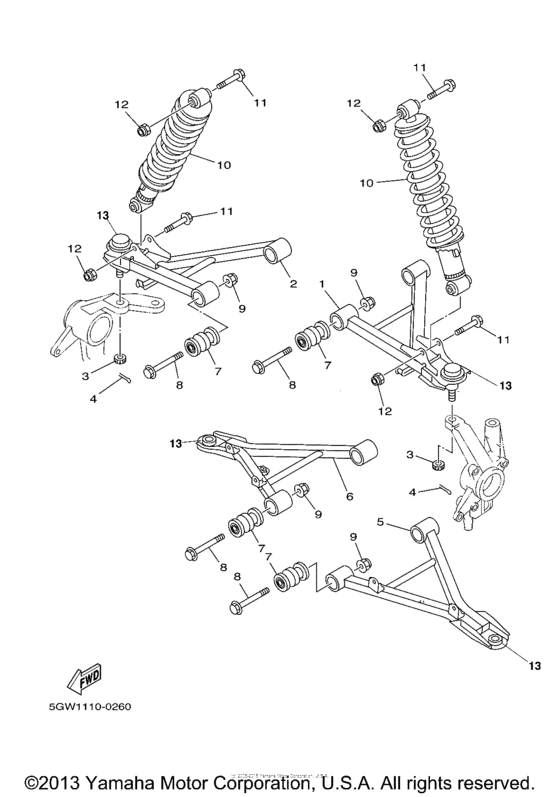

Front suspension wheel Diagram Yamaha BIG BEAR 400 Big Bear 400 2WD
- Model code
- YFM400N
- Engine Capacity
- 386
- Year
- 2001
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Big Bear 400 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FU-F3540-00-00 Front Upper Arm Comp. (Left) |
5FU-F3540-00-00 |
US $228 |
||
|
2
|
2
5FU-F3550-00-00 Front Upper Arm Comp. (Right) |
5FU-F3550-00-00 |
US $198.56 |
||
|
3
|
3
901-71128-16-00
Nut, Castle
|
901-71128-16-00 |
— | ||
| replacements | |||||
|
3
|
3
901-71120-01-00 Nut, Castle |
901-71120-01-00 |
from US $1.84 |
||
|
3
|
3
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
4
|
4
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
4
|
4
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
5
|
5
5FU-F357A-00-00
Arm, Front Lower Lh
|
5FU-F357A-00-00 |
— | ||
|
6
|
6
5FU-F358A-00-00
Arm, Front Lower Rh
|
5FU-F358A-00-00 |
— | ||
|
7
|
7
2HR-23526-00-00 Bush |
2HR-23526-00-00 |
from US $13.74 |
||
|
8
|
8
901-05108-90-00
Bolt, Flange
|
901-05108-90-00 |
— | ||
| replacement | |||||
|
8
|
8
90105-10267-00 Bolt, Flange |
90105-10267-00 |
from US $3.83 |
||
|
9
|
9
90185-10844-00 Nut, Self-Locking |
90185-10844-00 |
from US $5.24 |
||
| replacement | |||||
|
9
|
9
90185-10012-00 Nut, Self-Locking |
90185-10012-00 |
from US $2.32 |
||
|
10
|
10
5FU-F3350-10-00 Shock Absorber Assy |
5FU-F3350-10-00 |
US $268.49 |
||
|
11
|
11
90105-108B1-00 Bolt, Flange |
90105-108B1-00 |
US $3.51 |
||
| replacement | |||||
|
11
|
11
90105-10841-00 Bolt, Flange |
90105-10841-00 |
from US $5.58 |
||
|
12
|
12
90185-10844-00 Nut, Self-Locking |
90185-10844-00 |
from US $5.24 |
||
| replacement | |||||
|
12
|
12
90185-10012-00 Nut, Self-Locking |
90185-10012-00 |
from US $2.32 |
||
|
13
|
13
5FU-F3549-00-00
Ball Joint 1
|
5FU-F3549-00-00 |
— | ||
| replacement | |||||
|
13
|
13
37S-23549-01-00 Ball Joint 1 |
37S-23549-01-00 |
from US $60.79 |
||
