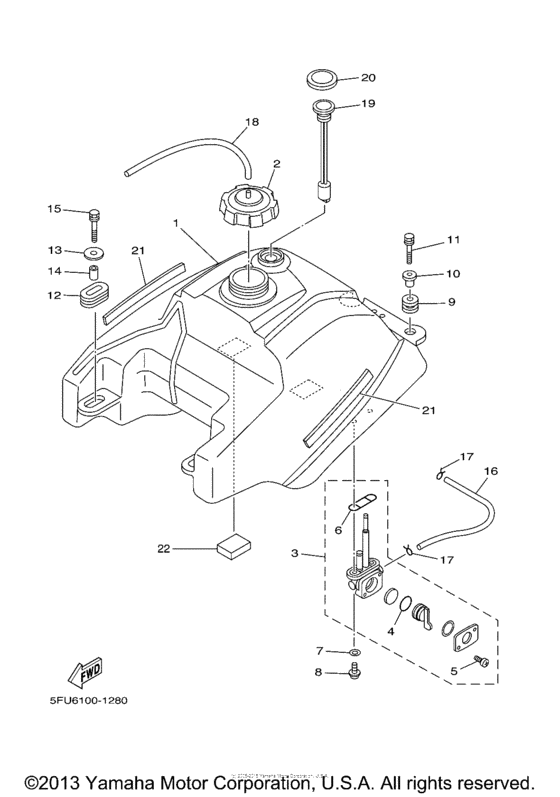

Fuel tank Diagram Yamaha BIG BEAR 400 Big Bear 400 2WD
- Model code
- YFM400N
- Engine Capacity
- 386
- Year
- 2001
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Big Bear 400 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FU-F4110-00-00 Fuel Tank Comp |
5FU-F4110-00-00 |
US $948.06 |
||
| replacements | |||||
|
1
|
1
5FU-F4110-01-00 Fuel Tank Comp |
5FU-F4110-01-00 |
US $948.06 |
||
|
1
|
1
5FU-F4110-11-00 Fuel Tank Comp |
5FU-F4110-11-00 |
US $948.06 |
||
|
2
|
2
5MV-24610-00-00 Cap Assy |
5MV-24610-00-00 |
from US $58.44 |
||
| replacement | |||||
|
2
|
2
5KM-24610-00-00 Cap Assy |
5KM-24610-00-00 |
from US $41.17 |
||
|
3
|
3
3JN-24500-00-00 Fuel Cock Assy 1USA |
3JN-24500-00-00 |
from US $48.68 |
||
| replacement | |||||
|
3
|
3
3JN-24500-10-00 Fuel Cock Assy 1USA |
3JN-24500-10-00 |
from US $52.04 |
||
|
4
|
4
3AJ-24534-00-00
Seal, Cock
|
3AJ-24534-00-00 |
— | ||
| replacement | |||||
|
4
|
4
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $1.66 |
||
|
5
|
5
978-01030-08-00
Screw, Pan Head
|
978-01030-08-00 |
— | ||
| replacement | |||||
|
5
|
5
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
6
|
6
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
7
|
7
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
7
|
7
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
8
|
8
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
9
|
9
90480-18290-00 Grommet |
90480-18290-00 |
from US $1.70 |
||
|
10
|
10
90387-066J1-00 Collar |
90387-066J1-00 |
from US $4.53 |
||
|
11
|
11
90119-06831-00 Bolt, With Washer |
90119-06831-00 |
US $5.93 |
||
| replacement | |||||
|
11
|
11
90119-06883-00 Bolt, With Washer |
90119-06883-00 |
US $6.08 |
||
|
12
|
12
90480-01400-00 Grommet |
90480-01400-00 |
from US $4.11 |
||
|
13
|
13
90201-068P9-00 Washer, Plate |
90201-068P9-00 |
US $5.29 |
||
| replacement | |||||
|
13
|
13
90201-06090-00 Washer, Plate |
90201-06090-00 |
from US $1.70 |
||
|
14
|
14
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.70 |
||
|
15
|
15
90119-06831-00 Bolt, With Washer |
90119-06831-00 |
US $5.93 |
||
| replacement | |||||
|
15
|
15
90119-06883-00 Bolt, With Washer |
90119-06883-00 |
US $6.08 |
||
|
16
|
16
904-45118-C6-00
Hose (L170)
|
904-45118-C6-00 |
— | ||
|
17
|
17
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
17
|
17
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
17
|
17
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
18
|
18
90445-088C5-00 Hose (L400) |
90445-088C5-00 |
from US $7.24 |
||
|
19
|
19
4SH-24260-00-00 Fuel Meter Assy |
4SH-24260-00-00 |
from US $56.51 |
||
| replacement | |||||
|
19
|
19
4SH-24260-11-00 Fuel Meter Assy |
4SH-24260-11-00 |
from US $59.75 |
||
|
20
|
20
4SH-24261-00-00 Housing, Fuel Meter |
4SH-24261-00-00 |
from US $11.76 |
||
|
21
|
21
5FU-F4181-00-00 Damper, Locating 1USA |
5FU-F4181-00-00 |
US $33.79 |
||
|
22
|
22
5FU-F414J-00-00 Damper, Plate 2USA |
5FU-F414J-00-00 |
US $54.97 |
||
