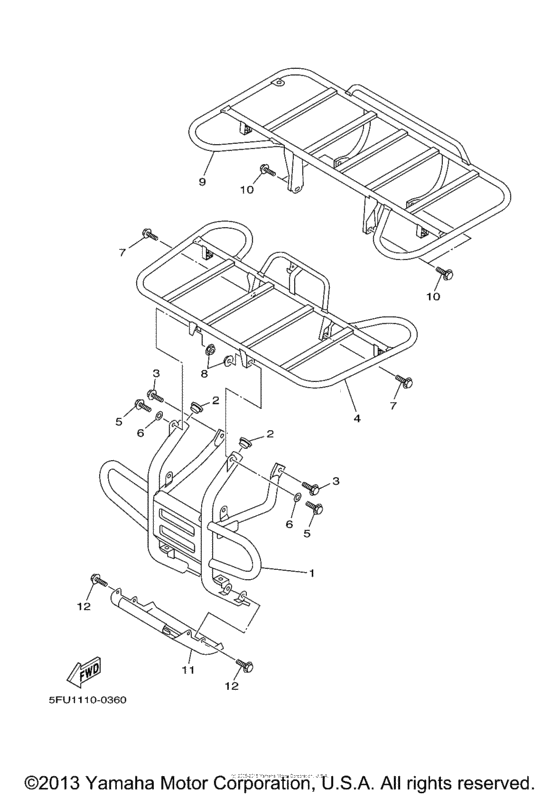

Guard Diagram Yamaha BIG BEAR 400 Big Bear 400 2WD
- Model code
- YFM400N
- Engine Capacity
- 386
- Year
- 2001
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Big Bear 400 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FU-F845N-00-00
Bar, Carry Front
|
5FU-F845N-00-00 |
— | ||
|
2
|
2
5FU-F8415-00-00 PlugUSA |
5FU-F8415-00-00 |
US $1.31 |
||
| replacement | |||||
|
2
|
2
903-38268-03-00 PlugUSA |
903-38268-03-00 |
US $2 |
||
|
3
|
3
9581P-08016-00 Bolt, Flange |
9581P-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
3
|
3
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
3
|
3
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
4
|
4
5FU-F4841-00-00 Carrier, Front |
5FU-F4841-00-00 |
US $234.77 |
||
|
5
|
5
9582P-06016-00 Bolt, Flange |
9582P-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
6
|
6
90201-068R3-00 Washer, Plate |
90201-068R3-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
90201-06078-00 Washer, Plate |
90201-06078-00 |
from US $1.70 |
||
|
7
|
7
9581P-08016-00 Bolt, Flange |
9581P-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
7
|
7
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
7
|
7
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
8
|
8
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
9
|
9
5FU-F4842-00-00
Carrier, Rear
|
5FU-F4842-00-00 |
— | ||
|
10
|
10
9581P-08016-00 Bolt, Flange |
9581P-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
10
|
10
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
10
|
10
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
11
|
11
5FU-F842M-00-00
Cover 1
USA |
5FU-F842M-00-00 |
— | ||
|
12
|
12
90119-06079-00 Bolt, With Washer |
90119-06079-00 |
from US $1.56 |
||
