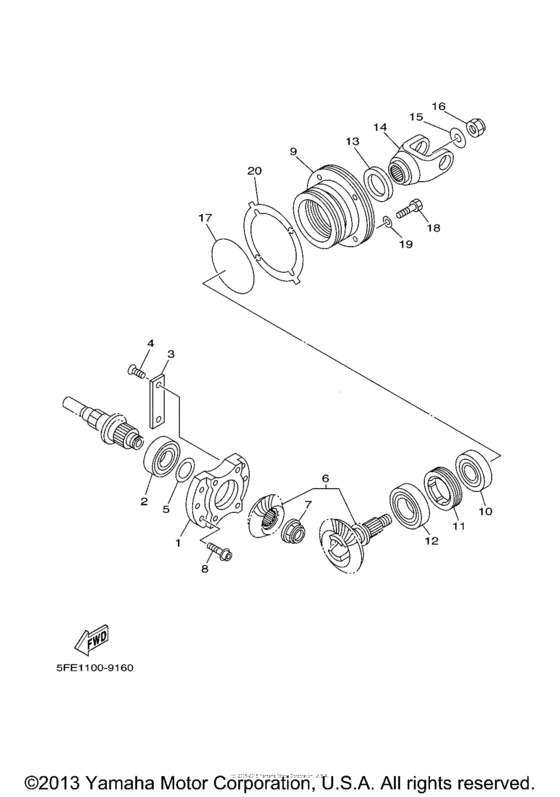

Middle drive gear Diagram Yamaha BIG BEAR 400 Big Bear 400 2WD
- Model code
- YFM400N
- Engine Capacity
- 386
- Year
- 2001
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Big Bear 400 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KB-17521-00-00 Housing, Bearing |
4KB-17521-00-00 |
from US $137.86 |
||
|
2
|
2
93306-20636-00 Bearing |
93306-20636-00 |
from US $28.05 |
||
|
3
|
3
11H-15383-01-00 Plate, Bearing Cover |
11H-15383-01-00 |
from US $8.26 |
||
| replacement | |||||
|
3
|
3
11H-15383-02-00 Plate, Bearing Cover |
11H-15383-02-00 |
from US $9.35 |
||
|
4
|
4
90149-08152-00 Screw |
90149-08152-00 |
from US $1.70 |
||
| replacement | |||||
|
4
|
4
90149-08013-00 Screw |
90149-08013-00 |
from US $1.34 |
||
|
5
|
5
52G-17531-41-00 Shim, Pinion (0.4T)0.4T UR USA |
52G-17531-41-00 |
from US $2.98 |
||
|
5
|
5
52G-17531-01-00 Shim, Pinion (0.1T)0.1T UR USA |
52G-17531-01-00 |
from US $2.68 |
||
|
5
|
5
52G-17531-11-00 Shim, Pinion (0.15T)0.15T UR USA |
52G-17531-11-00 |
from US $2.68 |
||
|
5
|
5
52G-17531-21-00 Shim, Pinion (0.2T)0.2T UR USA |
52G-17531-21-00 |
from US $2.98 |
||
|
5
|
5
52G-17531-51-00 Shim, Pinion (0.5T)0.5T UR USA |
52G-17531-51-00 |
from US $2.98 |
||
|
5
|
5
52G-17531-31-00 Shim, Pinion (0.3T)0.3T UR USA |
52G-17531-31-00 |
from US $2.98 |
||
|
6
|
6
4KB-Y1754-00-00 Pinion Set |
4KB-Y1754-00-00 |
from US $320.53 |
||
| replacement | |||||
|
6
|
6
4KB-17530-00-00 Pinion Set |
4KB-17530-00-00 |
from US $296.89 |
||
|
7
|
7
90179-22526-00 Nut |
90179-22526-00 |
from US $22 |
||
| replacements | |||||
|
7
|
7
90179-22015-00 Nut |
90179-22015-00 |
from US $24.37 |
||
|
7
|
7
901-79220-05-00 Nut |
901-79220-05-00 |
from US $21.16 |
||
|
8
|
8
90109-082A1-00 Bolt |
90109-082A1-00 |
from US $4.11 |
||
|
9
|
9
4KB-17551-00-00 Housing, Bearing |
4KB-17551-00-00 |
from US $113.29 |
||
|
10
|
10
933-06305-60-00 Bearing(3Rr) |
933-06305-60-00 |
from US $59.18 |
||
|
11
|
11
90179-65305-00 Nut |
90179-65305-00 |
from US $22.81 |
||
|
12
|
12
93306-20712-00 Bearing (8U9) |
93306-20712-00 |
from US $37.70 |
||
|
13
|
13
93101-35097-00 Oil Seal |
93101-35097-00 |
from US $6.96 |
||
|
14
|
14
2HR-17556-01-00 Yoke, Joint |
2HR-17556-01-00 |
from US $146.45 |
||
|
15
|
15
90201-14633-00 Washer, Plate |
90201-14633-00 |
from US $7.65 |
||
|
16
|
16
90185-14070-00 Nut, Self-Locking (1J7) |
90185-14070-00 |
from US $9.49 |
||
|
17
|
17
932-10785-44-00 O-Ring |
932-10785-44-00 |
from US $5.64 |
||
|
18
|
18
97027-08030-00 Bolt |
97027-08030-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
19
|
19
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.21 |
||
|
20
|
20
4KB-17531-00-00 Shim, Pinion0.10T UR USA |
4KB-17531-00-00 |
from US $9.78 |
||
|
20
|
20
4KB-17531-10-00 Shim, Pinion0.15T UR USA |
4KB-17531-10-00 |
from US $9.78 |
||
|
20
|
20
4KB-17531-60-00 Shim, Pinion0.60T UR USA |
4KB-17531-60-00 |
from US $9.78 |
||
|
20
|
20
4KB-17531-50-00 Shim, Pinion0.50T UR USA |
4KB-17531-50-00 |
from US $9.78 |
||
|
20
|
20
4KB-17531-40-00 Shim, Pinion0.40T UR USA |
4KB-17531-40-00 |
from US $9.78 |
||
|
20
|
20
4KB-17531-30-00 Shim, Pinion0.30T UR USA |
4KB-17531-30-00 |
from US $9.78 |
||
|
20
|
20
4KB-17531-20-00 Shim, Pinion0.20T UR USA |
4KB-17531-20-00 |
from US $9.78 |
||
