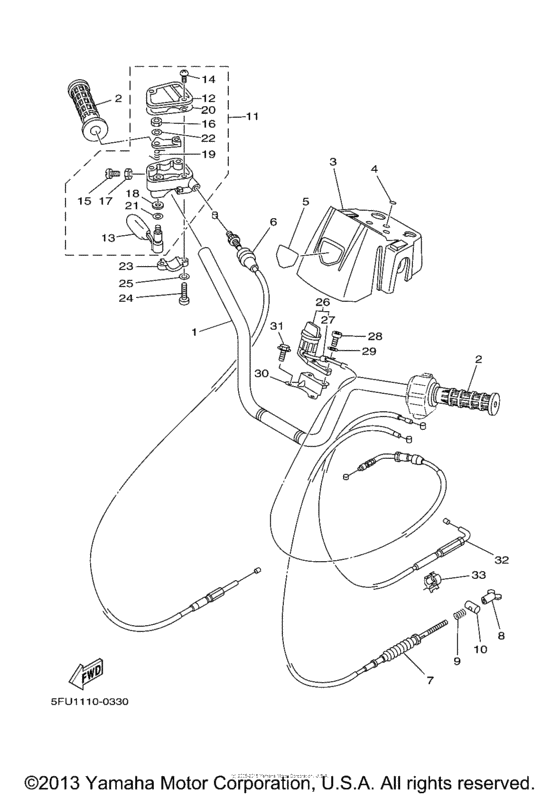

Steering handle & cable Diagram Yamaha BIG BEAR 400 Big Bear 400 2WD
- Model code
- YFM400N
- Engine Capacity
- 386
- Year
- 2001
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Big Bear 400 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FU-F6111-00-00 Handlebar |
5FU-F6111-00-00 |
US $56.38 |
||
| replacements | |||||
|
1
|
1
5FU-F6111-10-00
Handlebar
|
5FU-F6111-10-00 |
— | ||
|
1
|
1
5FU-F6111-12-00 Handlebar |
5FU-F6111-12-00 |
from US $66.13 |
||
|
2
|
2
3GB-26241-00-00 Grip |
3GB-26241-00-00 |
from US $14.31 |
||
|
3
|
3
5FU-F6124-00-00
Protector,handlebar
|
5FU-F6124-00-00 |
— | ||
| replacement | |||||
|
3
|
3
5FU-F6124-01-00
PLUG
|
5FU-F6124-01-00 |
— | ||
|
4
|
4
5GT-2836B-00-00 Tuning Fork Mark |
5GT-2836B-00-00 |
from US $11.33 |
||
| replacement | |||||
|
4
|
4
5GT-2836B-10-00 Tuning Fork Mark |
5GT-2836B-10-00 |
from US $11.33 |
||
|
5
|
5
5FU-F6232-00-00
Emblem 3D
3D USA |
5FU-F6232-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
3D USA |
999-99999-99-00 |
— | ||
|
6
|
6
5FU-26311-00-00 Cable, Throttle 1USA |
5FU-26311-00-00 |
US $25.45 |
||
| replacement | |||||
|
6
|
6
5FU-26311-01-00 Cable, Throttle 1USA |
5FU-26311-01-00 |
US $42.14 |
||
|
7
|
7
5FU-26341-00-00 Cable, Brake |
5FU-26341-00-00 |
from US $42.69 |
||
|
8
|
8
20E-26343-00-00 Nut, Adjusting |
20E-26343-00-00 |
from US $11.33 |
||
|
9
|
9
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
10
|
10
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
11
|
11
4KB-26250-00-00
Throttle Lever Assy
|
4KB-26250-00-00 |
— | ||
| replacements | |||||
|
11
|
11
4KB-26250-11-00 Throttle Lever Assy |
4KB-26250-11-00 |
from US $103.48 |
||
|
11
|
11
4KB-26250-12-00 Throttle Lever Assy |
4KB-26250-12-00 |
US $142.54 |
||
|
12
|
12
4KB-2628F-00-00 Cap, Gear |
4KB-2628F-00-00 |
from US $19.09 |
||
|
13
|
13
1NV-2625G-01-00 Lever, Throttle |
1NV-2625G-01-00 |
from US $41.66 |
||
|
14
|
14
90149-04278-00 Screw |
90149-04278-00 |
from US $1.34 |
||
|
15
|
15
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
15
|
15
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
16
|
16
95607-05100-00 Nut, U |
95607-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
16
|
16
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
17
|
17
95307-05700-00 Nut |
95307-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
17
|
17
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
18
|
18
93104-09025-00 Oil Seal |
93104-09025-00 |
from US $3.68 |
||
|
19
|
19
1NV-26304-00-00 Spring |
1NV-26304-00-00 |
from US $6.52 |
||
|
20
|
20
4KB-2628G-00-00 Gasket |
4KB-2628G-00-00 |
from US $5.93 |
||
|
21
|
21
1NV-26129-00-00 Washer |
1NV-26129-00-00 |
from US $2.69 |
||
|
22
|
22
1NV-26398-00-00
Washer, Special
|
1NV-26398-00-00 |
— | ||
| replacement | |||||
|
22
|
22
53L-83909-00-00
Washer, Special
|
53L-83909-00-00 |
— | ||
|
23
|
23
4V4-82913-00-00 Holder, Lever Lower 1USA |
4V4-82913-00-00 |
from US $17 |
||
|
24
|
24
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
24
|
24
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
25
|
25
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
26
|
26
4KB-26150-01-00 Rev. Lever Assy |
4KB-26150-01-00 |
from US $115.96 |
||
| replacement | |||||
|
26
|
26
4KB-26150-10-00 Rev. Lever Assy |
4KB-26150-10-00 |
from US $132.08 |
||
|
27
|
27
4KB-2637E-02-00 Cable, Control 1USA |
4KB-2637E-02-00 |
from US $43.36 |
||
|
28
|
28
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
29
|
29
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
30
|
30
5FU-F612E-00-00 Bracket |
5FU-F612E-00-00 |
US $6.88 |
||
|
31
|
31
9502P-06008-00 Bolt,flange |
9502P-06008-00 |
US $5.29 |
||
| replacement | |||||
|
31
|
31
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.42 |
||
|
32
|
32
5FU-26331-00-00 Cable, Starter 1USA |
5FU-26331-00-00 |
US $48.13 |
||
|
33
|
33
90464-10842-00 Clamp |
90464-10842-00 |
US $1.78 |
||
