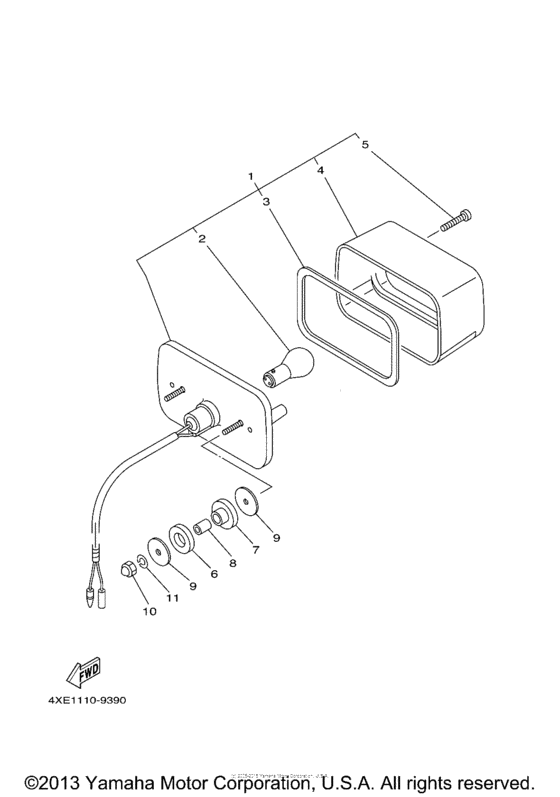

Taillight Diagram Yamaha BIG BEAR 400 Big Bear 400 2WD
- Model code
- YFM400N
- Engine Capacity
- 386
- Year
- 2001
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Big Bear 400 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XE-84710-00-00 Taillight Unit Assy |
4XE-84710-00-00 |
from US $59.41 |
||
|
2
|
2
3GD-84714-00-XX Bulb (12V-7.5W)12V-7.5W USA |
3GD-84714-00-XX |
US $10.74 |
||
|
3
|
3
1K8-84523-00-00 Gasket, Lens |
1K8-84523-00-00 |
from US $4.64 |
||
|
4
|
4
1K8-84521-00-00 Lens, Taillight |
1K8-84521-00-00 |
from US $23.99 |
||
|
5
|
5
2E9-84524-00-00 Screw, Tapping |
2E9-84524-00-00 |
from US $2.13 |
||
| replacement | |||||
|
5
|
5
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
6
|
6
90202-14077-00 Washer, Plate |
90202-14077-00 |
from US $2.13 |
||
|
7
|
7
90480-14088-00 Grommet |
90480-14088-00 |
from US $1.98 |
||
|
8
|
8
90560-07007-00 Spacer |
90560-07007-00 |
from US $2.13 |
||
|
9
|
9
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.56 |
||
|
10
|
10
95307-06800-00 Nut |
95307-06800-00 |
from US $1.56 |
||
|
11
|
11
9290P-06100-00 Washer |
9290P-06100-00 |
US $0.93 |
||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
