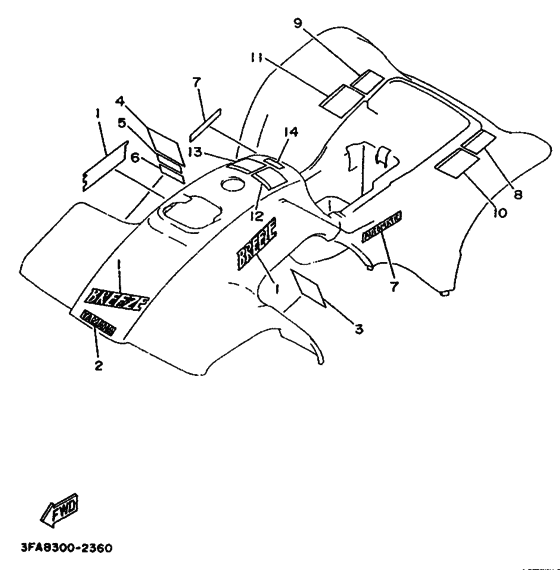

Emblem & label 1 Diagram Yamaha BREEZE
- Model code
- 3FA8
- Engine Capacity
- 124
- Year
- 1992
- Sales region
- Europe (010)
- Colour
- Solid Fine Silver (SFS; 000A)
- Color Variant
- A
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-21571-30-00
Graphic, Frt Fndr 1
FOR SFS |
3FA-21571-30-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
FOR SFS |
999-99999-99-00 |
— | ||
|
2
|
2
99241-00025-00 Emblem, Yamaha |
99241-00025-00 |
from US $5.68 |
||
| replacement | |||||
|
2
|
2
992-41001-00-00 Emblem, Yamaha |
992-41001-00-00 |
from US $5.85 |
||
|
3
|
3
3JN-21568-00-00
Label, Warning
|
3JN-21568-00-00 |
— | ||
| replacement | |||||
|
3
|
3
4WU-21568-00-00
Label, Warning
|
4WU-21568-00-00 |
— | ||
|
4
|
4
3JN-21568-10-00 Label, Warning |
3JN-21568-10-00 |
US $19.84 |
||
| replacement | |||||
|
4
|
4
4WU-21568-10-00 Label, Warning |
4WU-21568-10-00 |
from US $19.84 |
||
|
5
|
5
3FA-2151E-00-00 Label 2 |
3FA-2151E-00-00 |
from US $1.53 |
||
| replacements | |||||
|
5
|
5
5YT-2151E-30-00 Label 2 |
5YT-2151E-30-00 |
from US $2.55 |
||
|
5
|
5
5YT-2151E-00-00 Label 2 |
5YT-2151E-00-00 |
from US $1.90 |
||
|
6
|
6
3FA-2151E-10-00 Label 2 |
3FA-2151E-10-00 |
US $6.09 |
||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
3FA-2163G-30-00
Emblem 1
FOR SFS |
3FA-2163G-30-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
FOR SFS |
999-99999-99-00 |
— | ||
|
8
|
8
3JN-2151H-00-00
Label 5
|
3JN-2151H-00-00 |
— | ||
| replacements | |||||
|
8
|
8
4WU-2151H-00-00
Label 5
|
4WU-2151H-00-00 |
— | ||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
3JN-2151H-11-00 Label 5 |
3JN-2151H-11-00 |
US $12.04 |
||
| replacement | |||||
|
9
|
9
4WU-2151H-10-00 Label 5 |
4WU-2151H-10-00 |
US $12.04 |
||
|
10
|
10
3FA-21696-00-00
Label, Caution
|
3FA-21696-00-00 |
— | ||
|
11
|
11
3FA-21696-10-00
Label, Caution
|
3FA-21696-10-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
3FA-2415A-00-00
Label, Caution 2
|
3FA-2415A-00-00 |
— | ||
| replacement | |||||
|
12
|
12
3JM-21697-00-00
Label, Caution 2
|
3JM-21697-00-00 |
— | ||
|
13
|
13
3FA-2415A-10-00 Label, Caution |
3FA-2415A-10-00 |
US $16.15 |
||
|
14
|
14
3GH-2416E-00-00
Label, Caution Canada
UR CANADA ONLY |
3GH-2416E-00-00 |
— | ||
