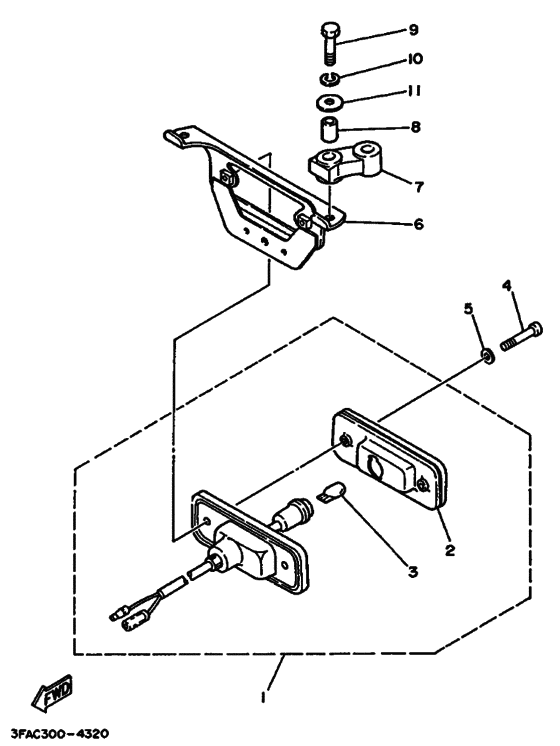

Taillight 2 Diagram Yamaha BREEZE
- Model code
- 3FAC
- Engine Capacity
- 124
- Year
- 1994
- Sales region
- Europe (010)
- Colour
- Solid Fine Silver (SFS; 000A)
- Color Variant
- A
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38W-84710-00-00
Taillight Unit Assy
|
38W-84710-00-00 |
— | ||
|
2
|
2
38W-84721-00-00 Lens, Taillight |
38W-84721-00-00 |
US $13.36 |
||
|
3
|
3
3F9-84740-00-00
Licence Light Assy
|
3F9-84740-00-00 |
— | ||
|
4
|
4
985-11040-20-00
Screw, Pan Head
|
985-11040-20-00 |
— | ||
| replacement | |||||
|
4
|
4
985-17040-20-00 Screw, Pan Head |
985-17040-20-00 |
from US $1.35 |
||
|
5
|
5
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
5
|
5
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
6
|
6
1UY-84702-10-00
Bracket, Taillight
|
1UY-84702-10-00 |
— | ||
|
7
|
7
38W-84726-00-00
Screw
|
38W-84726-00-00 |
— | ||
|
8
|
8
90387-06299-00 Collar |
90387-06299-00 |
from US $1.70 |
||
| replacements | |||||
|
8
|
8
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.70 |
||
|
8
|
8
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
9
|
9
97001-06025-00 Bolt(53L) |
97001-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
10
|
10
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
11
|
11
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
11
|
11
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
11
|
11
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
