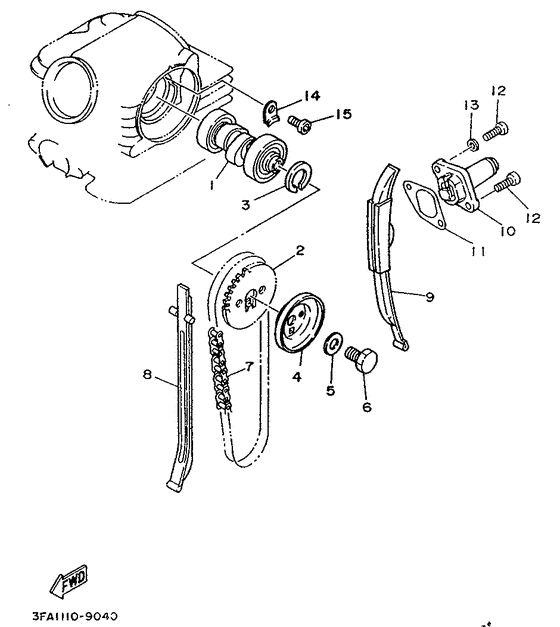

Camshaft & chain Diagram Yamaha BREEZE
- Model code
- 3FAC
- Engine Capacity
- 124
- Year
- 1994
- Sales region
- Europe (General) (999)
- Colour
- Solid Fine Silver (SFS; 000A)
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
50M-12170-00-00 Camshaft Assy 1 |
50M-12170-00-00 |
from US $131.83 |
||
| replacement | |||||
|
01
|
01
50M-12170-01-00 Camshaft Assy 1 |
50M-12170-01-00 |
from US $105.14 |
||
|
02
|
02
50M-12176-00-00 Sprocket, Cam Chain |
50M-12176-00-00 |
from US $10.58 |
||
|
03
|
03
90387-167L5-00 Collar |
90387-167L5-00 |
from US $8.64 |
||
|
04
|
04
3FA-11145-00-00 Plate, Breather 2 |
3FA-11145-00-00 |
from US $7.94 |
||
|
05
|
05
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.66 |
||
| replacement | |||||
|
05
|
05
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
06
|
06
90101-08590-00 Bolt |
90101-08590-00 |
from US $1.56 |
||
|
07
|
07
94580-25092-00 Chain |
94580-25092-00 |
from US $10.48 |
||
|
08
|
08
50M-12231-00-00 Guide, Stopper 1 |
50M-12231-00-00 |
from US $23.72 |
||
|
09
|
09
50M-12241-00-00 Guide, Stopper 2 |
50M-12241-00-00 |
US $40.20 |
||
| replacement | |||||
|
09
|
09
50M-12241-01-00 GUIDE STOPPER 2 |
50M-12241-01-00 |
from US $27.12 |
||
|
10
|
10
50M-12210-00-00 Tensioner Assy, Cam Chain |
50M-12210-00-00 |
from US $52.58 |
||
|
11
|
11
3DM-12213-00-00 Gasket, Tensioner Case |
3DM-12213-00-00 |
from US $4.96 |
||
| replacement | |||||
|
11
|
11
4RF-12213-00-00 Gasket, Tensioner Case |
4RF-12213-00-00 |
from US $2.66 |
||
|
12
|
12
91311-06016-00 Bolt, Hexagon Socket Head |
91311-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
13
|
13
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
14
|
14
50M-1111F-00-00 Plate |
50M-1111F-00-00 |
from US $4.19 |
||
| replacement | |||||
|
14
|
14
4GL-1111F-00-00 Plate |
4GL-1111F-00-00 |
from US $5.38 |
||
|
15
|
15
90110-06145-00 Bolt, Hexagon Socket Head |
90110-06145-00 |
from US $1.21 |
||
| replacement | |||||
|
15
|
15
91314-06012-00 Bolt, Hexagon Socket Head |
91314-06012-00 |
from US $1.21 |
||
