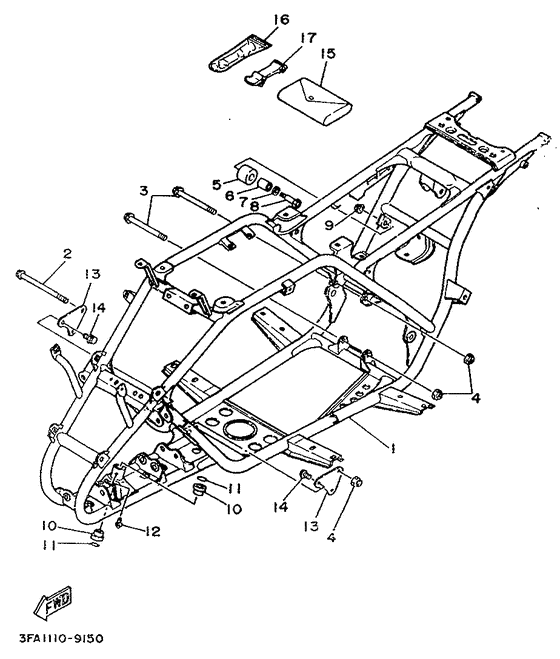

Frame Diagram Yamaha BREEZE
- Model code
- 3FAC
- Engine Capacity
- 124
- Year
- 1994
- Sales region
- Europe (General) (999)
- Colour
- Solid Fine Silver (SFS; 000A)
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3FA-21110-00-33
Frame Comp
Yamaha black |
3FA-21110-00-33 |
— | ||
| replacement | |||||
|
01
|
01
3FA-21110-10-33
Frame Comp
Yamaha black |
3FA-21110-10-33 |
— | ||
|
02
|
02
90105-10183-00 Bolt, Flange |
90105-10183-00 |
from US $7.65 |
||
|
03
|
03
90105-10409-00 Bolt, Flange |
90105-10409-00 |
from US $7.37 |
||
|
04
|
04
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.24 |
||
|
05
|
05
10V-22178-00-00 Tensioner |
10V-22178-00-00 |
from US $8.36 |
||
|
06
|
06
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.26 |
||
|
07
|
07
902-01134-09-00
Washer, Plate
|
902-01134-09-00 |
— | ||
| replacement | |||||
|
07
|
07
902-01133-P2-00 Washer, Plate(3Rr) |
902-01133-P2-00 |
from US $3.68 |
||
|
08
|
08
90109-08705-00 Bolt |
90109-08705-00 |
from US $9.63 |
||
|
09
|
09
90185-08097-00 Nut,self-Locking |
90185-08097-00 |
from US $1.42 |
||
| replacement | |||||
|
09
|
09
90185-08146-00 Nut, Self-Locking |
90185-08146-00 |
from US $1.42 |
||
|
10
|
10
90381-15040-00 Bush, Solid |
90381-15040-00 |
from US $12.75 |
||
|
11
|
11
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.35 |
||
|
12
|
12
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
12
|
12
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
13
|
13
3FA-21315-00-00 Stay, Engine 1 |
3FA-21315-00-00 |
from US $8.93 |
||
|
14
|
14
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
14
|
14
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
14
|
14
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
15
|
15
3GB-28100-00-00 Tool Kit |
3GB-28100-00-00 |
from US $16.72 |
||
|
16
|
16
1NV-2811A-00-00 Gauge, Air |
1NV-2811A-00-00 |
from US $27.34 |
||
| replacement | |||||
|
16
|
16
1NV-2811A-01-00 Gauge, Air |
1NV-2811A-01-00 |
from US $27.34 |
||
|
17
|
17
21V-21376-00-00 Band, Tool |
21V-21376-00-00 |
from US $9.76 |
||
