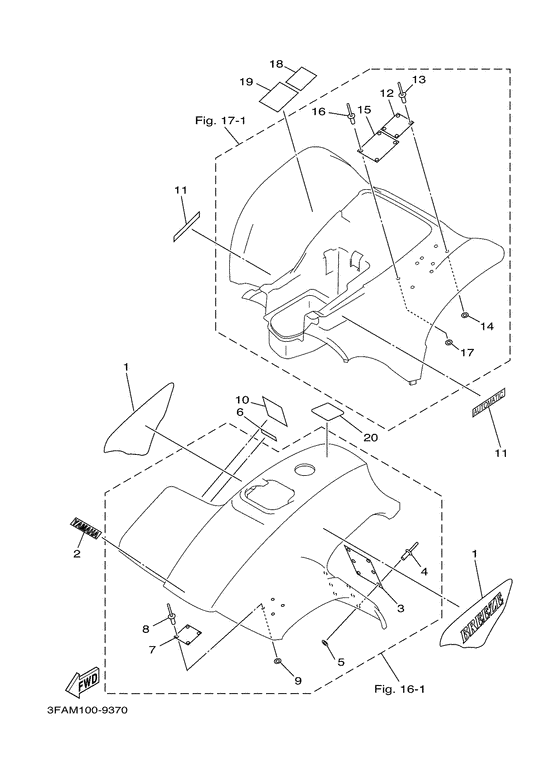

Emblem.label 2 Diagram Yamaha BREEZE
- Model code
- 3FAR
- Engine Capacity
- 124
- Year
- 2000
- Sales region
- Japan (020)
- Colour
- Radical White (RW; 00UJ)
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3FA-21570-20-00
Graphic Set, Front Fender
|
3FA-21570-20-00 |
— | ||
|
02
|
02
992-41001-00-00 Emblem, Yamaha |
992-41001-00-00 |
from US $5.85 |
||
|
03
|
03
5FE-21568-11-00 Label, Warning |
5FE-21568-11-00 |
from US $25.80 |
||
|
04
|
04
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
04
|
04
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
05
|
05
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
06
|
06
3FA-2151E-C0-00 Label 2 |
3FA-2151E-C0-00 |
US $2.55 |
||
|
07
|
07
5FE-21697-01-00
Label, Warning Age
|
5FE-21697-01-00 |
— | ||
| replacement | |||||
|
07
|
07
4D3-2816L-00-00 Label, Warning Age |
4D3-2816L-00-00 |
from US $17.86 |
||
|
08
|
08
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
08
|
08
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
09
|
09
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
10
|
10
4SH-21568-00-00 Label, Warning |
4SH-21568-00-00 |
US $21.15 |
||
|
11
|
11
3FA-2163G-80-00 Emblem 1 |
3FA-2163G-80-00 |
US $8.32 |
||
|
12
|
12
5FE-2151H-01-00 Label 5 |
5FE-2151H-01-00 |
from US $23.80 |
||
|
13
|
13
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
13
|
13
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
14
|
14
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
15
|
15
3FA-21696-41-00 Label, Caution |
3FA-21696-41-00 |
from US $25.85 |
||
|
16
|
16
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
16
|
16
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
17
|
17
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
18
|
18
4LB-2151H-01-00 Label 5 |
4LB-2151H-01-00 |
US $11.19 |
||
|
19
|
19
3FA-21696-30-00
Label, Caution
|
3FA-21696-30-00 |
— | ||
|
20
|
20
4SH-21697-00-00 Label, Caution 2 |
4SH-21697-00-00 |
US $14.17 |
||
