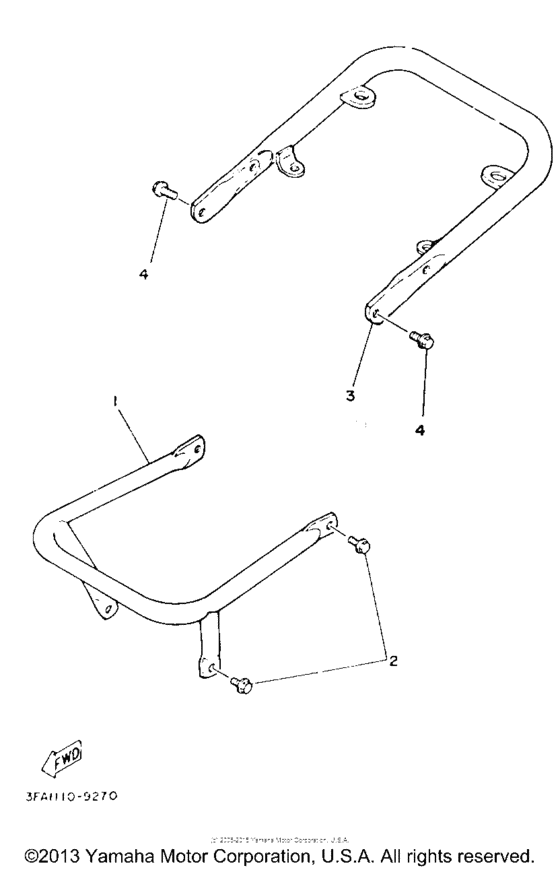

Guard Diagram Yamaha BREEZE
- Model code
- YFA1F
- Engine Capacity
- 124
- Year
- 1994
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-2845N-10-33
Bar, Carry Front
|
3FA-2845N-10-33 |
— | ||
|
2
|
2
95811-08014-00 Bolt, Flange(2Hr) |
95811-08014-00 |
from US $1.56 |
||
| replacement | |||||
|
2
|
2
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.34 |
||
|
3
|
3
3FA-2845R-00-33 Bar, Carry Rear |
3FA-2845R-00-33 |
US $122.24 |
||
| replacement | |||||
|
3
|
3
3FA-2845R-10-33 Bar, Carry Rear |
3FA-2845R-10-33 |
US $122.24 |
||
|
4
|
4
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
4
|
4
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
4
|
4
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
