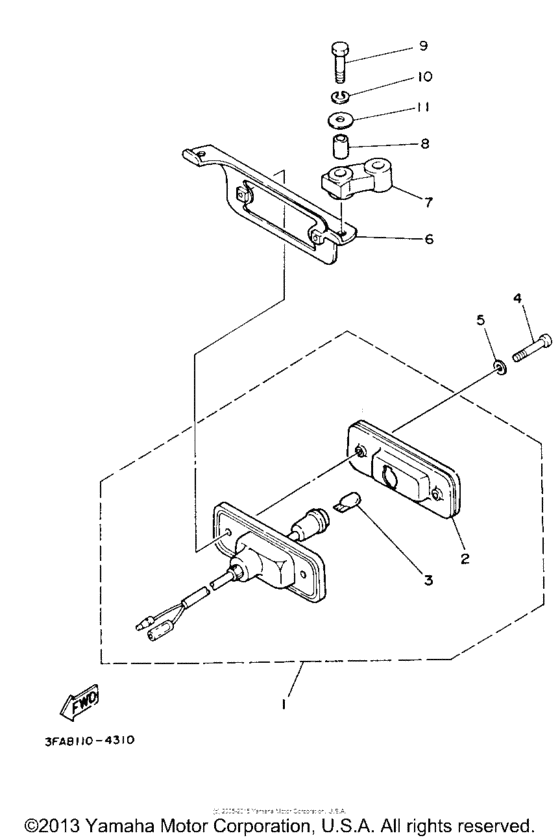

Taillight (1) Diagram Yamaha BREEZE
- Model code
- YFA1F
- Engine Capacity
- 124
- Year
- 1994
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38W-84710-00-00
Taillight Unit Assy
|
38W-84710-00-00 |
— | ||
|
2
|
2
38W-84721-00-00 Lens, Taillight |
38W-84721-00-00 |
US $13.36 |
||
|
3
|
3
3F9-84744-00-XX Bulb, Meter 12V3.8W12V 3.8W |
3F9-84744-00-XX |
US $2.09 |
||
|
4
|
4
985-11040-20-00
Screw, Pan Head
|
985-11040-20-00 |
— | ||
| replacement | |||||
|
4
|
4
985-17040-20-00 Screw, Pan Head |
985-17040-20-00 |
from US $1.35 |
||
|
5
|
5
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
5
|
5
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
6
|
6
1UY-84702-00-00 Bracket, Taillight |
1UY-84702-00-00 |
US $35.93 |
||
| replacement | |||||
|
6
|
6
1UY-84702-10-00
Bracket, Taillight
|
1UY-84702-10-00 |
— | ||
|
7
|
7
38W-84736-00-00 Damper, Tail 1 |
38W-84736-00-00 |
from US $9.18 |
||
|
8
|
8
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
9
|
9
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
9
|
9
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
10
|
10
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
11
|
11
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
11
|
11
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
11
|
11
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
