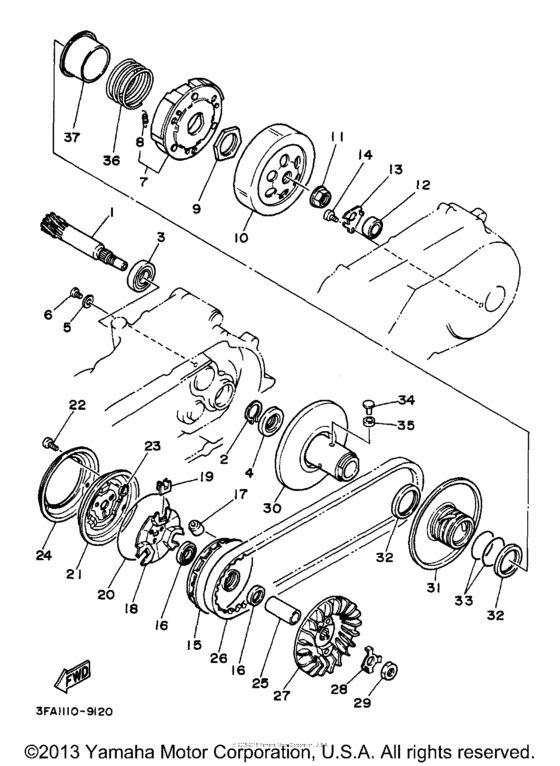

Clutch Diagram Yamaha BREEZE
- Model code
- YFA1J
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-16111-00-00 Gear, Primary Drive14T |
3FA-16111-00-00 |
from US $87.28 |
||
|
2
|
2
99009-22400-00 Circlip |
99009-22400-00 |
from US $1.56 |
||
|
3
|
3
93306-00433-00 Bearing |
93306-00433-00 |
from US $16.20 |
||
|
4
|
4
93102-22335-00 Oil Seal(50M) |
93102-22335-00 |
from US $5.64 |
||
|
5
|
5
90201-06412-00 Washer, Plate |
90201-06412-00 |
from US $2.13 |
||
|
6
|
6
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
|
7
|
7
3FA-16620-00-00 Clutch Carrier Assy |
3FA-16620-00-00 |
from US $155.06 |
||
| replacement | |||||
|
7
|
7
3FA-16620-01-00 CLUTCH CARRIER ASSY |
3FA-16620-01-00 |
from US $152.74 |
||
|
8
|
8
14T-16626-00-00 Spring, Clutch Weight 1 |
14T-16626-00-00 |
from US $5.24 |
||
| replacement | |||||
|
8
|
8
14T-16626-01-00 Spring, Clutch Weight 1 |
14T-16626-01-00 |
US $4.12 |
||
|
9
|
9
90170-36279-00 Nut |
90170-36279-00 |
from US $5.81 |
||
|
10
|
10
4DH-16611-00-00 Clutch Housing Comp |
4DH-16611-00-00 |
from US $71.98 |
||
| replacement | |||||
|
10
|
10
1C5-16611-01-00 Clutch Housing Comp |
1C5-16611-01-00 |
from US $71.98 |
||
|
11
|
11
90179-14469-00 Nut |
90179-14469-00 |
from US $3.68 |
||
|
12
|
12
93399-99918-00 Bearing |
93399-99918-00 |
from US $22.10 |
||
|
13
|
13
50M-15381-00-00 Plate, Bearing Cover |
50M-15381-00-00 |
US $5.40 |
||
|
14
|
14
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
|
15
|
15
3FA-17620-01-00 Primary Sliding Sheave Comp |
3FA-17620-01-00 |
from US $85.64 |
||
|
16
|
16
93101-21149-00 Oil Seal |
93101-21149-00 |
from US $10.77 |
||
| replacements | |||||
|
16
|
16
931-01211-70-00 Oil Seal |
931-01211-70-00 |
from US $9.26 |
||
|
16
|
16
93101-21801-00 Oil Seal |
93101-21801-00 |
from US $8.95 |
||
|
17
|
17
50M-17632-00-00 Weight |
50M-17632-00-00 |
from US $4.96 |
||
|
18
|
18
50W-17623-00-00 Cam |
50W-17623-00-00 |
from US $9.60 |
||
|
19
|
19
50W-17653-00-00 Slider |
50W-17653-00-00 |
from US $2.70 |
||
| replacement | |||||
|
19
|
19
4CW-E7653-00-00 Slider |
4CW-E7653-00-00 |
from US $1.44 |
||
|
20
|
20
932-10976-90-00 O-Ring |
932-10976-90-00 |
from US $6.66 |
||
|
21
|
21
50M-17630-00-00 Primary Sheave Cap Comp |
50M-17630-00-00 |
from US $108.78 |
||
|
22
|
22
98980-04012-00 Screw, Bind |
98980-04012-00 |
from US $1.34 |
||
|
23
|
23
902-14040-38-00 Washer, Claw |
902-14040-38-00 |
from US $2.13 |
||
|
24
|
24
50M-1763E-01-00 Plate |
50M-1763E-01-00 |
from US $23.80 |
||
|
25
|
25
90387-161V0-00 Collar |
90387-161V0-00 |
from US $24.14 |
||
|
26
|
26
3FA-17641-00-00 V-Belt |
3FA-17641-00-00 |
from US $97.54 |
||
|
27
|
27
3FA-17611-00-00 Sheave, Primary Fixed |
3FA-17611-00-00 |
from US $56.48 |
||
| replacement | |||||
|
27
|
27
3FA-17611-01-00 Sheave, Primary Fixed |
3FA-17611-01-00 |
from US $40.02 |
||
|
28
|
28
90215-14236-00 Washer, Lock |
90215-14236-00 |
from US $2.27 |
||
|
29
|
29
90170-12338-00 Nut |
90170-12338-00 |
from US $2 |
||
| replacement | |||||
|
29
|
29
90170-12X01-00
Nut
|
90170-12X01-00 |
— | ||
|
30
|
30
3FA-17660-01-00 Secondary Fixed Sheave Comp |
3FA-17660-01-00 |
from US $147.54 |
||
| replacement | |||||
|
30
|
30
3FA-17660-02-00 Secondary Fixed Sheave Comp |
3FA-17660-02-00 |
from US $117.70 |
||
|
31
|
31
3FA-17670-00-00 Secondary Sliding Sheave |
3FA-17670-00-00 |
from US $93.01 |
||
|
32
|
32
93104-41091-00 Oil Seal |
93104-41091-00 |
from US $11.76 |
||
| replacement | |||||
|
32
|
32
93104-41119-00 Oil Seal |
93104-41119-00 |
from US $11.76 |
||
|
33
|
33
932-10437-13-00 O-Ring(1Ey) |
932-10437-13-00 |
from US $1.70 |
||
|
34
|
34
50W-17664-00-00 Pin, Guide |
50W-17664-00-00 |
from US $2.55 |
||
|
35
|
35
50W-17674-00-00 Collar, Guide |
50W-17674-00-00 |
from US $7.65 |
||
|
36
|
36
90501-505F1-00 Spring, Compression |
90501-505F1-00 |
from US $22.67 |
||
|
37
|
37
3FA-17684-00-00 Seat, Secondary Spring |
3FA-17684-00-00 |
from US $20.99 |
||
