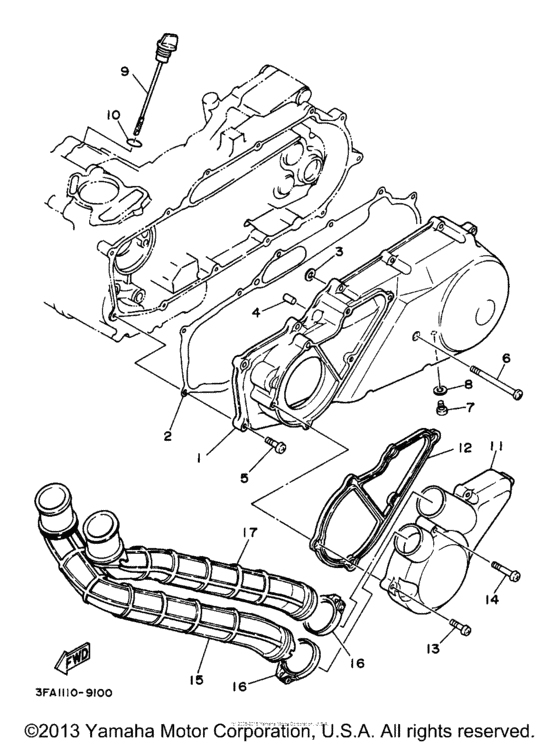

Crankcase cover (1) Diagram Yamaha BREEZE
- Model code
- YFA1J
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-15411-00-00 Cover, Crankcase 1 |
3FA-15411-00-00 |
from US $226.58 |
||
|
2
|
2
3FA-15451-10-00 Gasket, Crankcase Cover 1 |
3FA-15451-10-00 |
from US $17.87 |
||
| replacement | |||||
|
2
|
2
3FA-15451-11-00 Gasket, Crankcase Cover 1 |
3FA-15451-11-00 |
from US $12.24 |
||
|
3
|
3
3FA-15467-00-00 Gasket |
3FA-15467-00-00 |
from US $2.55 |
||
|
4
|
4
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
4
|
4
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
4
|
4
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
5
|
5
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.34 |
||
|
6
|
6
98507-06090-00 Screw, Pan |
98507-06090-00 |
from US $1.34 |
||
|
7
|
7
98517-06008-00 Screw |
98517-06008-00 |
from US $2.41 |
||
|
8
|
8
90201-06630-00 Washer, Plate |
90201-06630-00 |
from US $2.55 |
||
| replacement | |||||
|
8
|
8
90201-06045-00 Washer, Plate |
90201-06045-00 |
from US $1.28 |
||
|
9
|
9
3FA-15362-00-00 Plug, Oil Level |
3FA-15362-00-00 |
from US $8.94 |
||
|
10
|
10
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.70 |
||
|
11
|
11
3FA-15471-00-00 Duct, Air |
3FA-15471-00-00 |
from US $51.95 |
||
|
12
|
12
3FA-15472-00-00 Seal, Air Duct |
3FA-15472-00-00 |
from US $22.24 |
||
|
13
|
13
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.34 |
||
|
14
|
14
98507-06045-00 Screw, Pan Head |
98507-06045-00 |
from US $1.34 |
||
|
15
|
15
3FA-15475-00-00 Duct, Air |
3FA-15475-00-00 |
from US $48.91 |
||
|
16
|
16
90460-54137-00 Hose Clamp Assy |
90460-54137-00 |
from US $4.39 |
||
| replacement | |||||
|
16
|
16
90450-54008-00 Hose Clamp Assy |
90450-54008-00 |
from US $4.39 |
||
|
17
|
17
3FA-15477-00-00 Duct, Air |
3FA-15477-00-00 |
from US $48.91 |
||
