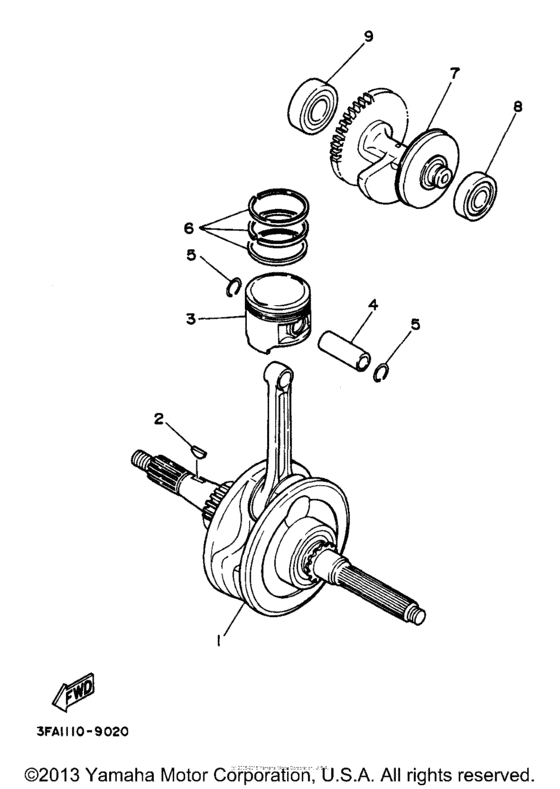

Crankshaft & Piston Diagram Yamaha BREEZE
- Model code
- YFA1J
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-11400-00-00 Crankshaft Assy |
3FA-11400-00-00 |
from US $438.72 |
||
|
2
|
2
90280-03047-00 Key, Woodruff |
90280-03047-00 |
from US $4.64 |
||
|
3
|
3
3FA-11631-00-A0 Piston (Std) |
3FA-11631-00-A0 |
from US $44.64 |
||
|
4
|
4
22K-11633-01-00 Pin, Piston |
22K-11633-01-00 |
from US $5.30 |
||
|
4
|
4
3FA-11638-00-00 Piston (1.00Mm O/s)1.00MM O/S AP |
3FA-11638-00-00 |
from US $55.22 |
||
|
4
|
4
3FA-11636-00-00 Piston (0.50Mm O/s)0.50MM O/S AP |
3FA-11636-00-00 |
from US $46.30 |
||
|
5
|
5
93450-14088-00 Circlip |
93450-14088-00 |
from US $1.66 |
||
|
6
|
6
2HX-11610-00-00
Piston Ring Set
|
2HX-11610-00-00 |
— | ||
| replacement | |||||
|
6
|
6
50M-11610-00-00 Piston Ring Set |
50M-11610-00-00 |
from US $23.16 |
||
|
7
|
7
3FA-11500-00-00 Balancer Assy |
3FA-11500-00-00 |
from US $143.82 |
||
|
7
|
7
2HX-11610-40-00
Piston Ring Set
1.00MM O/S AP |
2HX-11610-40-00 |
— | ||
| replacement | |||||
|
7
|
7
50M-11610-40-00 Piston Ring Set (1.00Mm O/S)1.00MM O/S AP |
50M-11610-40-00 |
from US $45.94 |
||
|
7
|
7
2HX-11610-20-00
Piston Ring Set
0.50MM O/S AP |
2HX-11610-20-00 |
— | ||
| replacement | |||||
|
7
|
7
50M-11610-20-00
Piston Ring Set (0.50Mm O/S)
0.50MM O/S AP |
50M-11610-20-00 |
— | ||
|
8
|
8
93306-20215-00 Bearing |
93306-20215-00 |
from US $31.97 |
||
| replacement | |||||
|
8
|
8
93306-20228-00 Bearing |
93306-20228-00 |
from US $32.87 |
||
|
9
|
9
93306-20336-00 Bearing |
93306-20336-00 |
from US $18.99 |
||
