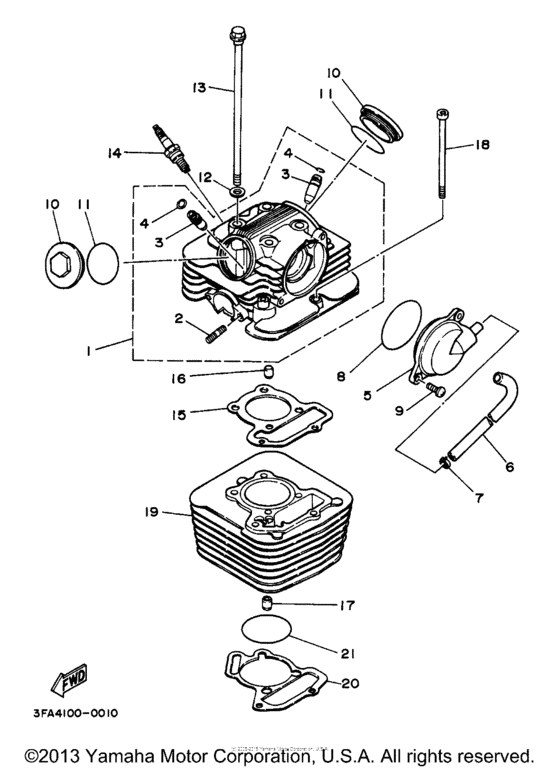

Cylinder Diagram Yamaha BREEZE
- Model code
- YFA1J
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-11110-00-00 Cylinder Head Assy |
3FA-11110-00-00 |
from US $517.82 |
||
| replacement | |||||
|
1
|
1
3FA-11102-04-00 Cylinder Head Assy |
3FA-11102-04-00 |
from US $572.94 |
||
|
2
|
2
95617-06625-00 Bolt, Stud |
95617-06625-00 |
from US $1.56 |
||
|
3
|
3
22F-11134-10-00 Guide, Valve 2 |
22F-11134-10-00 |
from US $35.72 |
||
|
4
|
4
93440-10109-00 Circlip |
93440-10109-00 |
from US $1.34 |
||
|
5
|
5
3FA-11160-00-00 Breather Assy |
3FA-11160-00-00 |
from US $65.35 |
||
|
6
|
6
3FA-11166-00-00 Pipe, Breather 1 |
3FA-11166-00-00 |
from US $7.62 |
||
|
7
|
7
904-67130-64-00 Clip |
904-67130-64-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
90467-13133-00 Clip(3Yx) |
90467-13133-00 |
from US $1.42 |
||
|
8
|
8
93210-63556-00 O-Ring |
93210-63556-00 |
from US $2.32 |
||
|
9
|
9
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
10
|
10
22F-11186-00-00 Cover, Cylinder Head Side 2 |
22F-11186-00-00 |
from US $12.89 |
||
| replacement | |||||
|
10
|
10
22F-11186-10-00 Cover, Cylinder Head Side 2 |
22F-11186-10-00 |
from US $10.26 |
||
|
11
|
11
93210-44704-00 O-Ring |
93210-44704-00 |
from US $1.42 |
||
|
12
|
12
90201-080L7-00 Washer, Plate |
90201-080L7-00 |
from US $2.69 |
||
|
13
|
13
90105-08324-00 Bolt, Washer Based |
90105-08324-00 |
from US $5.72 |
||
| replacement | |||||
|
13
|
13
90105-08181-00 Bolt, Flange |
90105-08181-00 |
from US $5.96 |
||
|
14
|
14
NGK-C7HSA-00-00 C7Hsa Ngk 10PkUR |
NGK-C7HSA-00-00 |
US $4.23 |
||
| replacements | |||||
|
14
|
14
C7H-SA000-00-00 B5ES NGK SPLUG 4PKUR |
C7H-SA000-00-00 |
US $16.84 |
||
|
14
|
14
NGK-CR7HS-00-00
Plug Spark
UR |
NGK-CR7HS-00-00 |
— | ||
|
15
|
15
50M-11181-00-00 Gasket, Cylinder Head 1 |
50M-11181-00-00 |
from US $9.92 |
||
|
15
|
15
94701-00255-00 Plug Spark (Nd U22Fs-U)U22FS-U UR |
94701-00255-00 |
US $4.23 |
||
| replacement | |||||
|
15
|
15
C7H-SA000-00-00 B5ES NGK SPLUG 4PKU22FS-U UR |
C7H-SA000-00-00 |
US $16.84 |
||
|
16
|
16
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
16
|
16
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
17
|
17
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
17
|
17
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
18
|
18
91317-06110-00 Bolt |
91317-06110-00 |
from US $3.54 |
||
|
19
|
19
3FA-11310-00-00 Cylinder |
3FA-11310-00-00 |
US $546 |
||
|
20
|
20
3FA-11351-10-00 Gasket, Cylinder |
3FA-11351-10-00 |
from US $3.98 |
||
|
21
|
21
93210-53679-00 O-Ring |
93210-53679-00 |
from US $2.55 |
||
