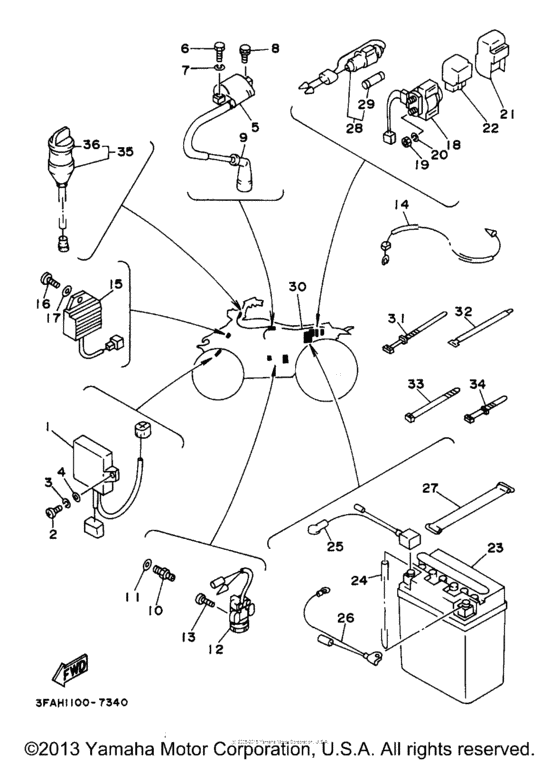

Electrical (1) Diagram Yamaha BREEZE
- Model code
- YFA1J
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-85540-10-00 C.d.i. Unit Assy |
3FA-85540-10-00 |
from US $285.41 |
||
|
2
|
2
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
3
|
3
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
4
|
4
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
5
|
5
4KJ-82310-00-00 Ignition Coil Assy |
4KJ-82310-00-00 |
from US $59.27 |
||
| replacements | |||||
|
5
|
5
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
5
|
5
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
5
|
5
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
5
|
5
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
5
|
5
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
5
|
5
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
6
|
6
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
6
|
6
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
7
|
7
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
8
|
8
90109-06723-00 Bolt |
90109-06723-00 |
from US $2.13 |
||
|
9
|
9
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $19.69 |
||
| replacement | |||||
|
9
|
9
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $23.82 |
||
|
10
|
10
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
| replacement | |||||
|
10
|
10
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $23.80 |
||
|
11
|
11
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
|
12
|
12
3FA-82627-00-00 Switch |
3FA-82627-00-00 |
from US $78.34 |
||
|
13
|
13
90149-05283-00 Screw |
90149-05283-00 |
from US $2.55 |
||
|
14
|
14
3FA-82541-00-00 Wire, Lead |
3FA-82541-00-00 |
from US $11.76 |
||
|
15
|
15
3GB-81960-10-00 Rectifier & Regulator Assy |
3GB-81960-10-00 |
from US $119.78 |
||
| replacement | |||||
|
15
|
15
5TH-81960-01-00 Rectifier & Regulator Assy |
5TH-81960-01-00 |
from US $119.78 |
||
|
16
|
16
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
18
|
18
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
19
|
19
95307-06700-00 Nut |
95307-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
19
|
19
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
20
|
20
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
21
|
21
29U-81950-93-00 Relay Assy (Aca12115-1)29U-93 |
29U-81950-93-00 |
from US $34.06 |
||
|
22
|
22
2NL-81950-92-00 Relay Assy (2Nl-92)2NL-92 |
2NL-81950-92-00 |
from US $46.15 |
||
|
23
|
23
BTG-12N12-C4-A2
Cb12Ca Gs Battery
UR |
BTG-12N12-C4-A2 |
— | ||
| replacements | |||||
|
23
|
23
CB1-2CA00-00-00
PACKING
UR |
CB1-2CA00-00-00 |
— | ||
|
23
|
23
ACB-12CA0-00-00
Acb12Ca Gs Battery W
UR |
ACB-12CA0-00-00 |
— | ||
|
24
|
24
90445-08338-00 Hose (L500) |
90445-08338-00 |
US $10.91 |
||
| replacement | |||||
|
24
|
24
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
25
|
25
1YW-82115-00-00 Wire, Plus Lead |
1YW-82115-00-00 |
from US $36.06 |
||
|
26
|
26
3FA-82116-00-00
Wire, Minus Lead
|
3FA-82116-00-00 |
— | ||
| replacements | |||||
|
26
|
26
1VJ-82116-00-00
Wire, Minus Lead
|
1VJ-82116-00-00 |
— | ||
|
26
|
26
3SX-82116-00-00
Wire, Minus Lead
|
3SX-82116-00-00 |
— | ||
|
27
|
27
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.89 |
||
|
28
|
28
3GB-82150-00-00 Fuse Holder Assy |
3GB-82150-00-00 |
from US $28.05 |
||
|
29
|
29
3GB-82151-00-00 Fuse |
3GB-82151-00-00 |
from US $1.78 |
||
| replacement | |||||
|
29
|
29
5G2-82151-00-00 Fuse |
5G2-82151-00-00 |
from US $3.68 |
||
|
30
|
30
3FA-82590-20-00 Wire Harness Assy |
3FA-82590-20-00 |
US $253.73 |
||
|
31
|
31
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
32
|
32
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
32
|
32
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
32
|
32
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
33
|
33
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
34
|
34
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
35
|
35
4GB-82510-00-00 Main Switch Assy |
4GB-82510-00-00 |
from US $74.47 |
||
| replacements | |||||
|
35
|
35
4GB-82510-11-00 Main Switch Assy |
4GB-82510-11-00 |
from US $74.47 |
||
|
35
|
35
4GB-82510-12-00 Main Switch Assy |
4GB-82510-12-00 |
US $72.76 |
||
|
36
|
36
3HN-82579-00-00 Cap, Key |
3HN-82579-00-00 |
from US $5.30 |
||
