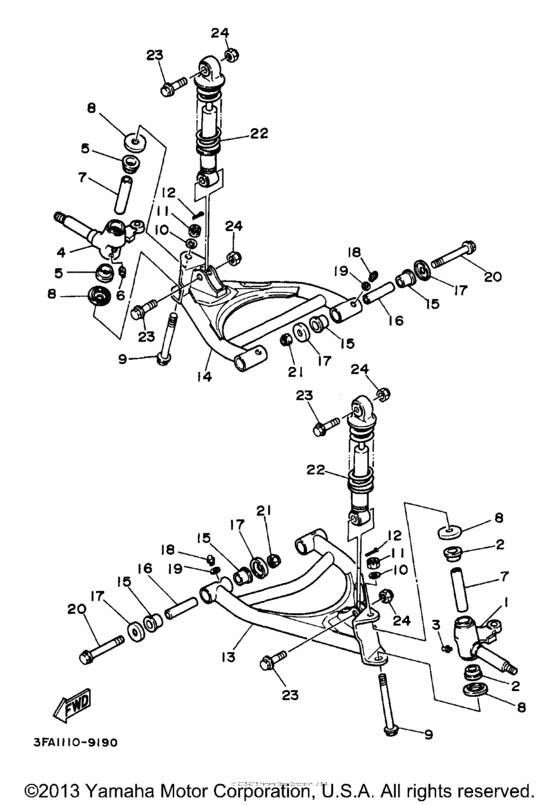

Front suspension - wheel Diagram Yamaha BREEZE
- Model code
- YFA1J
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-23511-01-00 Knuckle, Steering 1 |
3FA-23511-01-00 |
from US $146.75 |
||
|
2
|
2
90381-17067-00 Bush, Solid |
90381-17067-00 |
from US $6.96 |
||
|
3
|
3
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
4
|
4
3FA-23521-01-00 Knuckle, Steering 2 |
3FA-23521-01-00 |
from US $146.75 |
||
|
5
|
5
90381-17067-00 Bush, Solid |
90381-17067-00 |
from US $6.96 |
||
|
6
|
6
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
7
|
7
3GB-23448-00-00 Spacer |
3GB-23448-00-00 |
from US $16.54 |
||
|
8
|
8
3JN-23517-00-00 Cover, Thrust 1 |
3JN-23517-00-00 |
from US $11.92 |
||
|
9
|
9
90109-104A8-00 Bolt |
90109-104A8-00 |
from US $7.65 |
||
|
10
|
10
90201-08759-00 Washer, Plate |
90201-08759-00 |
from US $1.70 |
||
|
11
|
11
90171-10004-00 Nut, Castle |
90171-10004-00 |
from US $2.41 |
||
| replacement | |||||
|
11
|
11
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.66 |
||
|
12
|
12
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
13
|
13
3FA-23570-00-33 Front Lower Arm Comp. (Left)033 |
3FA-23570-00-33 |
from US $208.62 |
||
|
14
|
14
3FA-23580-00-33 Front Lower Arm Comp. (Right)033 |
3FA-23580-00-33 |
from US $152.42 |
||
|
15
|
15
90381-15088-00 Bush, Solid |
90381-15088-00 |
from US $12.61 |
||
|
16
|
16
90387-101R3-00 Collar |
90387-101R3-00 |
from US $10.20 |
||
|
17
|
17
1UY-23517-00-00 Cover, Thrust 1 |
1UY-23517-00-00 |
from US $8.50 |
||
| replacements | |||||
|
17
|
17
5YT-23517-00-00 Cover, Thrust 1 |
5YT-23517-00-00 |
from US $5.23 |
||
|
17
|
17
1UY-23517-01-00 Cover, Thrust 1 |
1UY-23517-01-00 |
from US $6.96 |
||
|
18
|
18
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
19
|
19
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
20
|
20
90105-10727-00 Bolt, Flange |
90105-10727-00 |
from US $4.11 |
||
|
21
|
21
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.24 |
||
|
22
|
22
3FA-23350-00-33 Shock Absorber Assy003 |
3FA-23350-00-33 |
from US $105.80 |
||
|
23
|
23
90105-10561-00 Bolt, Flange |
90105-10561-00 |
from US $4.39 |
||
| replacement | |||||
|
23
|
23
90105-10669-00 Bolt, Washer Based(3Yr) |
90105-10669-00 |
from US $4.39 |
||
|
24
|
24
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.24 |
||
