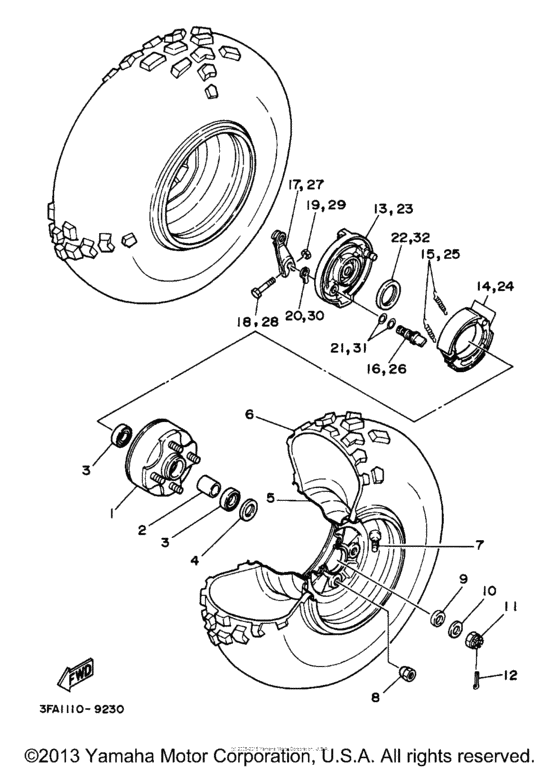

Front wheel Diagram Yamaha BREEZE
- Model code
- YFA1J
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-25111-00-00 Hub, Front |
3FA-25111-00-00 |
from US $137.47 |
||
| replacement | |||||
|
1
|
1
1C5-25111-00-00 Hub, Front |
1C5-25111-00-00 |
from US $137.47 |
||
|
2
|
2
3FA-25117-00-00 Spacer, Bearing |
3FA-25117-00-00 |
from US $7.65 |
||
| replacement | |||||
|
2
|
2
2FJ-25117-00-00 Spacer, Bearing |
2FJ-25117-00-00 |
from US $7.28 |
||
|
3
|
3
93306-00302-00 Brg,r-B 6003 35Mm 39G Ky |
93306-00302-00 |
from US $22.28 |
||
| replacement | |||||
|
3
|
3
933-06003-15-00 Bearing(2Jn) |
933-06003-15-00 |
from US $24.09 |
||
|
4
|
4
93102-23275-00 Oil Seal |
93102-23275-00 |
from US $7.08 |
||
|
5
|
5
3FA-25180-00-35 Wheel Comp |
3FA-25180-00-35 |
from US $178.23 |
||
|
6
|
6
94107-086W7-00 Tire (At20X7-8 Di-K635A T/l)N DUNLOP |
94107-086W7-00 |
US $136.24 |
||
| replacement | |||||
|
6
|
6
941-07080-09-00 Tire (At20X7-8 Di-K635A T/l)N DUNLOP |
941-07080-09-00 |
US $154.57 |
||
|
7
|
7
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
8
|
8
90179-10540-00 Nut |
90179-10540-00 |
from US $2.27 |
||
|
9
|
9
90387-175R2-00 Collar |
90387-175R2-00 |
from US $4.68 |
||
|
10
|
10
90201-14220-00 Washer Plate 248181370000 |
90201-14220-00 |
from US $1.56 |
||
|
11
|
11
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
12
|
12
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
13
|
13
3FA-25121-00-00 Plate, Brake ShoeFOR LEFT |
3FA-25121-00-00 |
from US $108.87 |
||
|
14
|
14
4BE-W2536-00-00 Brake Shoe Set |
4BE-W2536-00-00 |
from US $23.56 |
||
| replacement | |||||
|
14
|
14
4BE-W253E-00-00 Brake Shoe Kit |
4BE-W253E-00-00 |
from US $27.27 |
||
|
15
|
15
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
16
|
16
5G3-25351-02-00 Camshaft |
5G3-25351-02-00 |
from US $23.52 |
||
|
17
|
17
3FA-25155-00-00 Lever, Camshaft 1FOR LEFT |
3FA-25155-00-00 |
from US $19.84 |
||
|
18
|
18
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
19
|
19
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
20
|
20
52H-2513A-00-00 Plate, Indicator |
52H-2513A-00-00 |
from US $2.69 |
||
|
21
|
21
93210-12790-00 O-Ring |
93210-12790-00 |
from US $1.34 |
||
|
22
|
22
93106-40027-00 Oil Seal |
93106-40027-00 |
from US $7.37 |
||
|
23
|
23
3FA-25169-00-00 Plate, Brake Shoe 2FOR RIGHT |
3FA-25169-00-00 |
US $187.85 |
||
|
24
|
24
4BE-W2536-00-00 Brake Shoe Set |
4BE-W2536-00-00 |
from US $23.56 |
||
| replacement | |||||
|
24
|
24
4BE-W253E-00-00 Brake Shoe Kit |
4BE-W253E-00-00 |
from US $27.27 |
||
|
25
|
25
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
26
|
26
5G3-25351-02-00 Camshaft |
5G3-25351-02-00 |
from US $23.52 |
||
|
27
|
27
3FA-25156-00-00 Lever, Camshaft 2FOR RIGHT |
3FA-25156-00-00 |
from US $19.84 |
||
|
28
|
28
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
29
|
29
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
30
|
30
52H-2513A-00-00 Plate, Indicator |
52H-2513A-00-00 |
from US $2.69 |
||
|
31
|
31
93210-12790-00 O-Ring |
93210-12790-00 |
from US $1.34 |
||
|
32
|
32
93106-40027-00 Oil Seal |
93106-40027-00 |
from US $7.37 |
||
