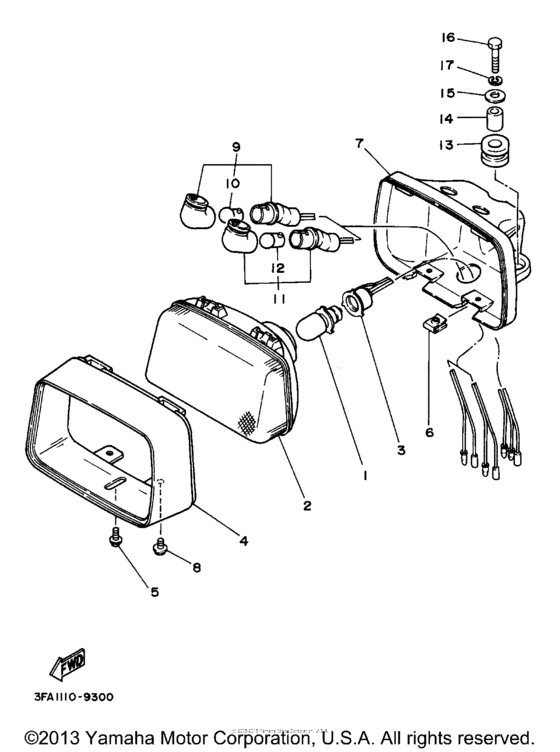

Headlight Diagram Yamaha BREEZE
- Model code
- YFA1J
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-84314-00-XX Bulb (12V-25/25W) (102-84314-12V-25/25W |
102-84314-00-XX |
US $6.35 |
||
| replacement | |||||
|
1
|
1
1YT-84314-00-00 Bulb, Headlight (12V-25/25W)12V-25/25W |
1YT-84314-00-00 |
from US $5.38 |
||
|
2
|
2
3FA-84320-00-00 Lens Assy |
3FA-84320-00-00 |
from US $69.12 |
||
|
3
|
3
3FA-84312-00-00 Cord Assy |
3FA-84312-00-00 |
US $22.01 |
||
|
4
|
4
3FA-84315-00-00 Rim, Headlight |
3FA-84315-00-00 |
from US $27.36 |
||
|
5
|
5
3FA-84331-00-00 Screw, Rim Adjusting |
3FA-84331-00-00 |
US $6.59 |
||
|
6
|
6
3FA-84326-00-00 Nut, Spring |
3FA-84326-00-00 |
from US $1.98 |
||
| replacement | |||||
|
6
|
6
90183-05074-00 Nut, Spring(3Yx) |
90183-05074-00 |
from US $1.98 |
||
|
7
|
7
3FA-84311-00-00
Body, Headlight
|
3FA-84311-00-00 |
— | ||
|
8
|
8
3FA-84325-00-00 Screw, Bind |
3FA-84325-00-00 |
from US $1.70 |
||
| replacement | |||||
|
8
|
8
98907-05016-00 Screw, Bind |
98907-05016-00 |
from US $1.56 |
||
|
9
|
9
3FA-83530-00-00 Pilot Light Assembly |
3FA-83530-00-00 |
US $30.74 |
||
|
10
|
10
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
| replacement | |||||
|
10
|
10
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
|
11
|
11
3FA-83530-10-00 Pilot Light Assembly |
3FA-83530-10-00 |
US $31.36 |
||
|
12
|
12
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
| replacement | |||||
|
12
|
12
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
|
13
|
13
90480-18290-00 Grommet |
90480-18290-00 |
from US $1.70 |
||
|
14
|
14
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
15
|
15
90201-06072-00 Washer, Plate |
90201-06072-00 |
from US $1.28 |
||
|
16
|
16
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
17
|
17
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
