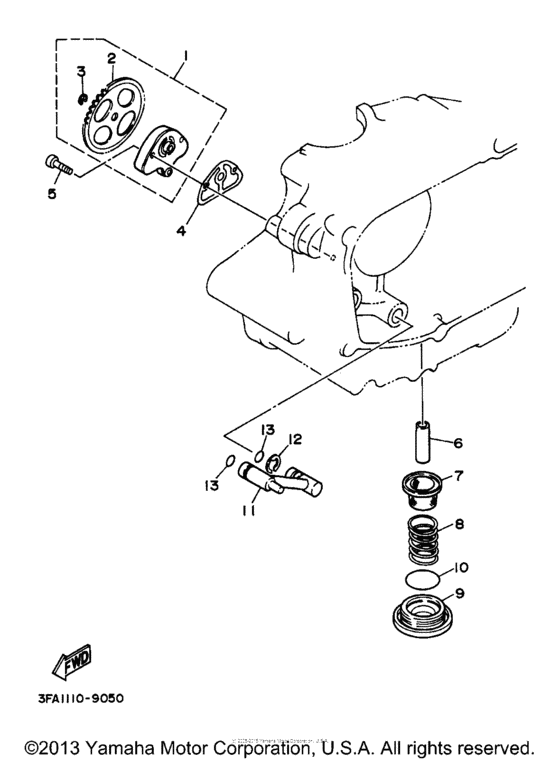

Oil pump Diagram Yamaha BREEZE
- Model code
- YFA1J
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-13300-00-00 Oil Pump Assy |
3FA-13300-00-00 |
from US $117.71 |
||
|
2
|
2
3FA-13325-00-00 Gear, Pump Driven |
3FA-13325-00-00 |
from US $35.42 |
||
|
3
|
3
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
4
|
4
22F-13329-01-00 Gasket, Pump Cover |
22F-13329-01-00 |
from US $2.32 |
||
|
5
|
5
90155-06007-00 Screw, Flat Fillister |
90155-06007-00 |
from US $1.80 |
||
|
6
|
6
2XK-13416-00-00 Pipe, Oil 1 |
2XK-13416-00-00 |
from US $4.39 |
||
|
7
|
7
51Y-13411-00-00 Strainer, Oil |
51Y-13411-00-00 |
from US $6.96 |
||
| replacement | |||||
|
7
|
7
5YP-E3411-00-00 Strainer, Oil |
5YP-E3411-00-00 |
from US $2.55 |
||
|
8
|
8
90501-18576-00 Spring, Compression |
90501-18576-00 |
from US $1.34 |
||
|
9
|
9
30X-15351-00-00
Plug, Drain
|
30X-15351-00-00 |
— | ||
| replacement | |||||
|
9
|
9
4HC-15351-00-00 Plug, Drain |
4HC-15351-00-00 |
from US $11.58 |
||
|
10
|
10
932-10353-89-00
O-Ring
|
932-10353-89-00 |
— | ||
| replacement | |||||
|
10
|
10
93210-347A1-00 O-Ring |
93210-347A1-00 |
from US $1.34 |
||
|
11
|
11
3FA-13405-00-00 Oil Pipe Comp. 1 |
3FA-13405-00-00 |
from US $38.55 |
||
|
12
|
12
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
13
|
13
93210-08006-00 O-Ring |
93210-08006-00 |
from US $1.34 |
||
| replacement | |||||
|
13
|
13
93210-08003-00 O-Ring |
93210-08003-00 |
from US $1.70 |
||
