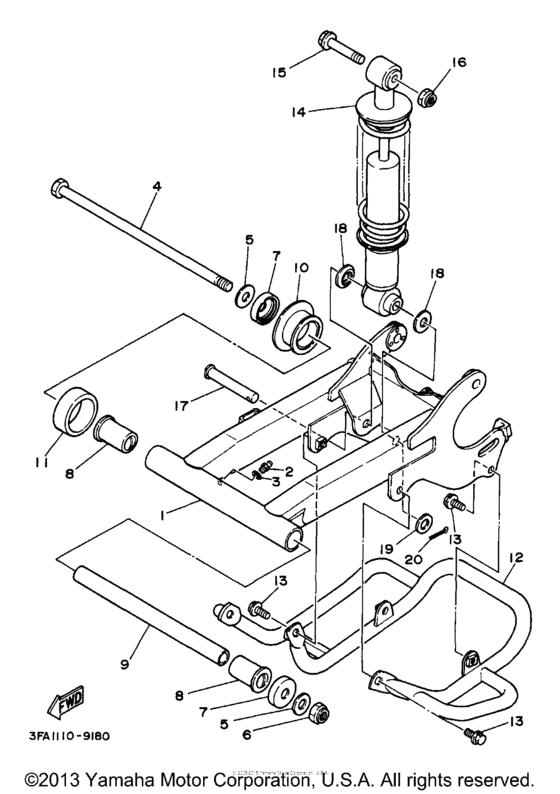

Rear arm - suspension Diagram Yamaha BREEZE
- Model code
- YFA1J
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-22110-00-33 Rear Arm Comp033 |
3FA-22110-00-33 |
from US $243.66 |
||
|
2
|
2
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
3
|
3
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
4
|
4
2JX-22141-00-00 Shaft, Pivot |
2JX-22141-00-00 |
from US $12.33 |
||
|
5
|
5
90201-126A7-00 Washer, Plate (4N0) |
90201-126A7-00 |
from US $1.70 |
||
|
6
|
6
90185-12134-00 Nut, Self-Locking |
90185-12134-00 |
from US $6.30 |
||
|
7
|
7
401-22128-01-00 Cover, Thrust 1 |
401-22128-01-00 |
from US $8.28 |
||
|
8
|
8
90386-18028-00 Bush |
90386-18028-00 |
from US $8.28 |
||
|
9
|
9
3FA-22126-00-00 Collar, Distance |
3FA-22126-00-00 |
from US $26.46 |
||
|
10
|
10
2A6-22151-00-00 Seal, Guard |
2A6-22151-00-00 |
from US $10.37 |
||
|
11
|
11
2A6-22152-00-00 Seal, Guard |
2A6-22152-00-00 |
from US $3.32 |
||
|
12
|
12
3FA-2219X-00-00 Cover |
3FA-2219X-00-00 |
from US $110.11 |
||
|
13
|
13
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
14
|
14
3FA-22210-00-33 Shock Absorber Assy, Rear033 |
3FA-22210-00-33 |
from US $276.06 |
||
|
15
|
15
90105-10388-00 Bolt, Flange |
90105-10388-00 |
from US $3.54 |
||
|
16
|
16
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.24 |
||
|
17
|
17
90240-12092-00 Pin, Clevis |
90240-12092-00 |
from US $6.80 |
||
|
18
|
18
1W1-22128-00-00 Cover, Thrust 1 |
1W1-22128-00-00 |
from US $10.48 |
||
|
19
|
19
90201-122A7-00 Washer, Plate (4L0) |
90201-122A7-00 |
from US $1.84 |
||
| replacements | |||||
|
19
|
19
90201-12047-00 Washer, Plate |
90201-12047-00 |
from US $1.84 |
||
|
19
|
19
90201-12749-00 Washer, Plate |
90201-12749-00 |
from US $1.84 |
||
|
20
|
20
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
