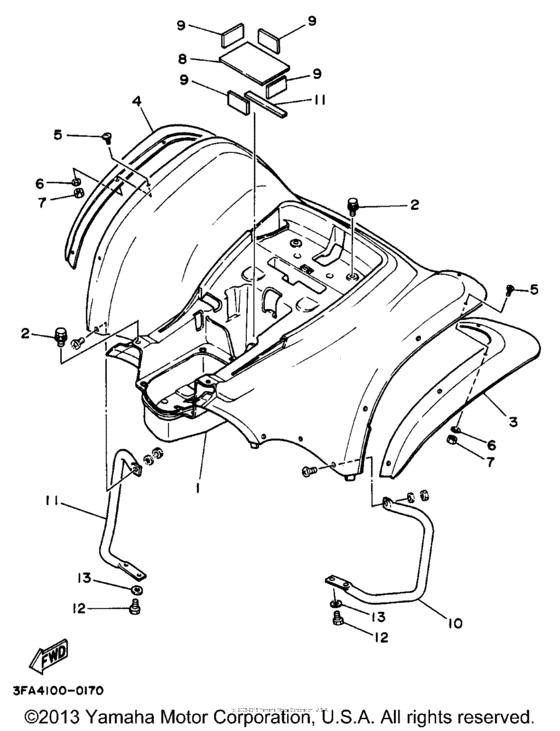

Rear fender Diagram Yamaha BREEZE
- Model code
- YFA1J
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-W2161-40-00
Rear Fender Comp. (Yns2)
UR |
3FA-W2161-40-00 |
— | ||
| replacement | |||||
|
1
|
1
3FA-W2161-41-00
Rear Fender Comp
UR |
3FA-W2161-41-00 |
— | ||
|
2
|
2
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
2
|
2
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
2
|
2
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
3
|
3
3FA-21621-00-00
Flap
0T2 |
3FA-21621-00-00 |
— | ||
|
4
|
4
3FA-21691-00-00
Flap
0T2 |
3FA-21691-00-00 |
— | ||
|
5
|
5
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
6
|
6
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
7
|
7
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
8
|
8
1UY-21639-00-00 Damper 2 |
1UY-21639-00-00 |
from US $3.40 |
||
|
9
|
9
1UY-21638-00-00 Damper 1 |
1UY-21638-00-00 |
from US $2.98 |
||
|
10
|
10
3FA-21613-01-00 Stay, Fender 1 |
3FA-21613-01-00 |
from US $73.42 |
||
|
11
|
11
3FA-21614-01-00 Stay, Fender 2 |
3FA-21614-01-00 |
US $84.33 |
||
|
12
|
12
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
13
|
13
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
