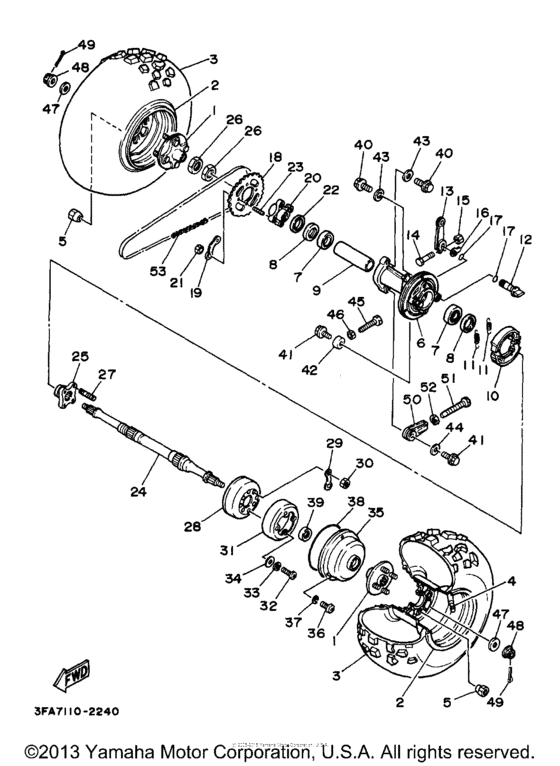

Rear wheel Diagram Yamaha BREEZE
- Model code
- YFA1J
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-25383-00-00 Collar, Wheel |
3FA-25383-00-00 |
from US $108.04 |
||
| replacement | |||||
|
1
|
1
1C5-25383-00-00 Collar, Wheel |
1C5-25383-00-00 |
from US $121.86 |
||
|
2
|
2
3FA-25390-00-35 Rear Wheel Comp |
3FA-25390-00-35 |
from US $187.56 |
||
|
3
|
3
94110-086W8-00 Tire (At22X10-8 Di-K735A T/l NN DUNLOP |
94110-086W8-00 |
US $196.61 |
||
| replacement | |||||
|
3
|
3
941-10080-09-00 Tire (At22X10-8 Di-K735A T/l NN DUNLOP |
941-10080-09-00 |
US $225.36 |
||
|
4
|
4
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
5
|
5
90179-10540-00 Nut |
90179-10540-00 |
from US $2.27 |
||
|
6
|
6
3FA-25311-00-00 Hub, Rear |
3FA-25311-00-00 |
from US $200.33 |
||
|
7
|
7
93306-00705-00 Bearing |
93306-00705-00 |
from US $43.38 |
||
|
8
|
8
93106-42026-00 Oil Seal(3Bc) |
93106-42026-00 |
from US $11.48 |
||
|
9
|
9
3FA-25317-00-00 Spacer, Bearing |
3FA-25317-00-00 |
from US $8.64 |
||
|
10
|
10
3FA-W2536-00-00 Brake Shoe Kit |
3FA-W2536-00-00 |
from US $27.02 |
||
| replacement | |||||
|
10
|
10
3FA-W253A-00-00 Brake Shoe Kit |
3FA-W253A-00-00 |
from US $32.17 |
||
|
11
|
11
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
12
|
12
55X-25351-00-00 Camshaft |
55X-25351-00-00 |
from US $30.04 |
||
|
13
|
13
2N3-25155-00-00 Lever, Camshaft 1 |
2N3-25155-00-00 |
from US $21.96 |
||
|
14
|
14
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
15
|
15
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
16
|
16
23F-2533A-00-00 Plate, Indicator |
23F-2533A-00-00 |
from US $2.55 |
||
|
17
|
17
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
17
|
17
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
18
|
18
3FA-25432-20-00 Sprocket, Driven32T |
3FA-25432-20-00 |
from US $50.47 |
||
|
19
|
19
10V-25412-00-00 Washer |
10V-25412-00-00 |
from US $6.38 |
||
|
20
|
20
3FA-25386-00-00 Collar, Sprocket Axle |
3FA-25386-00-00 |
from US $124.76 |
||
|
21
|
21
90170-10219-00 Nut |
90170-10219-00 |
from US $1.35 |
||
| replacement | |||||
|
21
|
21
90170-10011-00 Nut |
90170-10011-00 |
from US $1.35 |
||
|
22
|
22
5V6-25367-00-00 Cover, Hub Dust |
5V6-25367-00-00 |
from US $4.53 |
||
|
23
|
23
90116-10483-00 Bolt, Stud |
90116-10483-00 |
from US $3.54 |
||
|
24
|
24
3FA-25381-00-00 Axle, Wheel |
3FA-25381-00-00 |
from US $347.20 |
||
| replacement | |||||
|
24
|
24
3FA-25381-10-00 Axle, Wheel |
3FA-25381-10-00 |
from US $365.98 |
||
|
25
|
25
3FA-25343-00-00 Boss |
3FA-25343-00-00 |
from US $95.88 |
||
|
26
|
26
90170-33376-00 Nut |
90170-33376-00 |
from US $14.88 |
||
| replacement | |||||
|
26
|
26
901-70330-11-00 Nut |
901-70330-11-00 |
from US $14.88 |
||
|
27
|
27
90116-08507-00 Bolt, Stud |
90116-08507-00 |
from US $1.69 |
||
|
28
|
28
3FA-2531E-00-00 Drum, Brake |
3FA-2531E-00-00 |
from US $119.65 |
||
|
29
|
29
40E-25834-00-00 Washer, Lock |
40E-25834-00-00 |
from US $9.76 |
||
|
30
|
30
95337-08600-00 Nut |
95337-08600-00 |
from US $1.13 |
||
|
31
|
31
3FA-25336-00-00 Ring 2 |
3FA-25336-00-00 |
from US $25.22 |
||
|
32
|
32
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
32
|
32
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
33
|
33
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
34
|
34
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
35
|
35
55X-25715-00-00 Cover 1 |
55X-25715-00-00 |
from US $31.84 |
||
|
36
|
36
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
36
|
36
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
37
|
37
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
38
|
38
93211-63688-00 O-Ring |
93211-63688-00 |
from US $7.51 |
||
|
39
|
39
93102-35349-00 Oil Seal |
93102-35349-00 |
from US $10.48 |
||
| replacement | |||||
|
39
|
39
93102-35191-00 Oil Seal (705) |
93102-35191-00 |
from US $10.48 |
||
|
40
|
40
90105-12573-00
Bolt, Washer Based
|
90105-12573-00 |
— | ||
|
41
|
41
90105-10585-00 Bolt, Washer Based |
90105-10585-00 |
from US $5.67 |
||
|
42
|
42
90387-113W0-00 Collar |
90387-113W0-00 |
from US $8.36 |
||
|
43
|
43
90201-120A5-00 Washer, Plate |
90201-120A5-00 |
from US $4.39 |
||
|
44
|
44
90201-106F2-00 Washer, Plate (17K) |
90201-106F2-00 |
from US $1.66 |
||
|
45
|
45
90101-08777-00 Bolt |
90101-08777-00 |
from US $1.66 |
||
|
46
|
46
95337-08600-00 Nut |
95337-08600-00 |
from US $1.13 |
||
|
47
|
47
90201-141A3-00 Washer, Plate |
90201-141A3-00 |
from US $3.83 |
||
| replacement | |||||
|
47
|
47
90201-14022-00 Washer, Plate |
90201-14022-00 |
from US $3.83 |
||
|
48
|
48
90171-14037-00 Nut, Castle (29U) |
90171-14037-00 |
from US $5.64 |
||
|
49
|
49
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
50
|
50
1UY-25388-00-00 Puller, Chain 1 |
1UY-25388-00-00 |
from US $19.27 |
||
|
51
|
51
90101-08647-00 Bolt |
90101-08647-00 |
from US $2.69 |
||
|
52
|
52
95337-08600-00 Nut |
95337-08600-00 |
from US $1.13 |
||
|
53
|
53
94581-18074-00 Chain (Did520V 74L)74L |
94581-18074-00 |
from US $89.75 |
||
| replacement | |||||
|
53
|
53
945-82020-74-00 Chain74L |
945-82020-74-00 |
from US $101.79 |
||
