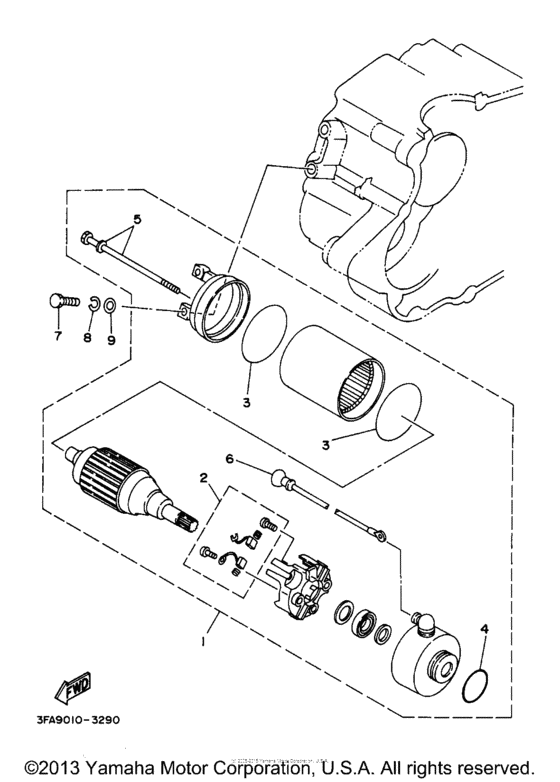

Starting motor Diagram Yamaha BREEZE
- Model code
- YFA1J
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-81800-01-00 Starting Motor Assy |
3FA-81800-01-00 |
from US $438.55 |
||
| replacement | |||||
|
1
|
1
3FA-81890-00-00 Starting Motor Assy |
3FA-81890-00-00 |
from US $396.74 |
||
|
2
|
2
50M-81801-M0-00 Brush Set |
50M-81801-M0-00 |
from US $12.18 |
||
| replacement | |||||
|
2
|
2
3C5-81801-00-00 Brush Set |
3C5-81801-00-00 |
from US $8.94 |
||
|
3
|
3
93210-55669-00 O-Ring |
93210-55669-00 |
from US $2.55 |
||
|
4
|
4
93210-25711-00 O-Ring |
93210-25711-00 |
from US $9.99 |
||
|
5
|
5
3FA-81828-00-00 Screw 2 |
3FA-81828-00-00 |
US $7.61 |
||
|
6
|
6
3FA-8183G-00-00 Cord Comp |
3FA-8183G-00-00 |
from US $28.90 |
||
|
7
|
7
97007-06025-00 Bolt |
97007-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
8
|
8
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
9
|
9
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
