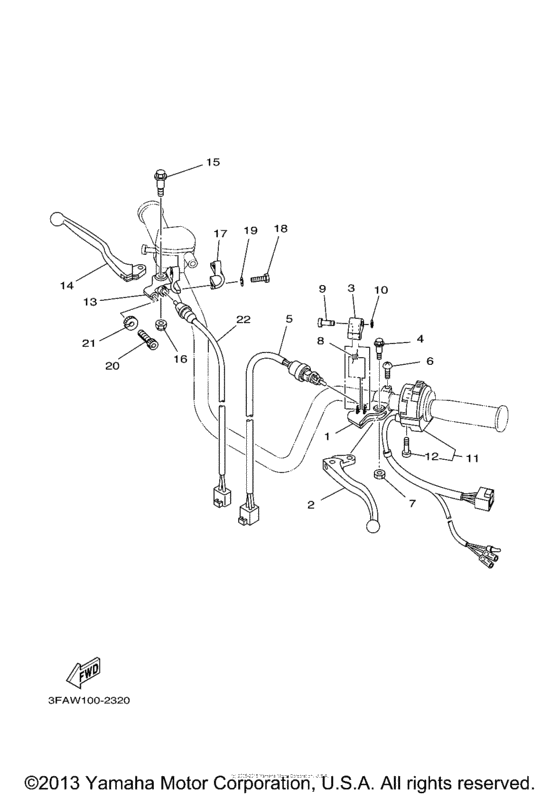

Handle switch & lever Diagram Yamaha BREEZE
- Model code
- YFA1R
- Engine Capacity
- 124
- Year
- 2003
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-82911-01-00 Holder, Lever 1 |
3FA-82911-01-00 |
from US $38.12 |
||
|
2
|
2
2HT-83912-00-00 Lever 1 |
2HT-83912-00-00 |
US $21.39 |
||
| replacement | |||||
|
2
|
2
2HT-83912-01-00 Lever 1 |
2HT-83912-01-00 |
from US $18.52 |
||
|
3
|
3
3FA-83965-00-00 Lever, Lock |
3FA-83965-00-00 |
from US $14.17 |
||
|
4
|
4
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.26 |
||
|
5
|
5
3FA-83980-02-00 Front Stop Switch Assy |
3FA-83980-02-00 |
from US $51.81 |
||
| replacement | |||||
|
5
|
5
3FA-83980-03-00 Front Stop Switch Assy |
3FA-83980-03-00 |
from US $51.81 |
||
|
6
|
6
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
7
|
7
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
8
|
8
3FA-83966-00-00 Spring, Return |
3FA-83966-00-00 |
from US $3.26 |
||
|
9
|
9
3FA-83967-00-00 Pin, Lock 1 |
3FA-83967-00-00 |
from US $4.53 |
||
|
10
|
10
3FA-26466-00-00 Ring, Snap |
3FA-26466-00-00 |
from US $2.69 |
||
|
11
|
11
3FA-83973-20-00 Switch, Handle 3 |
3FA-83973-20-00 |
US $173.75 |
||
| replacement | |||||
|
11
|
11
3FA-83973-29-00 Switch, Handle 3 |
3FA-83973-29-00 |
US $173.75 |
||
|
12
|
12
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
12
|
12
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
13
|
13
3JN-82921-00-00 Holder, Lever 2 |
3JN-82921-00-00 |
from US $30.46 |
||
|
14
|
14
59V-83922-00-00 Lever 2 |
59V-83922-00-00 |
from US $23.09 |
||
|
15
|
15
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.26 |
||
|
16
|
16
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
17
|
17
2XJ-82913-00-00 Holder, Lever Lower 1 |
2XJ-82913-00-00 |
from US $13.46 |
||
|
18
|
18
97027-06025-00 Bolt, Hexagon |
97027-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
19
|
19
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
20
|
20
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
20
|
20
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
21
|
21
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
21
|
21
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
22
|
22
3FA-83980-10-00 Front Stop Switch Assy |
3FA-83980-10-00 |
from US $39.02 |
||
