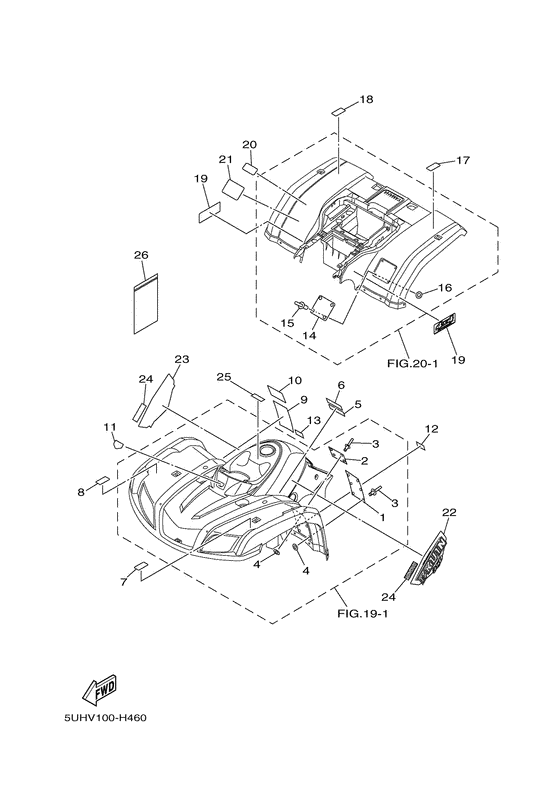

Emblem & label 1 Diagram Yamaha BRUIN Bruin 350 4WD
- Model code
- 5UHV
- Engine Capacity
- 348
- Year
- 2009
- Sales region
- Canada (010)
- Colour
- Black Metallic J (SMJ; 0906)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Bruin 350 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4XE-F1568-00-00 Label, WarningEnglish |
4XE-F1568-00-00 |
from US $25 |
||
| replacement | |||||
|
01
|
01
BVG-F1568-00-00 Label, WarningEnglish |
BVG-F1568-00-00 |
US $20.30 |
||
|
02
|
02
1P0-F816L-00-00 Label, CautionEnglish |
1P0-F816L-00-00 |
US $10.66 |
||
| replacement | |||||
|
02
|
02
1P0-F816L-01-00 Label, Warning AgeEnglish |
1P0-F816L-01-00 |
from US $10.75 |
||
|
03
|
03
4XE-F1539-10-00 Rivet |
4XE-F1539-10-00 |
from US $1.84 |
||
| replacement | |||||
|
03
|
03
BLT-F1539-00-00 RIVET |
BLT-F1539-00-00 |
from US $1.66 |
||
|
04
|
04
4XE-F1549-00-00 Washer, Fender Mold |
4XE-F1549-00-00 |
from US $2.36 |
||
|
05
|
05
5TE-F151E-00-00 Label 2English |
5TE-F151E-00-00 |
US $4.36 |
||
|
06
|
06
5TE-F151E-10-00 Label 2French |
5TE-F151E-10-00 |
US $138.74 |
||
|
07
|
07
5ND-F4877-50-00 Label, CautionEnglish |
5ND-F4877-50-00 |
US $6.25 |
||
|
08
|
08
5ND-F4877-40-00 Label, CautionFrench |
5ND-F4877-40-00 |
US $6.57 |
||
|
09
|
09
4XE-F1568-20-00 Label, WarningFrench |
4XE-F1568-20-00 |
US $41.49 |
||
|
10
|
10
1P0-F816L-10-00 Label, Warning AgeFrench |
1P0-F816L-10-00 |
US $15.80 |
||
| replacements | |||||
|
10
|
10
1P0-F816L-11-00 Label, Warning AgeFrench |
1P0-F816L-11-00 |
US $7 |
||
|
10
|
10
1P0-F816L-12-00 French |
1P0-F816L-12-00 |
US $9.61 |
||
|
11
|
11
3B4-26232-01-00 Emblem 3D |
3B4-26232-01-00 |
from US $35.28 |
||
|
12
|
12
37S-F817J-00-00 Plate, Ansi Svia |
37S-F817J-00-00 |
US $4.39 |
||
|
13
|
13
37S-F817J-10-00 Plate, Ansi Svia |
37S-F817J-10-00 |
US $2.16 |
||
|
14
|
14
5FU-F816M-20-00 Label, CautionEnglish |
5FU-F816M-20-00 |
US $17.64 |
||
|
15
|
15
4XE-F1539-10-00 Rivet |
4XE-F1539-10-00 |
from US $1.84 |
||
| replacement | |||||
|
15
|
15
BLT-F1539-00-00 RIVET |
BLT-F1539-00-00 |
from US $1.66 |
||
|
16
|
16
4XE-F1549-00-00 Washer, Fender Mold |
4XE-F1549-00-00 |
from US $2.36 |
||
|
17
|
17
5ND-F4897-50-00 EmblemEnglish |
5ND-F4897-50-00 |
US $14.40 |
||
|
18
|
18
5ND-F4897-40-00 EmblemFrench |
5ND-F4897-40-00 |
US $14.18 |
||
|
19
|
19
5UH-F163G-40-00
Emblem 1
|
5UH-F163G-40-00 |
— | ||
|
20
|
20
4XE-F151H-10-00 Label 5French |
4XE-F151H-10-00 |
US $17.06 |
||
|
21
|
21
5FU-F816M-10-00 Label, Warning Tire & LoadFrench |
5FU-F816M-10-00 |
US $13.91 |
||
|
22
|
22
5UH-F1781-M0-00 Emblem 1 |
5UH-F1781-M0-00 |
US $43.02 |
||
|
23
|
23
5UH-F1782-M0-00 Emblem 2 |
5UH-F1782-M0-00 |
US $43.02 |
||
|
24
|
24
5UH-F173B-20-00 Emblem 3D |
5UH-F173B-20-00 |
US $31.14 |
||
| replacement | |||||
|
24
|
24
5UH-F173B-21-00 Emblem 3D |
5UH-F173B-21-00 |
from US $51.77 |
||
|
25
|
25
4XE-F416E-00-00 Label, Caution Canada |
4XE-F416E-00-00 |
US $30.56 |
||
|
26
|
26
1P0-F8186-01-00 Pouch |
1P0-F8186-01-00 |
US $3.83 |
||
