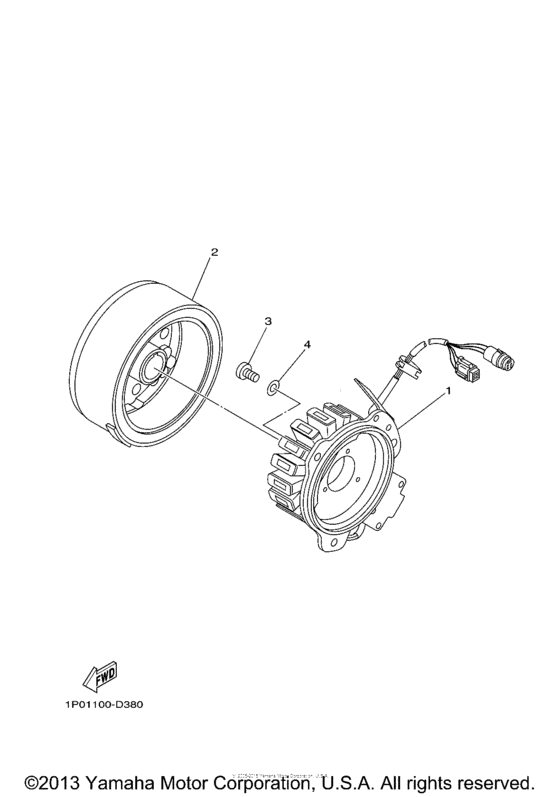

Generator Diagram Yamaha BRUIN Bruin 250
- Model code
- YFM250BT
- Engine Capacity
- 230
- Year
- 2005
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bruin 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1P0-H1410-00-00
Stator Assy
|
1P0-H1410-00-00 |
— | ||
|
2
|
2
1P0-H1450-00-00
Rotor Assy
|
1P0-H1450-00-00 |
— | ||
|
3
|
3
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
4
|
4
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
