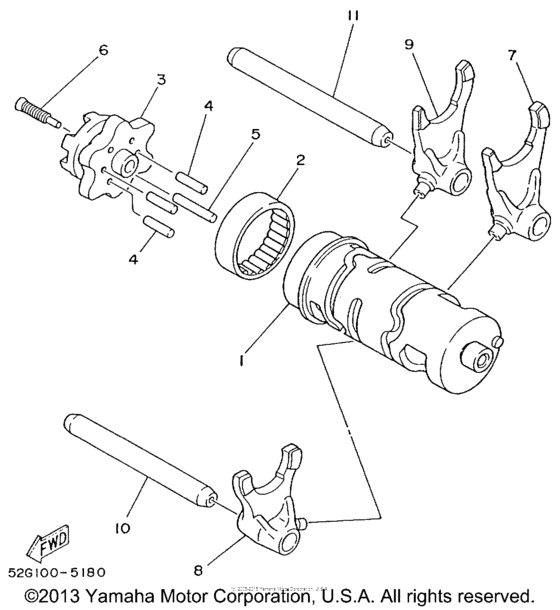

Shift Cam & Fork Diagram Yamaha BRUIN Bruin 250
- Model code
- YFM250BT
- Engine Capacity
- 230
- Year
- 2005
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bruin 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52G-18540-01-00 Shift Cam Assy |
52G-18540-01-00 |
from US $95.19 |
||
|
2
|
2
93315-23607-00 Bearing |
93315-23607-00 |
from US $10.78 |
||
|
3
|
3
5XG-E8185-00-00 Segment |
5XG-E8185-00-00 |
US $9.49 |
||
|
4
|
4
93604-16092-00 Pin, Dowel |
93604-16092-00 |
from US $1.56 |
||
|
5
|
5
93604-20156-00 Pin, Dowel |
93604-20156-00 |
from US $1.56 |
||
|
6
|
6
90151-06013-00 Screw, Countersunk |
90151-06013-00 |
from US $1.70 |
||
|
7
|
7
5XG-E8513-00-00 Fork, Shift 3YMUS |
5XG-E8513-00-00 |
US $16.92 |
||
|
8
|
8
5XG-E8511-00-00 Fork, Shift 1YMUS |
5XG-E8511-00-00 |
US $16.43 |
||
|
9
|
9
5XG-E8512-00-00 Fork, Shift 2YMUS |
5XG-E8512-00-00 |
US $15.80 |
||
|
10
|
10
5XG-E8531-00-00 Bar, Shift Fork Guide 1YMUS L=90MM |
5XG-E8531-00-00 |
US $4.07 |
||
|
11
|
11
5XG-E8535-00-00 Bar, Shift Fork Guide 2YMUS L=106.5MM |
5XG-E8535-00-00 |
US $4.66 |
