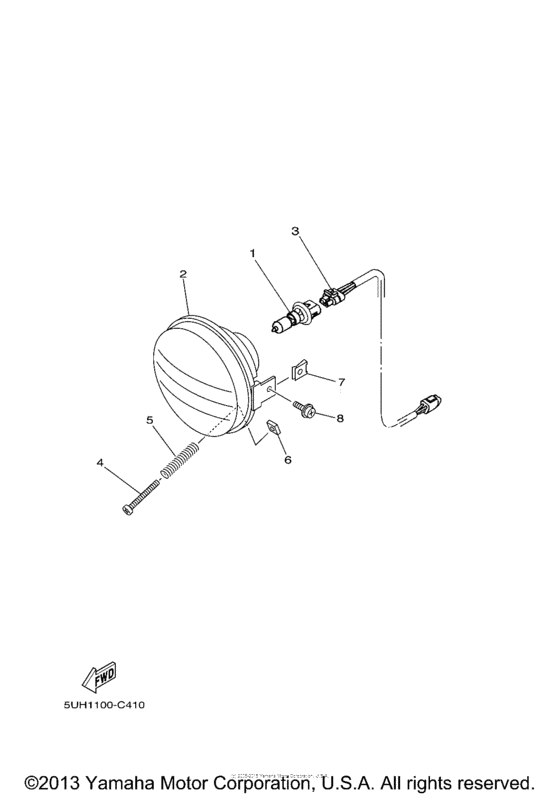

Headlight Diagram Yamaha BRUIN Bruin 350 2WD
- Model code
- YFM35BAV
- Engine Capacity
- 348
- Year
- 2006
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bruin 350 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FU-H4314-00-00
Bulb (12V-30/30W)
12V-30/30W |
5FU-H4314-00-00 |
— | ||
| replacement | |||||
|
1
|
1
4KB-84314-01-00 Bulb (12V-30/30W)12V-30/30W |
4KB-84314-01-00 |
from US $21.22 |
||
|
1
|
1
5FU-H4314-10-00
Headlight Assy
12V-30/30W 10 TYPE ARE INTERCHANGEABLE AS A SET |
5FU-H4314-10-00 |
— | ||
| replacement | |||||
|
1
|
1
5KM-84300-20-00 SOCKET CORD ASSY 112V-30/30W 10 TYPE ARE INTERCHANGEABLE AS A SET |
5KM-84300-20-00 |
from US $60.73 |
||
|
2
|
2
5FU-H4320-00-00 Headlight Assy |
5FU-H4320-00-00 |
US $70.32 |
||
|
2
|
2
5FU-H4320-10-00 Lens Assy10 TYPE ARE INTERCHANGEABLE AS A SET |
5FU-H4320-10-00 |
US $102.69 |
||
|
3
|
3
5FU-H4340-00-00
Socket Cord Assy 1
|
5FU-H4340-00-00 |
— | ||
| replacement | |||||
|
3
|
3
5KM-84300-20-00 SOCKET CORD ASSY 1 |
5KM-84300-20-00 |
from US $60.73 |
||
|
3
|
3
5FU-H4340-10-00 Socket Cord Assy 110 TYPE ARE INTERCHANGEABLE AS A SET |
5FU-H4340-10-00 |
US $45.40 |
||
|
4
|
4
98507-03540-00 Screw, Pan Head |
98507-03540-00 |
from US $1.36 |
||
|
5
|
5
2GU-84332-00-00 Spring, Screw |
2GU-84332-00-00 |
from US $1.70 |
||
|
6
|
6
2GU-84334-00-00 Nut, Adjusting |
2GU-84334-00-00 |
from US $1.70 |
||
|
7
|
7
90183-05008-00 Nut, Spring |
90183-05008-00 |
from US $2.55 |
||
|
8
|
8
90150-05802-00 Screw, Bind |
90150-05802-00 |
from US $1.26 |
||
| replacement | |||||
|
8
|
8
98902-05016-00 Screw, Bind (8K2) |
98902-05016-00 |
from US $1.36 |
||
