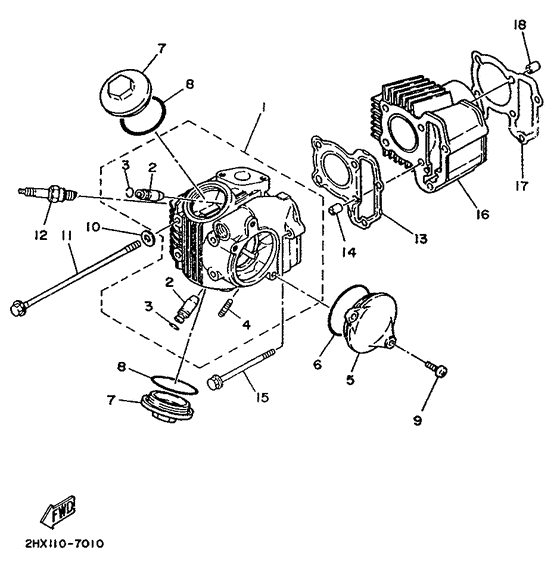

Cylinder Diagram Yamaha CHAMP
- Model code
- 3GB4
- Engine Capacity
- 100
- Year
- 1990
- Sales region
- Europe (General) (999)
- Colour
- Solid Fine Silver (SFS; 000A)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Champ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2HX-11110-00-00
Cylinder Head Assembly
|
2HX-11110-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
22F-11134-10-00 Guide, Valve 2 |
22F-11134-10-00 |
from US $35.72 |
||
|
03
|
03
93440-10109-00 Circlip |
93440-10109-00 |
from US $1.34 |
||
|
04
|
04
22F-14651-00-00 Bolt, Stud |
22F-14651-00-00 |
from US $3.54 |
||
|
05
|
05
50M-11185-01-00 Cover, Cylinder Head Side 3 |
50M-11185-01-00 |
from US $19.06 |
||
| replacement | |||||
|
05
|
05
50M-11185-10-00 Cover, Cylinder Head Side 3 |
50M-11185-10-00 |
from US $13.10 |
||
|
06
|
06
93210-63556-00 O-Ring |
93210-63556-00 |
from US $2.32 |
||
|
07
|
07
22F-11186-00-00 Cover, Cylinder Head Side 2 |
22F-11186-00-00 |
from US $12.89 |
||
| replacement | |||||
|
07
|
07
22F-11186-10-00 Cover, Cylinder Head Side 2 |
22F-11186-10-00 |
from US $10.26 |
||
|
08
|
08
93210-44704-00 O-Ring |
93210-44704-00 |
from US $1.42 |
||
|
09
|
09
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
09
|
09
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
10
|
10
90201-072L3-00
Washer, Plate
|
90201-072L3-00 |
— | ||
|
11
|
11
90105-07458-00
Bolt, Flange
|
90105-07458-00 |
— | ||
|
12
|
12
94701-00250-00 Plug, Spark |
94701-00250-00 |
US $6.30 |
||
| replacement | |||||
|
12
|
12
NGK-CR7HS-00-00
Plug Spark
|
NGK-CR7HS-00-00 |
— | ||
|
13
|
13
2HX-11181-00-00 Gasket, Cylinder Head 1 |
2HX-11181-00-00 |
from US $17.78 |
||
|
14
|
14
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
14
|
14
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
15
|
15
95021-06085-00 Bolt, Flange |
95021-06085-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
95027-06085-00 Bolt, Flange |
95027-06085-00 |
from US $1.56 |
||
|
16
|
16
2HX-11311-00-00
Cylinder 1
|
2HX-11311-00-00 |
— | ||
|
17
|
17
2HX-11351-00-00 Gasket, Cylinder |
2HX-11351-00-00 |
from US $7.83 |
||
| replacement | |||||
|
17
|
17
3GB-11351-00-00 Gasket, Cylinder (2Hx-11351-00) |
3GB-11351-00-00 |
from US $8.78 |
||
|
18
|
18
91809-14004-00
Pin, Dowel
|
91809-14004-00 |
— | ||
