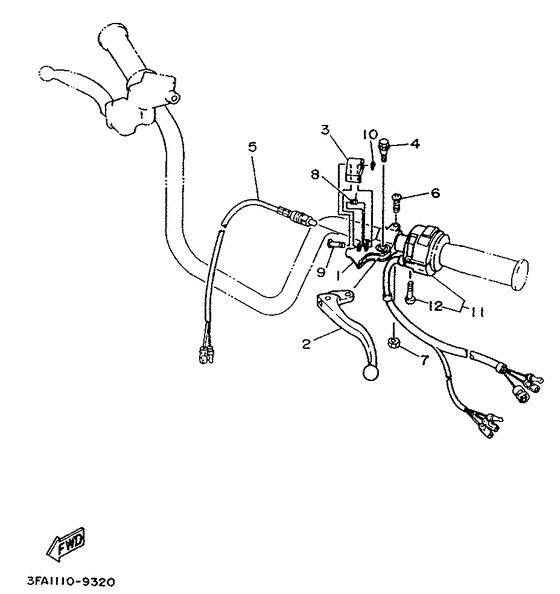

Handle switch & lever Diagram Yamaha CHAMP
- Model code
- 3GB7
- Engine Capacity
- 100
- Year
- 1991
- Sales region
- Europe (General) (999)
- Colour
- White (WW; 0036)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Champ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3FA-82911-00-00 Holder, Lever 1 |
3FA-82911-00-00 |
from US $30.13 |
||
| replacement | |||||
|
01
|
01
3FA-82911-01-00 Holder, Lever 1 |
3FA-82911-01-00 |
from US $38.12 |
||
|
02
|
02
2FW-83912-00-00 Lever 1 |
2FW-83912-00-00 |
from US $21.68 |
||
| replacement | |||||
|
02
|
02
1NV-83912-02-00 Lever, Left |
1NV-83912-02-00 |
from US $17.48 |
||
|
03
|
03
3FA-83965-00-00 Lever, Lock |
3FA-83965-00-00 |
from US $14.17 |
||
|
04
|
04
90109-06798-00 Bolt |
90109-06798-00 |
from US $3.40 |
||
| replacement | |||||
|
04
|
04
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.26 |
||
|
05
|
05
1YW-83980-00-00 Front Stop Switch Assy |
1YW-83980-00-00 |
from US $60.38 |
||
|
06
|
06
92506-06020-00 Screw |
92506-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
06
|
06
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
07
|
07
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
07
|
07
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
08
|
08
3FA-83966-00-00 Spring, Return |
3FA-83966-00-00 |
from US $3.26 |
||
|
09
|
09
3FA-83967-00-00 Pin, Lock 1 |
3FA-83967-00-00 |
from US $4.53 |
||
|
10
|
10
3FA-26466-00-00 Ring, Snap |
3FA-26466-00-00 |
from US $2.69 |
||
|
11
|
11
2HX-83973-01-00 Switch, Handle 3 |
2HX-83973-01-00 |
from US $232.11 |
||
| replacements | |||||
|
11
|
11
2HX-83973-09-00 CYLINDER HEAD ASY |
2HX-83973-09-00 |
US $293.15 |
||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
12
|
12
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
