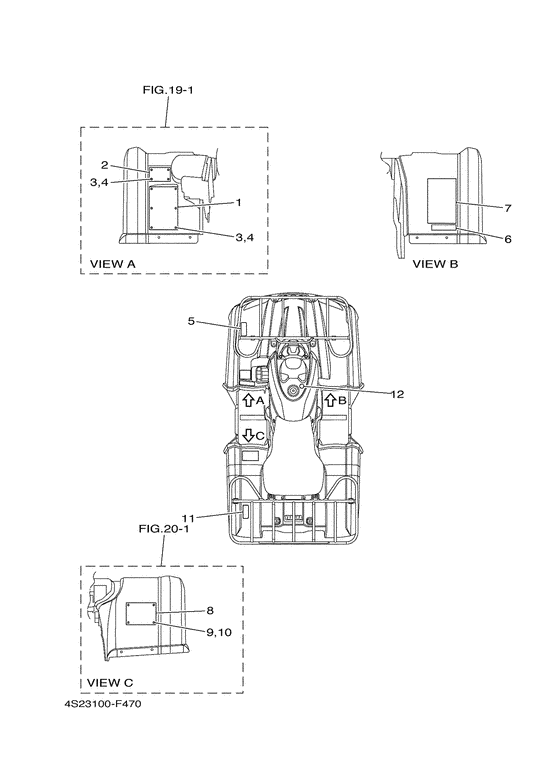

Emblem & label 2 Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD Hunter
- Model code
- 4S23
- Engine Capacity
- 348
- Year
- 2007
- Sales region
- Europe (General) (010)
- Colour
- Yamaha Black (YB; 0033)
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4XE-F1568-50-00 Label, Warning |
4XE-F1568-50-00 |
US $19.67 |
||
| replacements | |||||
|
01
|
01
1P0-F816R-00-00 Label, Warning General Info |
1P0-F816R-00-00 |
US $9.43 |
||
|
01
|
01
BVG-F816R-00-00 Label, Warning Gen |
BVG-F816R-00-00 |
US $23.42 |
||
|
02
|
02
4XE-F415A-20-00 Label, Caution |
4XE-F415A-20-00 |
US $127.82 |
||
| replacement | |||||
|
02
|
02
1P0-F816L-20-00 Label, Warning Age |
1P0-F816L-20-00 |
US $127.82 |
||
|
03
|
03
4XE-F1539-10-00 Rivet |
4XE-F1539-10-00 |
from US $1.84 |
||
| replacement | |||||
|
03
|
03
BLT-F1539-00-00 RIVET |
BLT-F1539-00-00 |
from US $1.66 |
||
|
04
|
04
4XE-F1549-00-00 Washer, Fender Mold |
4XE-F1549-00-00 |
from US $2.32 |
||
|
05
|
05
5ND-F4877-20-00 Label, CautionEnglish |
5ND-F4877-20-00 |
US $13.45 |
||
|
06
|
06
4S2-F155A-00-00 Mark, Ce |
4S2-F155A-00-00 |
US $1.60 |
||
|
07
|
07
5ND-F1558-20-00 Label, Warning 2 |
5ND-F1558-20-00 |
US $9.94 |
||
|
08
|
08
5ND-F1696-00-00 Label, Caution |
5ND-F1696-00-00 |
US $20.81 |
||
| replacement | |||||
|
08
|
08
5FU-F816M-M0-00 Label, Warning Tire & Load |
5FU-F816M-M0-00 |
US $42.07 |
||
|
09
|
09
4XE-F1539-10-00 Rivet |
4XE-F1539-10-00 |
from US $1.84 |
||
| replacement | |||||
|
09
|
09
BLT-F1539-00-00 RIVET |
BLT-F1539-00-00 |
from US $1.66 |
||
|
10
|
10
4XE-F1549-00-00 Washer, Fender Mold |
4XE-F1549-00-00 |
from US $2.32 |
||
|
11
|
11
5ND-F4897-20-00 EmblemEnglish |
5ND-F4897-20-00 |
US $16.25 |
||
|
12
|
12
4XE-F415E-10-00 Label, Caution |
4XE-F415E-10-00 |
US $20.88 |
||
