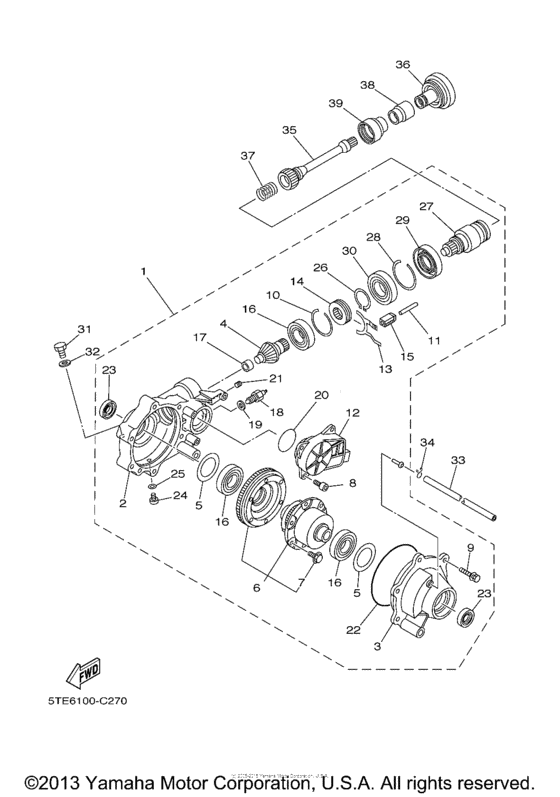

Front differential Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD Hunter
- Model code
- YFM35FGX-B
- Engine Capacity
- 348
- Year
- 2008
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GH-46160-04-00 Front Axle Gear Case Comp |
5GH-46160-04-00 |
from US $1,982.72 |
||
| replacements | |||||
|
1
|
1
5GH-46160-05-00 Front Axle Gear Case Comp |
5GH-46160-05-00 |
from US $2,123.33 |
||
|
1
|
1
5GH-46160-06-00 FRONT AXLE GEAR CASE COMP |
5GH-46160-06-00 |
from US $2,090.86 |
||
|
2
|
2
5GH-46161-01-00 Housing, Shaft Drive 2 |
5GH-46161-01-00 |
from US $354.64 |
||
|
3
|
3
5GH-46162-01-00 Housing, Bearing 2 |
5GH-46162-01-00 |
from US $163.03 |
||
|
4
|
4
5GH-46141-01-00 Pinion, Drive 2 |
5GH-46141-01-00 |
from US $203 |
||
|
5
|
5
4WV-46119-01-00 Shim, Thrust (0.1T)0.1T UR |
4WV-46119-01-00 |
from US $7.79 |
||
|
5
|
5
4WV-46119-11-00 Shim, Thrust (0.2T)0.2T UR |
4WV-46119-11-00 |
from US $7.79 |
||
|
5
|
5
4WV-46119-21-00 Shim, Thrust (0.3T)0.3T UR |
4WV-46119-21-00 |
from US $7.79 |
||
|
5
|
5
4WV-46119-31-00 Shim, Thrust (0.4T)0.4T UR |
4WV-46119-31-00 |
from US $7.79 |
||
|
5
|
5
4WV-46119-51-00 Shim, Thrust (1.0T)1.0T UR |
4WV-46119-51-00 |
from US $7.79 |
||
|
5
|
5
4WV-46119-41-00 Shim, Thrust (0.5T)0.5T UR |
4WV-46119-41-00 |
from US $7.79 |
||
|
6
|
6
5GH-46470-03-00 Limited Slip Diff. Assy |
5GH-46470-03-00 |
from US $1,148.18 |
||
| replacement | |||||
|
6
|
6
5GH-46470-04-00 Limited Slip Diff. Assy |
5GH-46470-04-00 |
from US $972.96 |
||
|
7
|
7
4WV-46155-00-00 Bolt 1 |
4WV-46155-00-00 |
from US $7.51 |
||
|
8
|
8
91317-08020-00 Bolt |
91317-08020-00 |
from US $1.07 |
||
|
9
|
9
4WV-46159-00-00 Bolt 3 |
4WV-46159-00-00 |
from US $4.36 |
||
|
10
|
10
4WV-46143-00-00 Ring,hole Snap 2 |
4WV-46143-00-00 |
from US $8.78 |
||
|
11
|
11
5GH-18318-00-00 Shaft, Shifter |
5GH-18318-00-00 |
from US $8.64 |
||
|
12
|
12
5GH-4616A-02-00 Servo Motor Comp |
5GH-4616A-02-00 |
from US $650.76 |
||
|
13
|
13
5GH-18514-01-00 Fork, Shift 4 |
5GH-18514-01-00 |
from US $19.52 |
||
|
14
|
14
4WV-46441-00-00 Clutch,driven |
4WV-46441-00-00 |
from US $58.99 |
||
|
15
|
15
5GH-18319-00-00 Shaft 2 |
5GH-18319-00-00 |
from US $72.42 |
||
|
16
|
16
4WV-46165-00-00 Bearing 2 |
4WV-46165-00-00 |
from US $46.28 |
||
|
17
|
17
4WV-46167-00-00 Bearing 4 |
4WV-46167-00-00 |
from US $23.80 |
||
|
18
|
18
3GD-82540-11-00 Neutral Switch Assy |
3GD-82540-11-00 |
from US $20.84 |
||
|
19
|
19
4WV-46132-00-00 Gasket 1 |
4WV-46132-00-00 |
from US $2.98 |
||
|
20
|
20
93210-50768-00 O-Ring |
93210-50768-00 |
from US $3.40 |
||
|
21
|
21
90113-08004-00 Bolt, Set |
90113-08004-00 |
from US $7.51 |
||
|
22
|
22
93211-40040-00 O-Ring |
93211-40040-00 |
from US $10.91 |
||
|
23
|
23
93102-24034-00 Seal, Oil 1 |
93102-24034-00 |
from US $15.79 |
||
| replacement | |||||
|
23
|
23
3B4-46163-00-00 Seal,oil 1 |
3B4-46163-00-00 |
from US $13.56 |
||
|
24
|
24
90340-10001-00 Plug, Straight Screw |
90340-10001-00 |
from US $4.39 |
||
|
25
|
25
90430-10003-00 Gasket |
90430-10003-00 |
from US $2.41 |
||
|
26
|
26
93450-44141-00 Circlip |
93450-44141-00 |
from US $6.44 |
||
|
27
|
27
5GH-46126-01-00 Coupling |
5GH-46126-01-00 |
from US $180.99 |
||
|
28
|
28
93450-71142-00 Circlip |
93450-71142-00 |
from US $8.36 |
||
|
29
|
29
93102-50030-00 Seal, Oil 1 |
93102-50030-00 |
from US $26.78 |
||
| replacement | |||||
|
29
|
29
5TE-46163-00-00 Seal,oil 1Seal,oil 1 |
5TE-46163-00-00 |
from US $25.64 |
||
|
30
|
30
933-16008-01-00 Bearing |
933-16008-01-00 |
from US $37.04 |
||
|
31
|
31
90340-14029-00 Plug, Straight Screw |
90340-14029-00 |
from US $2.32 |
||
|
32
|
32
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
33
|
33
90445-07809-00 Hose (L750) |
90445-07809-00 |
US $10.55 |
||
|
34
|
34
90467-07029-00 Clip |
90467-07029-00 |
from US $1.70 |
||
|
35
|
35
5TE-G6173-10-00 Shaft, Drive 2 |
5TE-G6173-10-00 |
from US $98.15 |
||
|
36
|
36
5GH-46123-00-00 Coupling, Gear |
5GH-46123-00-00 |
from US $72.74 |
||
|
37
|
37
90501-290A1-00 Spring, Compression |
90501-290A1-00 |
US $6.57 |
||
|
38
|
38
5GH-46136-00-00 Seal 1 |
5GH-46136-00-00 |
from US $4.39 |
||
|
39
|
39
5KM-46137-00-00 Seal 2 |
5KM-46137-00-00 |
from US $3.98 |
||
