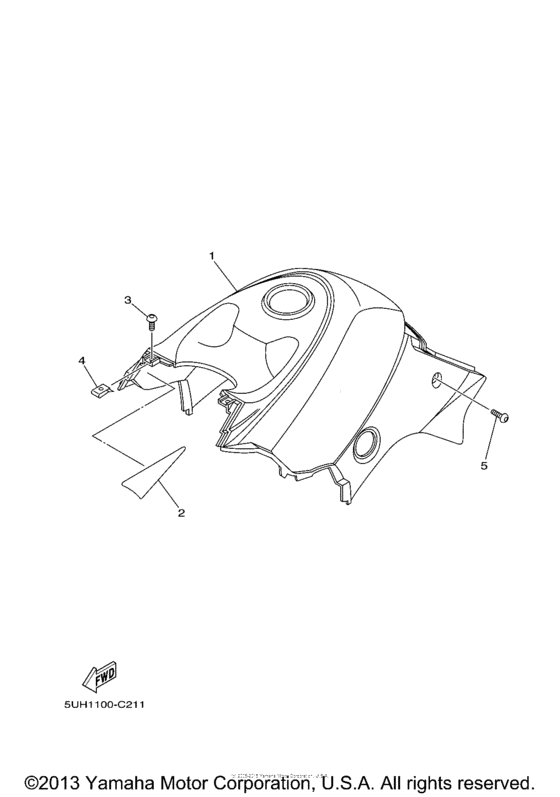

Side cover Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD Hunter
- Model code
- YFM35FGX-B
- Engine Capacity
- 348
- Year
- 2008
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD Hunter
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UH-F171C-F0-00 Top Cover Comp |
5UH-F171C-F0-00 |
US $306.79 |
||
|
2
|
2
5ND-F174M-00-00 Cloth, Protector |
5ND-F174M-00-00 |
US $9.59 |
||
|
3
|
3
90149-05299-00 Screw |
90149-05299-00 |
from US $1.56 |
||
|
4
|
4
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
5
|
5
90110-06007-00 Bolt, Hexagon Socket Head |
90110-06007-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
90110-06102-00 Bolt, Hexagon Socket Head |
90110-06102-00 |
from US $1.70 |
||
