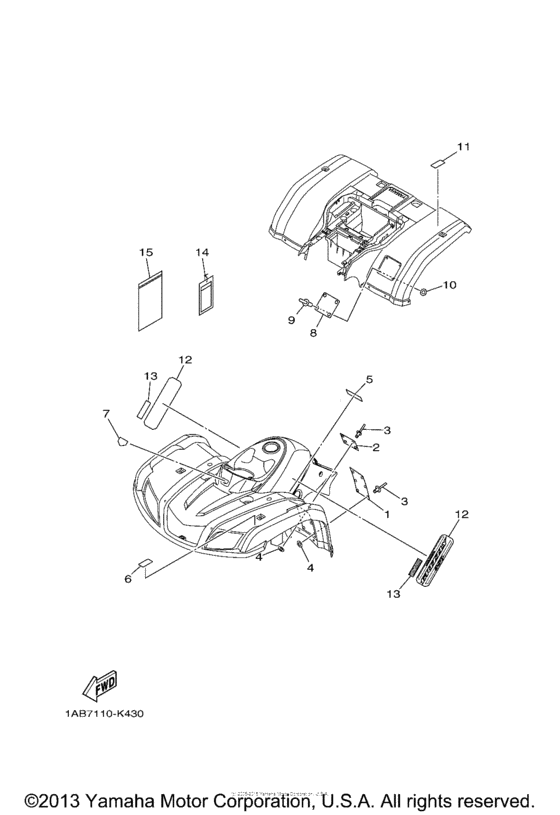

Emblem label (1) Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD
- Model code
- YFM35FGAL
- Engine Capacity
- 348
- Year
- 2011
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XE-F1568-00-00 Label, Warning |
4XE-F1568-00-00 |
from US $25 |
||
| replacement | |||||
|
1
|
1
BVG-F1568-00-00 Label, Warning |
BVG-F1568-00-00 |
US $20.30 |
||
|
2
|
2
1P0-F816L-00-00 Label, Caution |
1P0-F816L-00-00 |
US $10.66 |
||
| replacement | |||||
|
2
|
2
1P0-F816L-01-00 Label, Warning Age |
1P0-F816L-01-00 |
from US $10.75 |
||
|
3
|
3
4XE-F1539-10-00 Rivet |
4XE-F1539-10-00 |
from US $1.84 |
||
| replacement | |||||
|
3
|
3
BLT-F1539-00-00 RIVET |
BLT-F1539-00-00 |
from US $1.66 |
||
|
4
|
4
4XE-F1549-00-00 Washer, Fender Mold |
4XE-F1549-00-00 |
from US $2.32 |
||
|
5
|
5
5TE-F151E-00-00 Label 2ENGLISH |
5TE-F151E-00-00 |
US $4.36 |
||
|
6
|
6
5ND-F4877-30-00 Label, Caution |
5ND-F4877-30-00 |
US $10.33 |
||
|
7
|
7
3B4-26232-01-00 Emblem 3D3D |
3B4-26232-01-00 |
from US $35.28 |
||
|
8
|
8
5FU-F816M-00-00 Label, Warning Tire & Load |
5FU-F816M-00-00 |
US $13.72 |
||
|
9
|
9
4XE-F1539-10-00 Rivet |
4XE-F1539-10-00 |
from US $1.84 |
||
| replacement | |||||
|
9
|
9
BLT-F1539-00-00 RIVET |
BLT-F1539-00-00 |
from US $1.66 |
||
|
10
|
10
4XE-F1549-00-00 Washer, Fender Mold |
4XE-F1549-00-00 |
from US $2.32 |
||
|
11
|
11
5ND-F4897-30-00 Emblem |
5ND-F4897-30-00 |
from US $14.87 |
||
|
12
|
12
1AB-F1788-10-00 Graphic |
1AB-F1788-10-00 |
US $13.43 |
||
|
13
|
13
5UG-F153A-70-00 Emblem, Yamaha |
5UG-F153A-70-00 |
US $26.14 |
||
|
14
|
14
4XE-F819R-20-00 Tag, Warning |
4XE-F819R-20-00 |
US $8.97 |
||
| replacements | |||||
|
14
|
14
4XE-F819R-21-00 |
4XE-F819R-21-00 |
US $8.97 |
||
|
14
|
14
BVG-F819R-00-00 Tag, Warning |
BVG-F819R-00-00 |
US $9.59 |
||
|
15
|
15
1P0-F8186-01-00 Pouch |
1P0-F8186-01-00 |
US $3.83 |
||
