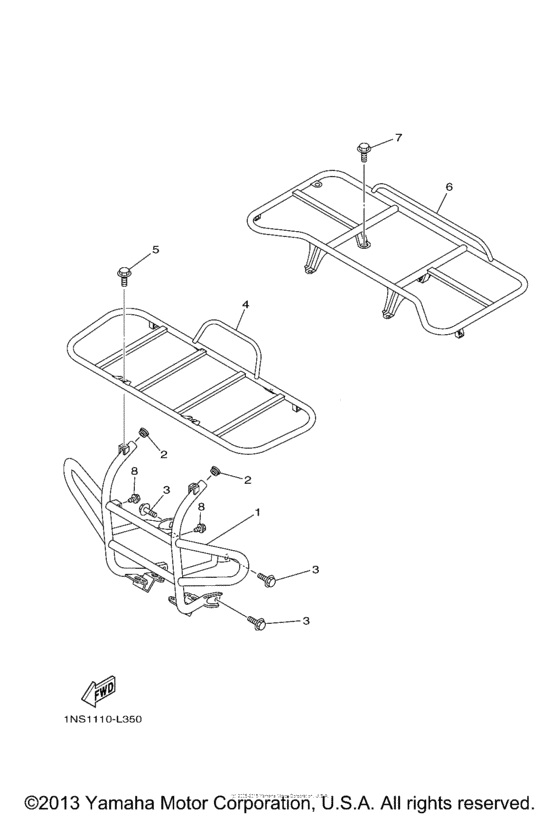

Guard Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD Hunter
- Model code
- YFM35FGHD
- Engine Capacity
- 348
- Year
- 2013
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UH-F845N-00-00 Bar, Carry Front |
5UH-F845N-00-00 |
US $370.42 |
||
| replacement | |||||
|
1
|
1
5UH-F845N-01-00 Bar, Carry Front |
5UH-F845N-01-00 |
from US $375.82 |
||
|
2
|
2
4XE-F1399-00-00 CapCap, tool box |
4XE-F1399-00-00 |
US $1.06 |
||
|
3
|
3
95812-08012-00 Bolt, Flange |
95812-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
3
|
3
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
4
|
4
1NS-F4841-00-00 Carrier, Front |
1NS-F4841-00-00 |
from US $372.92 |
||
|
5
|
5
95812-08012-00 Bolt, Flange |
95812-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
6
|
6
1NS-F4842-00-00 Carrier, Rear |
1NS-F4842-00-00 |
from US $215.15 |
||
|
7
|
7
95812-08012-00 Bolt, Flange |
95812-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
8
|
8
90119-06157-00 Bolt, With Washer |
90119-06157-00 |
from US $1.70 |
||
