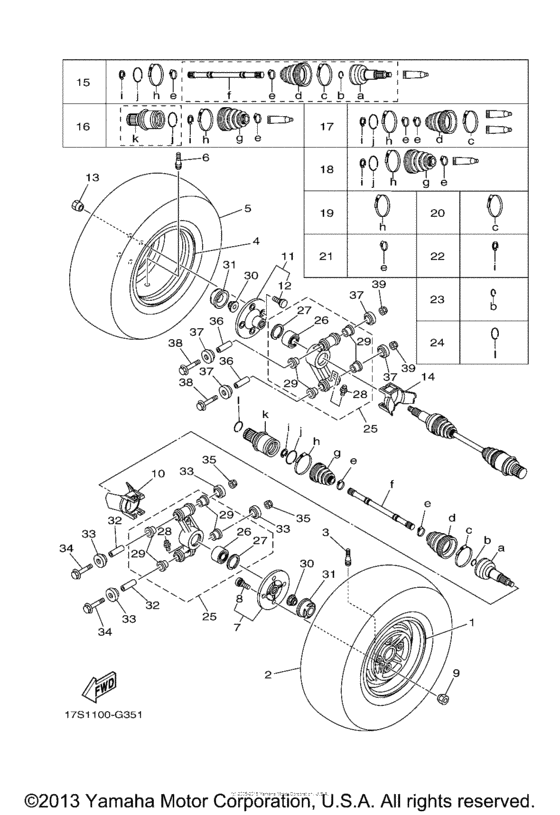

Rear wheel Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD IRS
- Model code
- YFM35FGIAL
- Engine Capacity
- 348
- Year
- 2011
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D9-F5390-10-00 Rear Wheel Comp |
1D9-F5390-10-00 |
US $235.69 |
||
|
2
|
2
941-10128-13-00 Tire (At25X10-12 Mu14Tl) |
941-10128-13-00 |
US $245.93 |
||
|
3
|
3
939-00008-13-00
Valve, Rim (Tr413)
|
939-00008-13-00 |
— | ||
| replacement | |||||
|
3
|
3
939-00008-12-00 Valve, Rim (Tr413) |
939-00008-12-00 |
from US $10.15 |
||
|
4
|
4
1D9-F5390-10-00 Rear Wheel Comp |
1D9-F5390-10-00 |
US $235.69 |
||
|
5
|
5
941-10128-13-00 Tire (At25X10-12 Mu14Tl) |
941-10128-13-00 |
US $245.93 |
||
|
6
|
6
939-00008-13-00
Valve, Rim (Tr413)
|
939-00008-13-00 |
— | ||
| replacement | |||||
|
6
|
6
939-00008-12-00 Valve, Rim (Tr413) |
939-00008-12-00 |
from US $10.15 |
||
|
7
|
7
1D9-F532E-01-00 Hub Sub-Assy |
1D9-F532E-01-00 |
US $96.82 |
||
|
8
|
8
901-14100-14-00 Bolt, Serration |
901-14100-14-00 |
from US $1.34 |
||
|
9
|
9
90179-10022-00 Nut |
90179-10022-00 |
from US $1.70 |
||
|
10
|
10
17S-F1629-00-00 Guard, Mud |
17S-F1629-00-00 |
US $10.17 |
||
|
11
|
11
1D9-F532E-01-00 Hub Sub-Assy |
1D9-F532E-01-00 |
US $96.82 |
||
|
12
|
12
901-14100-14-00 Bolt, Serration |
901-14100-14-00 |
from US $1.34 |
||
|
13
|
13
90179-10022-00 Nut |
90179-10022-00 |
from US $1.70 |
||
|
14
|
14
17S-F1629-00-00 Guard, Mud |
17S-F1629-00-00 |
US $10.17 |
||
|
15
|
15
4S2-2530U-00-00 Ball Joint Set |
4S2-2530U-00-00 |
US $683.68 |
||
|
16
|
16
4S1-2530V-00-00 Double Off Set Joint |
4S1-2530V-00-00 |
US $405.70 |
||
|
17
|
17
4S1-2530X-00-00 Boot Set (Ball Joint) |
4S1-2530X-00-00 |
US $87.17 |
||
|
18
|
18
4S1-2530Y-00-00 Boot Set(Double Offset Joint) |
4S1-2530Y-00-00 |
from US $57.34 |
||
|
19
|
19
4KB-2511H-00-00 Boot Band(Double Offsetjoint) |
4KB-2511H-00-00 |
from US $10.48 |
||
|
20
|
20
3HN-2511G-01-00 Boot Band (Ball Joint) |
3HN-2511G-01-00 |
from US $7.79 |
||
|
21
|
21
3HN-2512G-01-00 Boot Band (Small) |
3HN-2512G-01-00 |
from US $6.94 |
||
|
22
|
22
2HR-2512J-00-00 Snap Ring |
2HR-2512J-00-00 |
from US $3.40 |
||
|
23
|
23
4KB-2512H-00-00 Circlip |
4KB-2512H-00-00 |
from US $2.83 |
||
|
24
|
24
5KM-2536E-10-00 Clip, Spring |
5KM-2536E-10-00 |
from US $2.32 |
||
|
25
|
25
1D9-F532F-01-00 Rear Knuckle Assy.,2 |
1D9-F532F-01-00 |
US $299.25 |
||
|
26
|
26
933-05006-02-00 Bearing |
933-05006-02-00 |
from US $61.07 |
||
|
27
|
27
99009-55500-00 Circlip |
99009-55500-00 |
from US $3.68 |
||
|
28
|
28
93700-06009-00 Nipple, Grease |
93700-06009-00 |
from US $6.52 |
||
|
29
|
29
90381-17067-00 Bush, Solid |
90381-17067-00 |
from US $6.96 |
||
|
30
|
30
901-79200-16-00 Nut |
901-79200-16-00 |
from US $7.94 |
||
|
31
|
31
2P5-F512A-00-00 Cap, Wheel |
2P5-F512A-00-00 |
US $35.44 |
||
|
32
|
32
5KM-23448-00-00 Spacer |
5KM-23448-00-00 |
from US $15.22 |
||
|
33
|
33
2NL-23517-00-00 Cover, Thrust 1 |
2NL-23517-00-00 |
from US $16.70 |
||
| replacement | |||||
|
33
|
33
3JN-23517-00-00 Cover, Thrust 1 |
3JN-23517-00-00 |
from US $11.92 |
||
|
34
|
34
90105-10185-00 Bolt, Flange |
90105-10185-00 |
from US $4.96 |
||
|
35
|
35
90185-10012-00 Nut, Self-Locking |
90185-10012-00 |
from US $2.32 |
||
|
36
|
36
5KM-23448-00-00 Spacer |
5KM-23448-00-00 |
from US $15.22 |
||
|
37
|
37
2NL-23517-00-00 Cover, Thrust 1 |
2NL-23517-00-00 |
from US $16.70 |
||
| replacement | |||||
|
37
|
37
3JN-23517-00-00 Cover, Thrust 1 |
3JN-23517-00-00 |
from US $11.92 |
||
|
38
|
38
90105-10185-00 Bolt, Flange |
90105-10185-00 |
from US $4.96 |
||
|
39
|
39
90185-10012-00 Nut, Self-Locking |
90185-10012-00 |
from US $2.32 |
||
